Mode 3 — To cause an absolute system reset of the Dante module back to factory
•
default conditions:
With power on, press and hold the reset button for about 3 seconds until the reset
LED blinks one time (once at 3 seconds), then release and within 1 second press
Reset momentarily (< 1 second).
Following this reset, the Dante module proceeds to its normal boot sequence. This
reset:
• Restores the IP Configuration to default settings.
Clears all Dante audio channel routing.
•
• Sets the Dante device name and channel names to default.
Mode 5 — With power on, press and hold the reset button for about 9 seconds
•
until the reset LED blinks three times (once at 3 seconds, again at 6 seconds, again
at 9 seconds), then release and press Reset momentarily ( < 1 second).
Mode 5 resets the device settings while preserving Dante specific settings such as
IP configuration, routing, device name, channel names, and sampling rate.
This reset:
a. Sets mix-points to unity gain (0 dBFS) and the following connections are made.
• AT input 1 is routed to amp output 1.
AT input 2 is routed to amp output 2.
•
• AT input 1 is routed to line output 1.
• AT input 2 is routed to line output 2.
b. Unmutes amp outputs and sets to -24 dB.
c. Unmutes line and AT outputs and sets them to unity gain.
d.
Sets trim blocks to unity gain.
e. Unmutes gain blocks and sets to unity gain.
f. Removes any inserted or active DSP.
g. Unmutes all line inputs and sets them to unity gain.
h. Clears all preset and group master memory.
i.
Turns off status monitoring of unsolicited responses.
j. Enables standby timer.
k. Ensures unit will not be in standby mode.
l. The output mode will be set to 8Ω stereo.
The Reset LED flashes 3 times in quick succession during the reset.
8 AT Port with Link LED —
on page 17) Connect one RJ-45
connector to communicate with a Dante
network. The port uses the Dante protocol,
but can be configured for the AES 67
standard in Dante controller. It is one of the
ways the amplifier communicates with DSP
Configurator.
The Link LED is locked to the Dante
sync signal.
(see figure 16

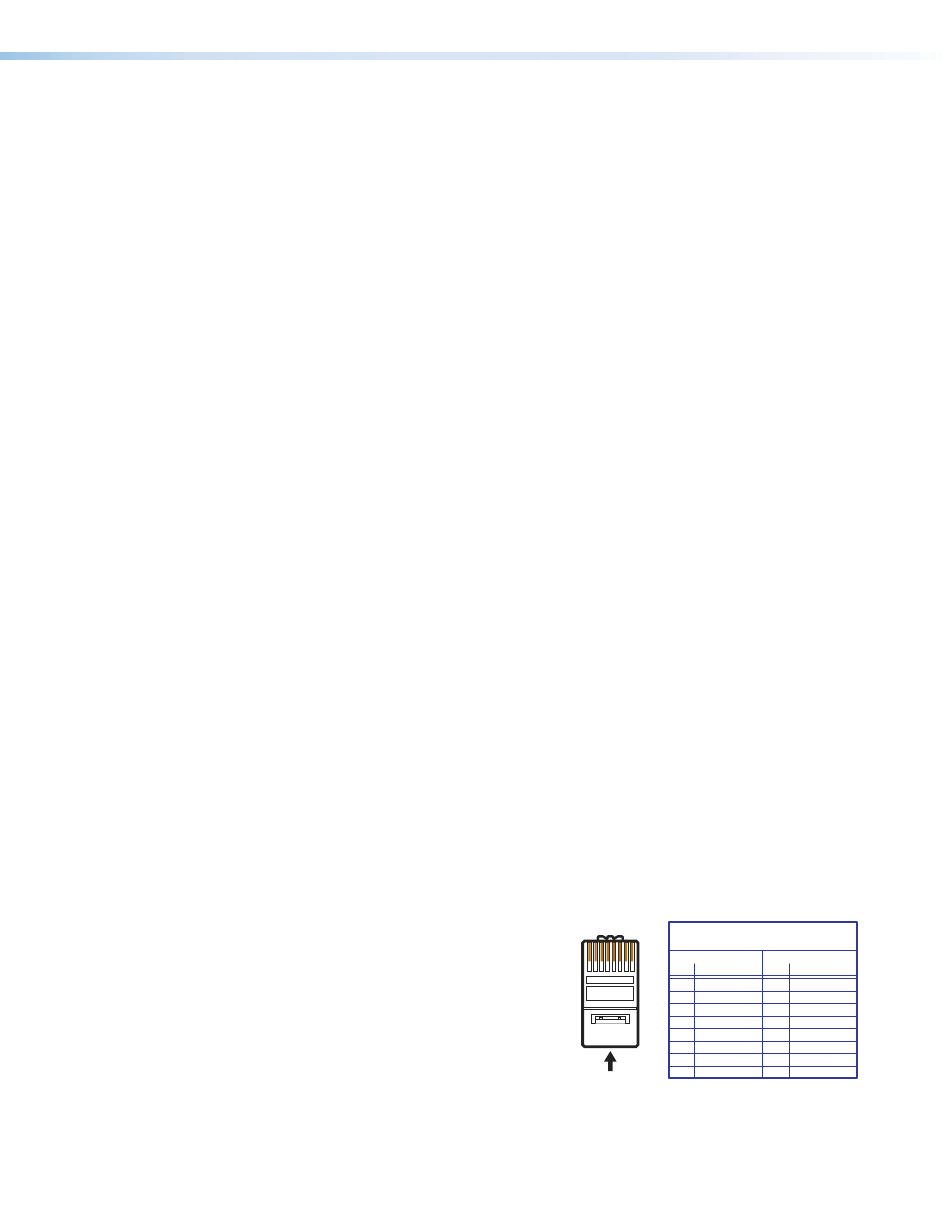

Pins:
12345678
Insert Twisted
Pair Wires
RJ-45
Connector
NetPA U 2002 SB User Guide • Operation
Crossover Cable
(for direct connection to a PC)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-green
2 orange 2 green
3 white-green 3 white-orange
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 orange
7 white-brown 7 white-brown
8 brown 8 brown
T568B T568A
A cable that is wired as TIA/EIA T568A at one
end and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
