Ducker
After inserting a ducker processor, double-click the Duck icon to open the
Ducker Configuration dialog box.
1 3
2

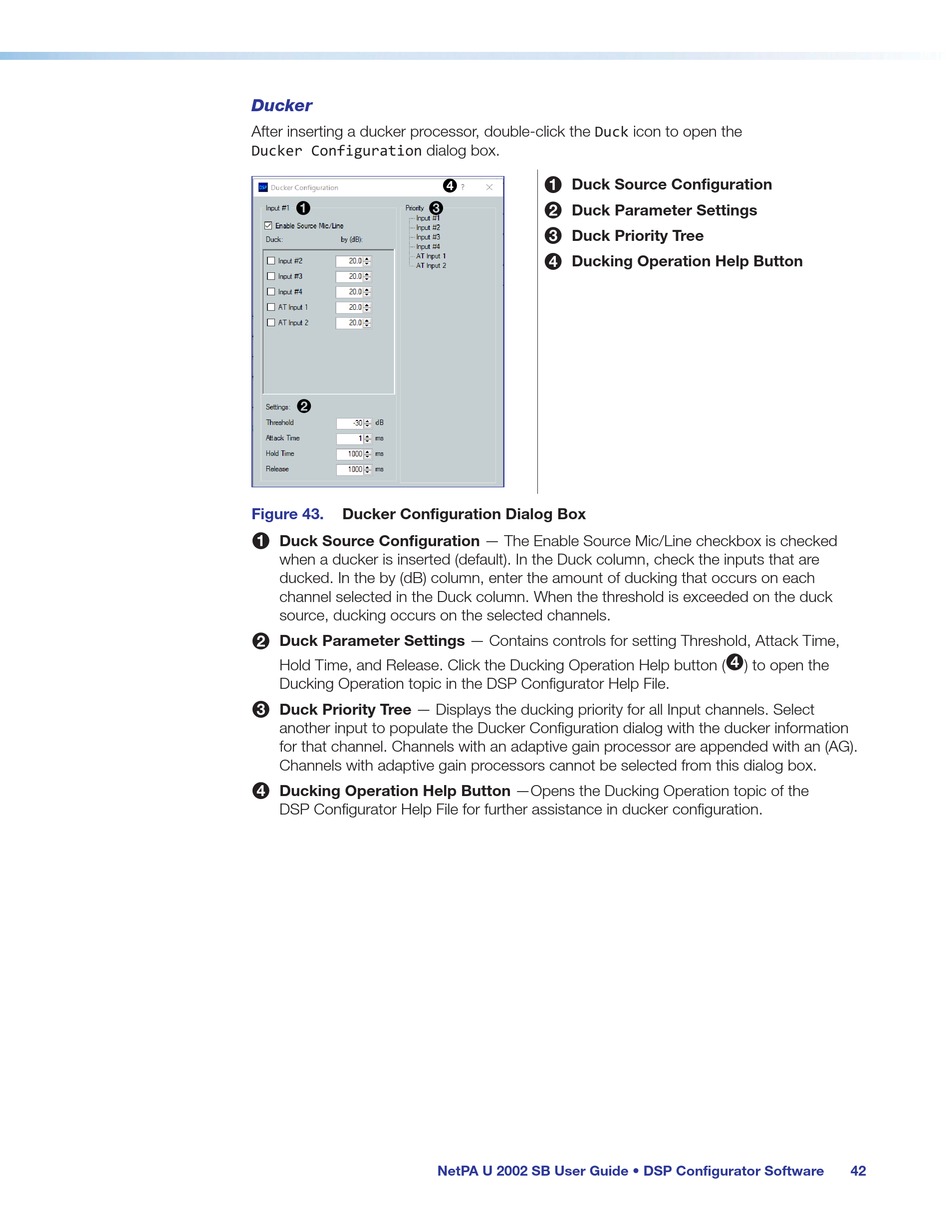

Figure 43. Ducker Configuration Dialog Box
Duck Source Configuration — The Enable Source Mic/Line checkbox is checked
1
when a ducker is inserted (default). In the Duck column, check the inputs that are
ducked. In the by (dB) column, enter the amount of ducking that occurs on each
channel selected in the Duck column. When the threshold is exceeded on the duck
source, ducking occurs on the selected channels.
Duck Parameter Settings — Contains controls for setting Threshold, Attack Time,
2
Hold Time, and Release. Click the Ducking Operation Help button (
Ducking Operation topic in the DSP Configurator Help File.
Duck Priority Tree — Displays the ducking priority for all Input channels. Select
3
another input to populate the Ducker Configuration dialog with the ducker information
for that channel. Channels with an adaptive gain processor are appended with an (AG).
Channels with adaptive gain processors cannot be selected from this dialog box.
Ducking Operation Help Button —Opens the Ducking Operation topic of the
4
DSP Configurator Help File for further assistance in ducker configuration.
Duck Source Configuration
1
4
Duck Parameter Settings
2
Duck Priority Tree
3
Ducking Operation Help Button
4
