Groups

Groups allow master control of Gain and Mute for groups of channels. Groups are used in
control configurations.
Click Tools > Configure Groups to open the Configure Groups dialog box.
1
2
3
4

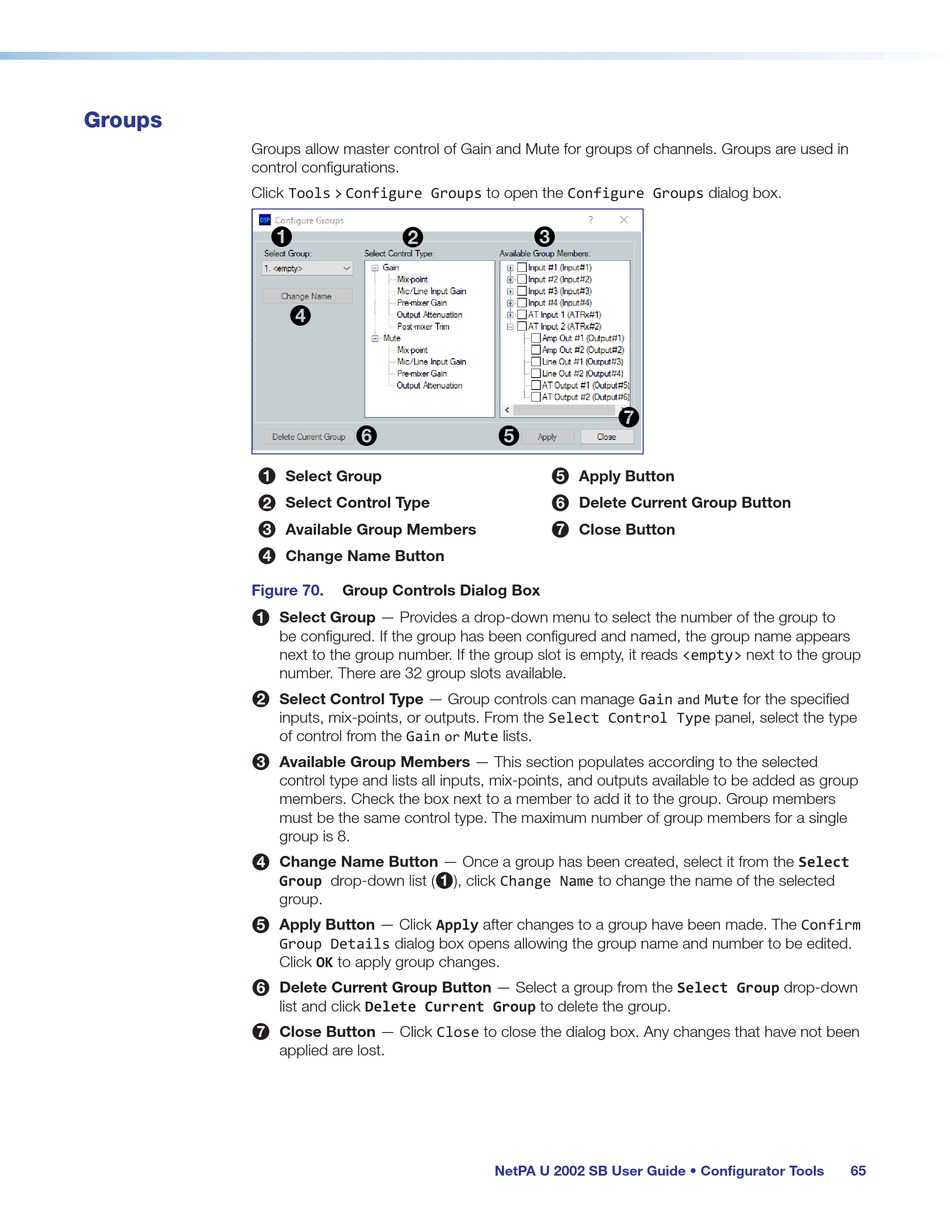

Figure 70.
1
2
3
4
5
6
7
1
2
4
6
Select Group
Select Control Type
Available Group Members
Change Name Button
Group Controls Dialog Box
Select Group — Provides a drop-down menu to select the number of the group to
be configured. If the group has been configured and named, the group name appears
next to the group number. If the group slot is empty, it reads <empty> next to the group
number. There are 32 group slots available.
Select Control Type — Group controls can manage Gain
inputs, mix-points, or outputs. From the Select Control Type panel, select the type
of control from the Gain
or
Available Group Members — This section populates according to the selected
control type and lists all inputs, mix-points, and outputs available to be added as group
members. Check the box next to a member to add it to the group. Group members
must be the same control type. The maximum number of group members for a single
group is 8.
Change Name Button — Once a group has been created, select it from the Select
Group drop-down list (
1
group.
Apply Button — Click Apply after changes to a group have been made. The Confirm
Group Details dialog box opens allowing the group name and number to be edited.
Click OK to apply group changes.
Delete Current Group Button — Select a group from the Select Group drop-down
list and click Delete Current Group to delete the group.
Close Button — Click Close to close the dialog box. Any changes that have not been
applied are lost.
3
7
5
Apply Button
5
Delete Current Group Button
6
Close Button
7
Mute lists.
), click Change Name to change the name of the selected
