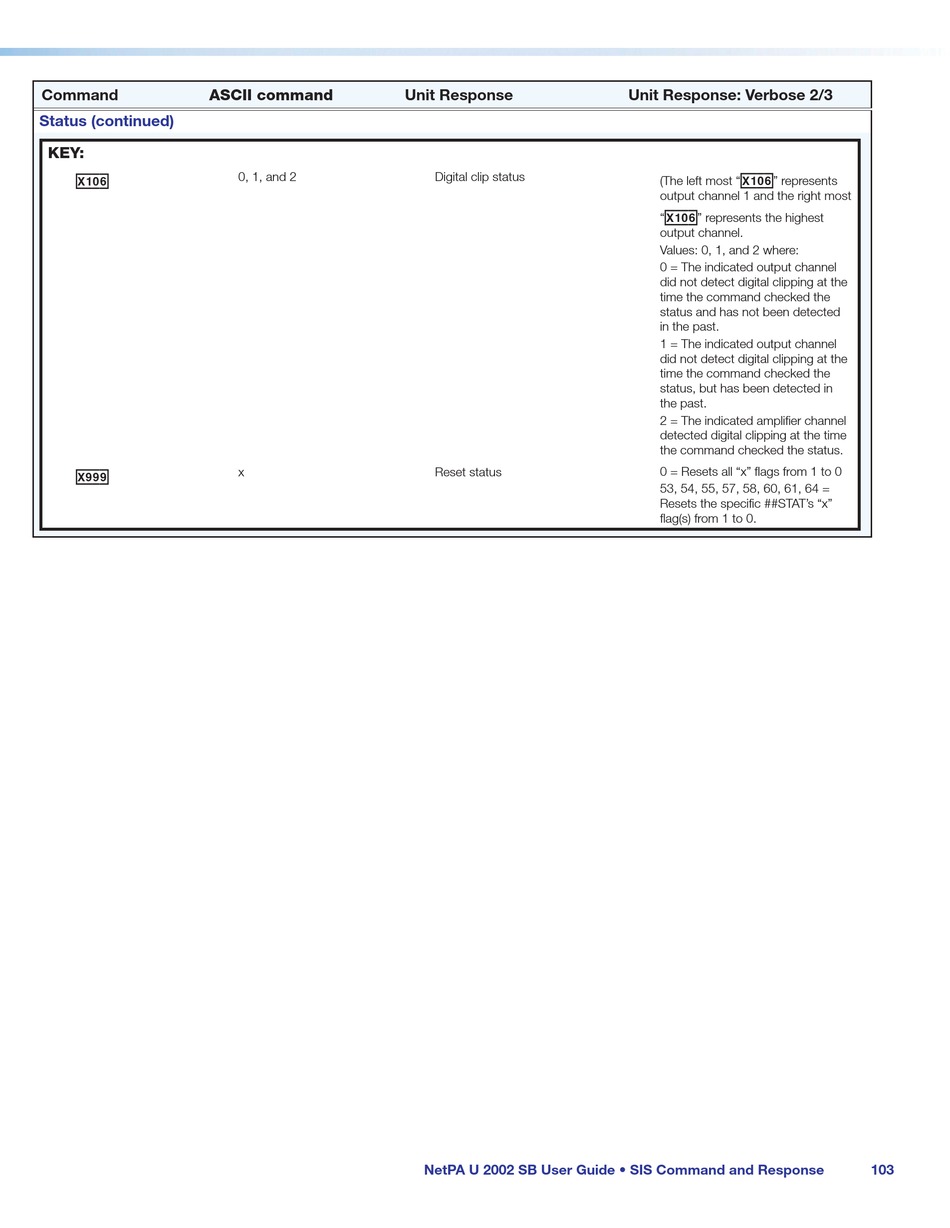

Command ASCII command
Status (continued)
KEY:
X10^
X99(
Unit Response
0, 1, and 2
x
Digital clip status
Reset status
NetPA U 2002 SB User Guide • SIS Command and Response
Unit Response: Verbose 2/3
X10^
(The left most " " represents
output channel 1 and the right most
X10^
" " represents the highest
output channel.
Values: 0, 1, and 2 where:
0 = The indicated output channel
did not detect digital clipping at the
time the command checked the
status and has not been detected
in the past.
1 = The indicated output channel
did not detect digital clipping at the
time the command checked the
status, but has been detected in
the past.
2 = The indicated amplifier channel
detected digital clipping at the time
the command checked the status.
0 = Resets all "x" flags from 1 to 0
53, 54, 55, 57, 58, 60, 61, 64 =
Resets the specific ##STAT's "x"
flag(s) from 1 to 0.
103
