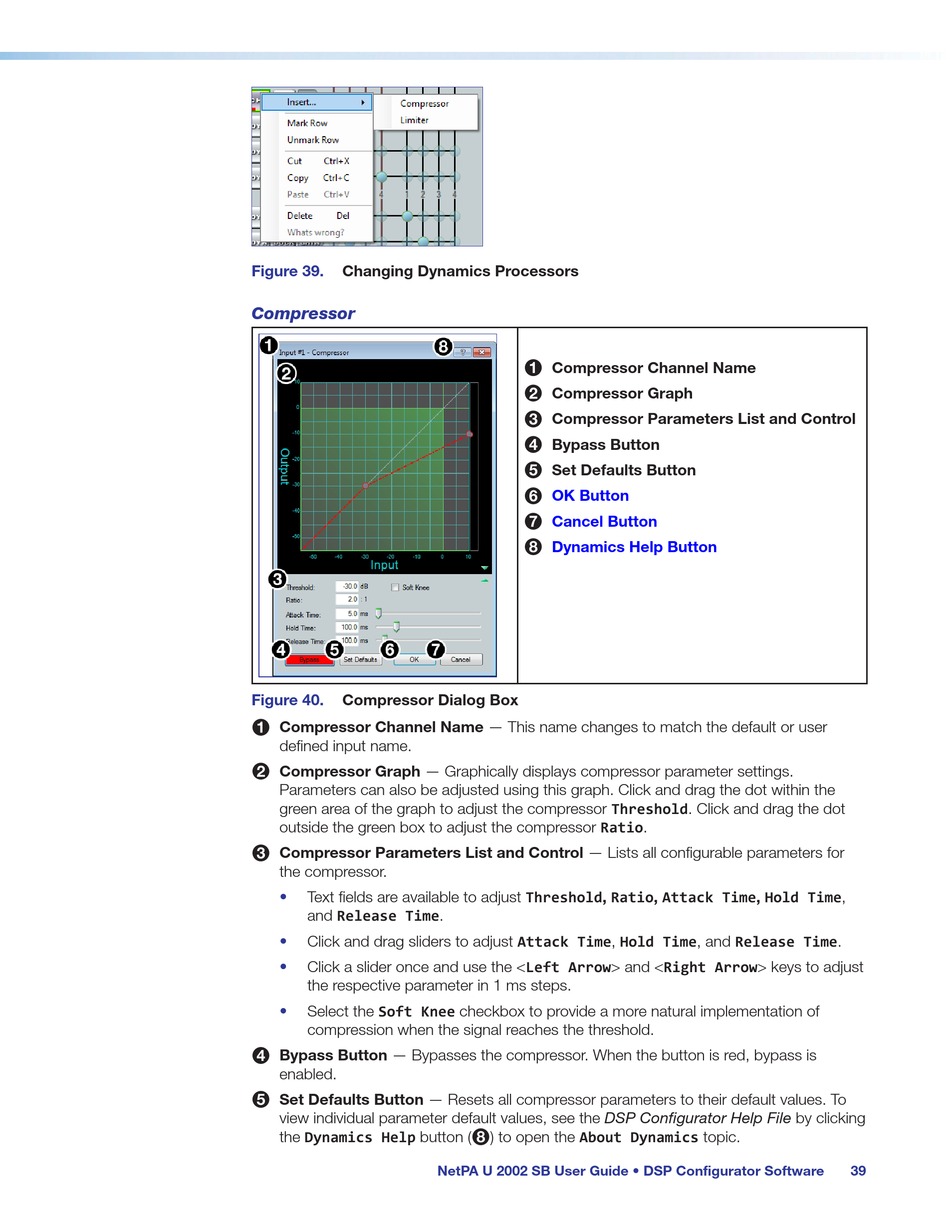

Figure 39. Changing Dynamics Processors
Compressor
Figure 40. Compressor Dialog Box
Compressor Channel Name — This name changes to match the default or user
1
defined input name.
Compressor Graph — Graphically displays compressor parameter settings.
2
Parameters can also be adjusted using this graph. Click and drag the dot within the
green area of the graph to adjust the compressor Threshold. Click and drag the dot
outside the green box to adjust the compressor Ratio.
Compressor Parameters List and Control — Lists all configurable parameters for
3
the compressor.
Text fields are available to adjust Threshold, Ratio, Attack Time, Hold Time,
•
and Release Time.
• Click and drag sliders to adjust Attack Time, Hold Time, and Release Time.
• Click a slider once and use the <Left Arrow> and <Right Arrow> keys to adjust
the respective parameter in 1 ms steps.
Select the Soft Knee checkbox to provide a more natural implementation of
•
compression when the signal reaches the threshold.
Bypass Button — Bypasses the compressor. When the button is red, bypass is
4
enabled.
Set Defaults Button — Resets all compressor parameters to their default values. To
5
view individual parameter default values, see the DSP Configurator Help File by clicking
the Dynamics Help button (
Compressor Channel Name
1
Compressor Graph
2
Compressor Parameters List and Control
3
Bypass Button
4
Set Defaults Button
5
OK Button
6
Cancel Button
7
Dynamics Help Button
8
) to open the About Dynamics topic.
8
NetPA U 2002 SB User Guide • DSP Configurator Software 39
