Extron electronics mlp 101 series User Manual

Extron electronics mlp 101 series User Manual

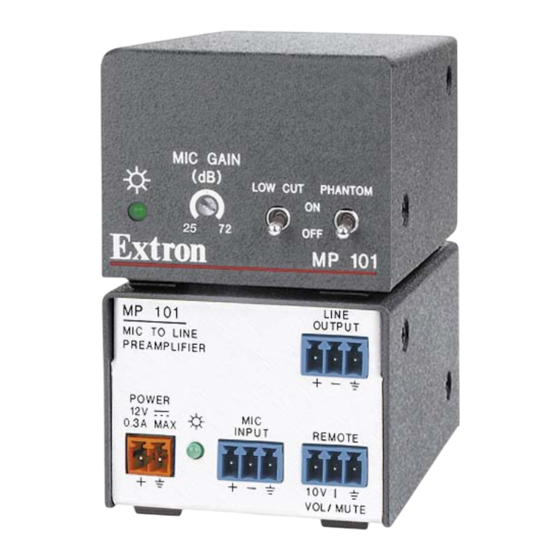

Microphone to line preamplifiers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Extron Electronics, USA
Extron Electronics, Europe
1230 South Lewis Street
Beeldschermweg 6C
Anaheim, CA 92805
3821 AH Amersfoort
USA
The Netherlands
714.491.1500
+31.33.453.4040
www.extron.com
Fax 714.491.1517
Fax +31.33.453.4050
© 2006 Extron Electronics. All rights reserved.
Extron Electronics, Asia
Extron Electronics, Japan
135 Joo Seng Road, #04-01
Kyodo Building
PM Industrial Building
16 Ichibancho
Singapore 368363
Chiyoda-ku, Tokyo 102-0082 Japan
+65.6383.4400
+81.3.3511.7655
Fax +65.6383.4664
Fax +81.3.3511.7656
User's Manual
Microphone to Line Preamplifi ers
MLP 101 Series
68-992-01 Rev. B
08 06

Advertisement

Table of Contents
loading

Related Manuals for Extron electronics mlp 101 series

Summary of Contents for Extron electronics mlp 101 series

  • Page 1 Anaheim, CA 92805 3821 AH Amersfoort PM Industrial Building 16 Ichibancho The Netherlands Singapore 368363 Chiyoda-ku, Tokyo 102-0082 Japan 08 06 714.491.1500 +31.33.453.4040 +65.6383.4400 +81.3.3511.7655 www.extron.com Fax 714.491.1517 Fax +31.33.453.4050 Fax +65.6383.4664 Fax +81.3.3511.7656 © 2006 Extron Electronics. All rights reserved.
  • Page 2 Protección del cables de alimentación • Los cables de alimentación eléctrica se deben protección aislante, que puedan encontrarse dentro use. In no event will Extron Electronics be liable for direct, indirect, or consequential instalar en lugares donde no sean pisados ni apretados por objetos que se puedan de la caja o alojamiento del producto, y que puedan apoyar sobre ellos.
  • Page 4 Connect the microphone to the MLP 101 mic input. See the diagrams below for wiring instructions. 0.2” Cold Cold (5 mm) MAX Cable Shield Unbalanced Input Balanced Input Captive Screw (high impedance) (high impedance) Connector stripping For unbalanced audio, ensure that the Phantom power switch is set to the “off” position. MLP 101 Series • Quick Start Guide QS-1...
  • Page 5 50-6 100- 240V of this Quick Start Guide (page QS-1) for wiring instructions. MediaLink Switcher 1.0A Laptop Document Camera w/ Audio Typical connection setup MLP 101 Series • Quick Start Guide MLP 101 Series • Quick Start Guide QS-3 QS-2...
  • Page 6 Step 5 Connect the microphone to the MLP 101 D mic input. See Step 3 of this Quick Start Guide (page QS-1) for wiring instructions. MLP 101 Series • Quick Start Guide MLP 101 Series • Quick Start Guide QS-4...

  • Page 7: Table Of Contents

    Mounting the MLP 101 AAP ............ 3-5 Remote Control ................3-6 Remote connector wiring............3-6 Remote control options............3-7 MLP 101 Series • Quick Start Guide QS-6 MLP 101 Series • Table of Contents...
  • Page 8 ................A-5 Optional Accessories ..............A-6 Appendix B • Dimensions and Template for the About.this.Manual MLP 101 D ..................... B-1 About.the.MLP.101,.MLP.101.AAP,.and.MLP.101.D Dimensions ................... B-2 Template ..................B-3 Features All trademarks mentioned in this manual are the properties of their respective owners. 68-992-01. Rev..B 08.06 MLP 101 Series • Table of Contents viii...

  • Page 9: About This Manual

    MLP 101 D The Extron MLP 101, MLP 101 AAP, and MLP 101 D (the MLP 101 series) are high quality microphone to line level audio preamplifiers. These products can add microphone capability to most Extron audio and switcher systems.
  • Page 10 Introduction, cont’d MLP 101 Series Chapter Two MLP 101 Rear.Panel.Features Front.Panel.Features Mounting.the.MLP.101 Adjusting.the.MLP.101 Remote.Control MLP 101 Series • Introduction...

  • Page 11: Rear Panel Features

    For unbalanced audio, ensure that the Phantom power To verify the power cord’s polarity before connecting switch is set to the “off” position. it, plug in the power supply with no load and check the output with a voltmeter. MLP 101 Series • MLP 101 MLP 101 Series • MLP 101...

  • Page 12: Remote Connection

    Low Cut filter switch — Provides switchable low cut filtering to remove wind and “table rumble” noise. Phantom power switch — Provides switchable 48 volt phantom power for condenser microphones. MLP 101 Series • MLP 101 MLP 101 Series • MLP 101...

  • Page 13: Rack Installation

    Mount the unit on the rack, using the two included rack screws. The MLP 101 can be vertically mounted facing in either direction, as shown in the following figure. MLP 101 Series • MLP 101 MLP 101 Series • MLP 101...

  • Page 14: Furniture Mounting

    Hold the unit against the underside of the table or other furniture, and mark the locations for four screws (two screws per bracket) on the mounting surface. MLP 101 Series • MLP 101 MLP 101 Series • MLP 101...

  • Page 15: Remote Control

    Remote Control MLP 101 Series The wiring and control options described below pertain to all models in the MLP 101 series. Remote connector wiring As shown below, Pin 1 is 10 VDC reference voltage. Pin 2 is volume control DC voltage; range is 0 to 10 V, where 0 V is mute and 10 V provides maximum volume.

  • Page 16: Rear Panel Features

    XLR mic input — Use an XLR connector or a standard continuing. microphone connection. See the following illustration and table for connector pin out information. MLP 101 Series • MLP 101 AAP MLP 101 Series • MLP 101 AAP...

  • Page 17: Adjusting The Mlp 101 Aap

    M IC microphone and adjusting for the maximum sound level AAP 102 Extron that is free of distortion. MLP 101 AAP Installation Cable MIC to Line Preamplifier MLP 101 Series • MLP 101 AAP MLP 101 Series • MLP 101 AAP...

  • Page 18: Remote Control

    0 to 10 V, where 0 V is mute and 10 V provides maximum volume. Pin 3 is ground. All nominal levels are at ±10%. REMOTE VOL/MUTE MUTE MLP 101 Series • MLP 101 AAP MLP 101 Series • MLP 101 AAP...

  • Page 19: About The Mlp 101 D

    MLP 101 AAP, cont’d MLP 101 Series Chapter Four MLP 101 D About.the.MLP.101.D Rear.Panel.Features Front.Panel.Features Adjusting.the.MLP.101.D Mounting.the.MLP.101.D Remote.Control MLP 101 Series • MLP 101 AAP...

  • Page 20: Rear Panel Features

    Balanced Output Unbalanced Output (high impedance) When connecting the power supply, voltage polarity is extremely important. Applying power with Low Cut filter switch — Provides low cut filtering to remove incorrect voltage polarity could damage the power wind and “table rumble” noise. supply and the interface. Identify the power cord negative lead by the ridges on the side of the cord. MLP 101 Series • MLP 101 D MLP 101 Series • MLP 101 D...

  • Page 21: Remote Connection

    If there is minimal distortion, but greater volume is required, turn the Mic Gain pot clockwise (towards the 75 dB mark) to increase the volume, but not past the point where distortion occurs. MLP 101 Series • MLP 101 D MLP 101 Series • MLP 101 D...

  • Page 22: Mounting The Mlp 101 D

    Preamplifier The Extron MLA-VC10 converts RS-232 serial command to 0~10 volt variable DC for volume control. Generic volume/mute controllers are standard 10k ohm Decora potentiometers. Faceplate MLP 101 Series • MLP 101 D MLP 101 Series • MLP 101 D...
  • Page 23 MLP 101 D, cont’d MLP 101 Series Chapter Five Architectural Installation Installation.Instructions Preparing.the.Site.and.Installing.the.Wall.Box MLP 101 Series • MLP 101 D...

  • Page 24: Installation Instructions

    If the MLP 101 will be installed without a wall box (using mud rings or fastening it directly to the wall or furniture), Two versions of the MLP 101 series, the MLP 101 AAP and measure and mark the surface for the cutout area MLP 101 D, can be mounted into furniture, a wall, or an indicated in the template.

  • Page 25: And Accessories

    Accessories • If attaching the wall box to metal studs or furniture, use four #8 or #10 self-tapping sheet metal screws or machine bolts with matching nuts. Specifications Included.Parts. Optional.Accessories MLP 101 Series • Architectural Installation...

  • Page 26: Appendix A • Specifications, Part Numbers, And Accessories

    (Depth excludes connectors.) Extron remote key pad control ... (1) 3.5 mm captive screw connector, 3 pole Product weight ......0.3 lbs (0.1 kg) MLP 101 Series • Specifications, Part Numbers, and Accessories MLP 101 Series • Specifications, Part Numbers, and Accessories...

  • Page 27: Specifications

    Power supply: universal 12 VDC, 1.0 A 70-055-01 Two 3-pin, captive screw connectors One 2-pin, captive screw connector Tweeker (small screwdriver) User’s manual MLP 101 Series • Specifications, Part Numbers, and Accessories MLP 101 Series • Specifications, Part Numbers, and Accessories...

  • Page 28: Optional Accessories

    Power supply kit, 12 VDC 70-055-01 AAP 102 panel (gray) (MLP 101 AAP only) 60-300-01 AAP 102 panel (black) (MLP 101 AAP only) 60-300-02 AAP 102 panel (white) (MLP 101 AAP only) 60-300-03 MLP 101 Series • Specifications, Part Numbers, and Accessories...

  • Page 29: Mlp 101 D

    Location of MLP 101 D Circuit Board Cut Out Line for Installing the Electrical FULL SIZE MLP 101 Series • Dimensions and Template for the MLP 101 D MLP 101 Series • Dimensions and Template for the MLP 101 D...
  • Page 30 Dimensions and Template, cont’d MLP 101 Series • Dimensions and Template for the MLP 101 D...
