Icon Description
Indicates an active subscription.
Indicates subscription is in progress.
Indicates a pending subscription.
Indicates a broken subscription.
Indicates the transmitting device has been removed from the network or is
switched off.
See the Dante Controller User Guide, available at www.audinate.com, for additional
information.
Creating Subscriptions Between Devices
1. Ensure the control computer and NetPA Ultra amplifier are connected to the same
network.
2. From the start menu select:
All Programs > Audinate > Dante Controller > Dante Controller
The Dante Controller - Network View screen opens.
Dante Controller auto-discovers Dante devices on the network and advertises itself to
allow other Dante-enabled devices to communicate with it. Transmitters connect to
receivers using the subscription matrix.
2

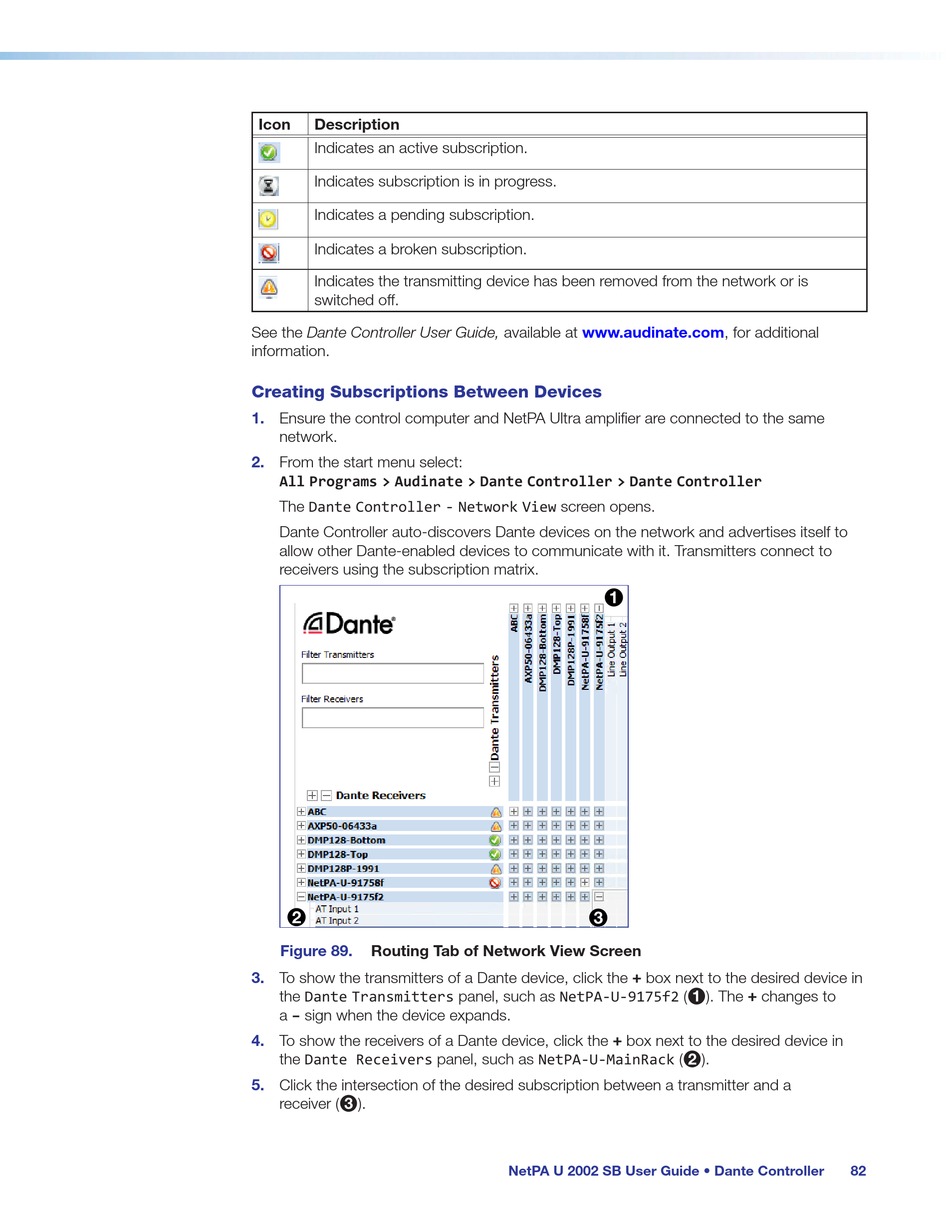

Figure 89. Routing Tab of Network View Screen
3. To show the transmitters of a Dante device, click the
the Dante Transmitters panel, such as NetPA-U-9175f2 (
a – sign when the device expands.
4. To show the receivers of a Dante device, click the
the Dante Receivers panel, such as NetPA-U-MainRack (
5. Click the intersection of the desired subscription between a transmitter and a
receiver ( ).
3
1
3
+
box next to the desired device in
1
+
box next to the desired device in
2
NetPA U 2002 SB User Guide • Dante Controller
+
). The changes to
).
