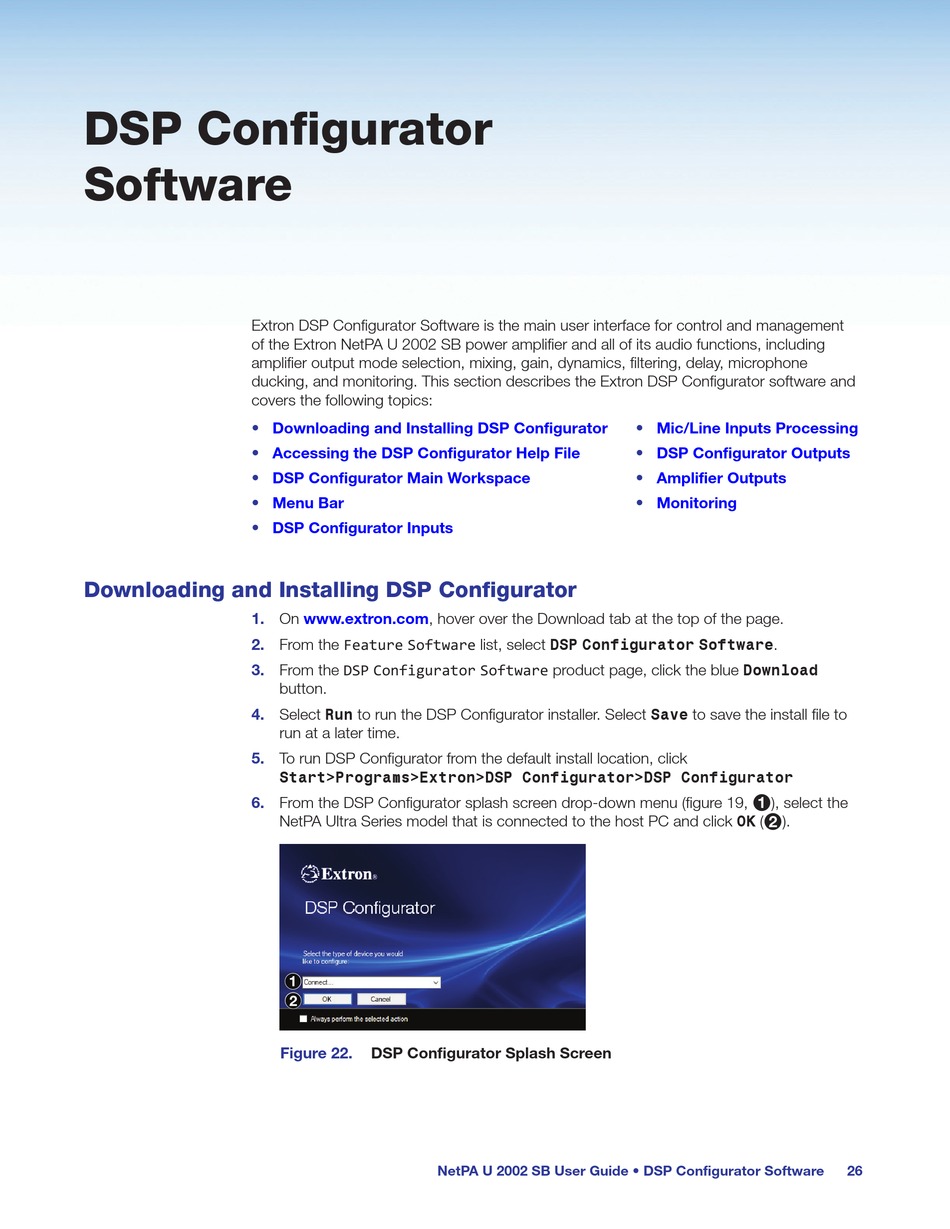

DSP Configurator
Software
Extron DSP Configurator Software is the main user interface for control and management
of the Extron NetPA U 2002 SB power amplifier and all of its audio functions, including
amplifier output mode selection, mixing, gain, dynamics, filtering, delay, microphone
ducking, and monitoring. This section describes the Extron DSP Configurator software and
covers the following topics:
•
•
•
•
•

Downloading and Installing DSP Configurator

1.
2.
3.
4.
5.
6.
Downloading and Installing DSP Configurator
Accessing the DSP Configurator Help File
DSP Configurator Main Workspace
Menu Bar
DSP Configurator Inputs
On www.extron.com, hover over the Download tab at the top of the page.
From the Feature Software list, select DSP Configurator Software.
From the DSP Configurator Software product page, click the blue Download
button.
Select Run to run the DSP Configurator installer. Select Save to save the install file to
run at a later time.
To run DSP Configurator from the default install location, click
Start>Programs>Extron>DSP Configurator>DSP Configurator
From the DSP Configurator splash screen drop-down menu (figure 19,
NetPA Ultra Series model that is connected to the host PC and click OK (
1
2
Figure 22. DSP Configurator Splash Screen
NetPA U 2002 SB User Guide • DSP Configurator Software
• Mic/Line Inputs Processing
• DSP Configurator Outputs
• Amplifier Outputs
Monitoring
•
), select the
1
).
2
