Dante Controller Operation

Dante Transmitters and Receivers

A Dante network is comprised of transmitters that output digital audio onto the Dante
network and receivers that receive digital audio input from the Dante network.
•
•

NetPA Ultra Series Transmitters and Receivers

In the NetPA U 2002 SB, the line outputs are independent of Dante outputs. Each output
may be routed independently. The NetPA U 2002 SB has two Dante outputs.
The NetPA U 2002 SB AT input channels are Dante receivers because they receive digital
audio signal from the Dante network that can then be routed and mixed into a mix matrix.
The NetPA U 2002 SB has two Dante inputs.

Dante Routing Operation

Dante Controller is used for all network signal routing of transmitters and receivers for
Dante-enabled devices. The NetPA U 2002 SB transmitters and receivers are available in
Dante Controller for routing to other Dante devices.

Routing Devices

After the NetPA U 2002 SB amplifier is configured, the channels can be routed to the other
Dante devices on the audio network. Channels transmitted to the network or received
from the network are routed using the Dante Controller Routing tab on the Network View
page (see
of the screen, and the receivers, listed vertically down the left side, form a matrix whose
intersections are the connection points between the receivers and transmitters.
•
•
One of the following icons appears at each connection intersection, indicating the status of
both the transmitter and receiver channels and the connections (subscriptions):

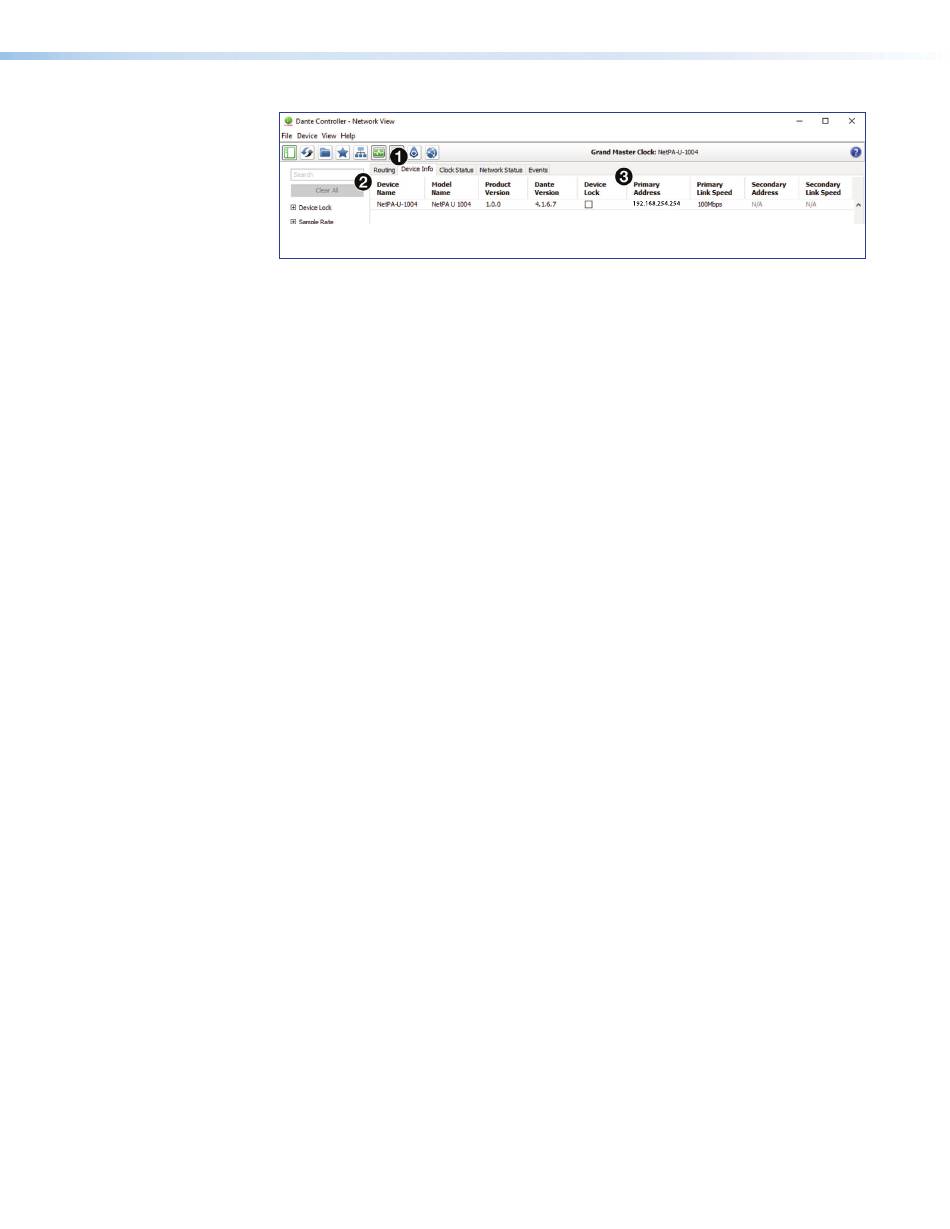

Figure 88. Device Info Page
Transmitters output digital audio from the device onto the audio network.
Receivers take in digital audio from the audio network into the device.
figure 89 on the next page). The transmitters, listed horizontally along the top
To make a transmitter-to-reciever connection, click once on an intersection.
To remove a connection, click on the icon at the intersection.
NetPA U 2002 SB User Guide • Dante Controller 81
