Cable Conduit
Access Plate
Screw
Alternate
Knockout

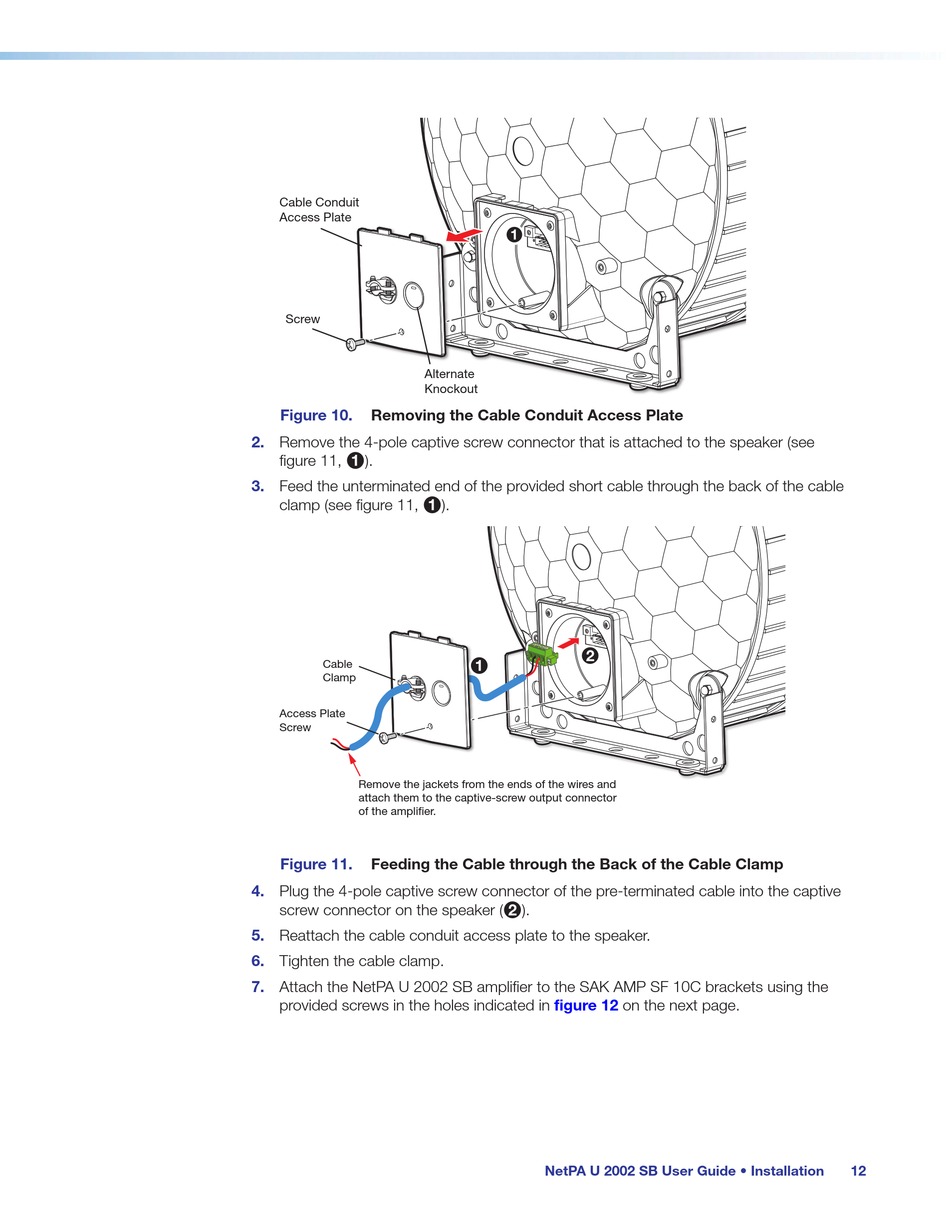

Figure 10. Removing the Cable Conduit Access Plate
2. Remove the 4-pole captive screw connector that is attached to the speaker (see
figure 11, ).
1
3. Feed the unterminated end of the provided short cable through the back of the cable
clamp (see figure 11,
1
Cable
Clamp
Access Plate
Screw
Remove the jackets from the ends of the wires and
attach them to the captive-screw output connector
of the ampli er.
Figure 11. Feeding the Cable through the Back of the Cable Clamp
4.
Plug the 4-pole captive screw connector of the pre-terminated cable into the captive
screw connector on the speaker (
5. Reattach the cable conduit access plate to the speaker.
6. Tighten the cable clamp.
7. Attach the NetPA U 2002 SB amplifier to the SAK AMP SF 10C brackets using the
provided screws in the holes indicated in
1 1 1
).
2 2 2
1 1 1
).
2
figure 12
NetPA U 2002 SB User Guide • Installation
on the next page.
12
