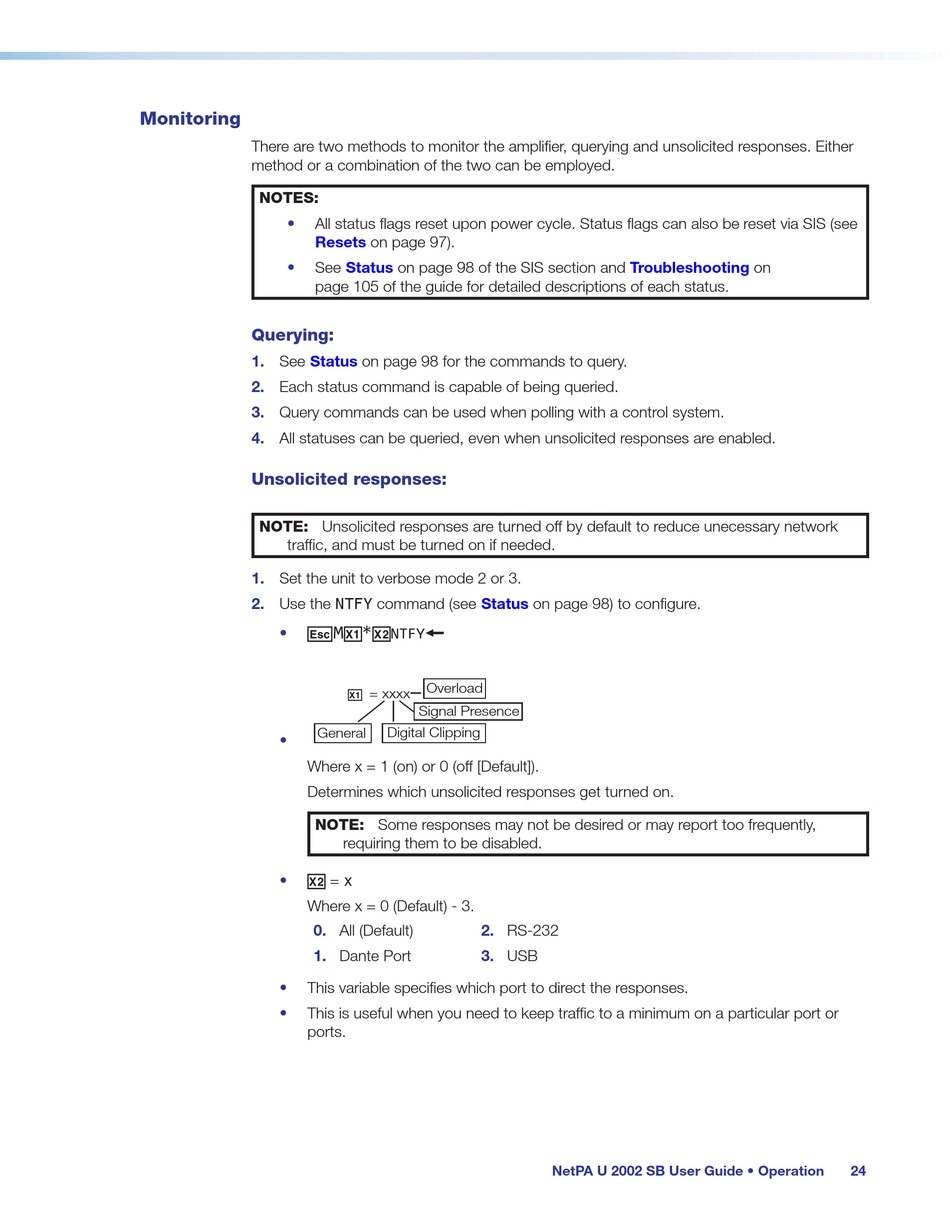

Monitoring

There are two methods to monitor the amplifier, querying and unsolicited responses. Either
method or a combination of the two can be employed.
NOTES:
• All status flags reset upon power cycle. Status flags can also be reset via SIS (see
Resets
• See
page 105 of the guide for detailed descriptions of each status.
Querying:
1. See Status
2. Each status command is capable of being queried.
3.
Query commands can be used when polling with a control system.
4. All statuses can be queried, even when unsolicited responses are enabled.
Unsolicited responses:
NOTE: Unsolicited responses are turned off by default to reduce unecessary network
traffic, and must be turned on if needed.
1. Set the unit to verbose mode 2 or 3.
2. Use the NTFY command (see
EMX!*X@
•
General
•
Where x = 1 (on) or 0 (off [Default]).
Determines which unsolicited responses get turned on.
NOTE: Some responses may not be desired or may report too frequently,
X@
•
Where x = 0 (Default) - 3.
0.
1.
• This variable specifies which port to direct the responses.
• This is useful when you need to keep traffic to a minimum on a particular port or
ports.
on page 97).
Status on page 98 of the SIS section and
on page 98 for the commands to query.
Status
}
NTFY
Overload
X! = xxxx
Signal Presence
Digital Clipping
requiring them to be disabled.
= x
2.
All (Default) RS-232
Dante Port 3. USB
Troubleshooting
on page 98) to configure.
NetPA U 2002 SB User Guide • Operation
on
24
