2
3

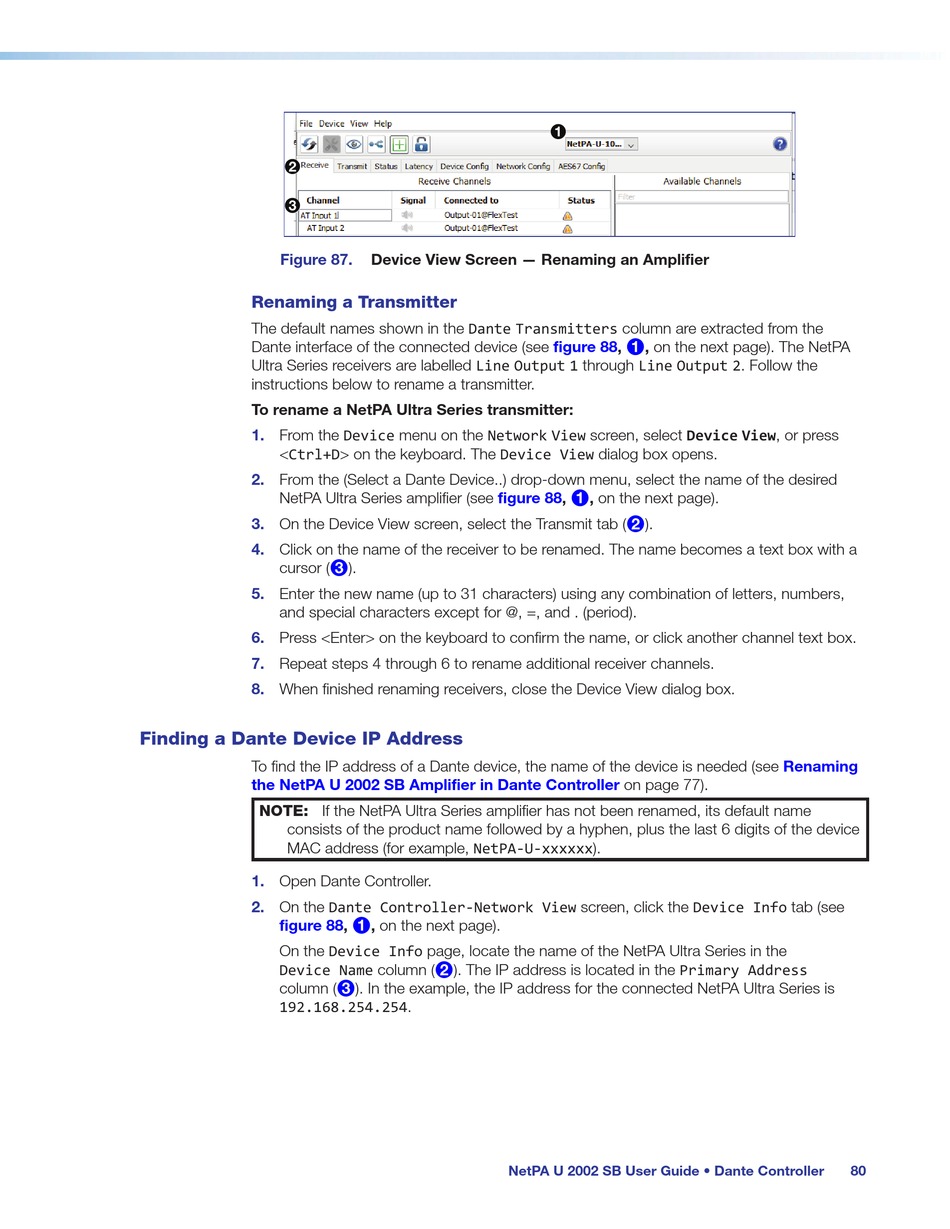

Figure 87.
Renaming a Transmitter
The default names shown in the Dante Transmitters column are extracted from the
Dante interface of the connected device (see figure 88,
Ultra Series receivers are labelled Line Output 1 through Line Output 2. Follow the
instructions below to rename a transmitter.
To rename a NetPA Ultra Series transmitter:
1. From the Device menu on the Network View screen, select Device View, or press
<Ctrl+D> on the keyboard. The Device View dialog box opens.
2. From the (Select a Dante Device..) drop-down menu, select the name of the desired
NetPA Ultra Series amplifier (see figure 88,
3. On the Device View screen, select the Transmit tab (
4. Click on the name of the receiver to be renamed. The name becomes a text box with a
cursor (
5. Enter the new name (up to 31 characters) using any combination of letters, numbers,
and special characters except for @, =, and . (period).
6. Press <Enter> on the keyboard to confirm the name, or click another channel text box.
7.
Repeat steps 4 through 6 to rename additional receiver channels.
8. When finished renaming receivers, close the Device View dialog box.

Finding a Dante Device IP Address

To find the IP address of a Dante device, the name of the device is needed (see
the NetPA U 2002 SB Amplifier in Dante Controller
NOTE: If the NetPA Ultra Series amplifier has not been renamed, its default name
consists of the product name followed by a hyphen, plus the last 6 digits of the device
MAC address (for example, NetPA-U-xxxxxx).
1.
Open Dante Controller.
2. On the Dante Controller-Network View screen, click the Device Info tab (see
figure 88,
On the Device Info page, locate the name of the NetPA Ultra Series in the
Device Name column (
column (
192.168.254.254.
Device View Screen — Renaming an Amplifier
).
3
, on the next page).
1
). The IP address is located in the Primary Address
2
). In the example, the IP address for the connected NetPA Ultra Series is
3
NetPA U 2002 SB User Guide • Dante Controller
1
, on the next page). The NetPA
1
, on the next page).
1
).
2
on page 77).
Renaming
80
