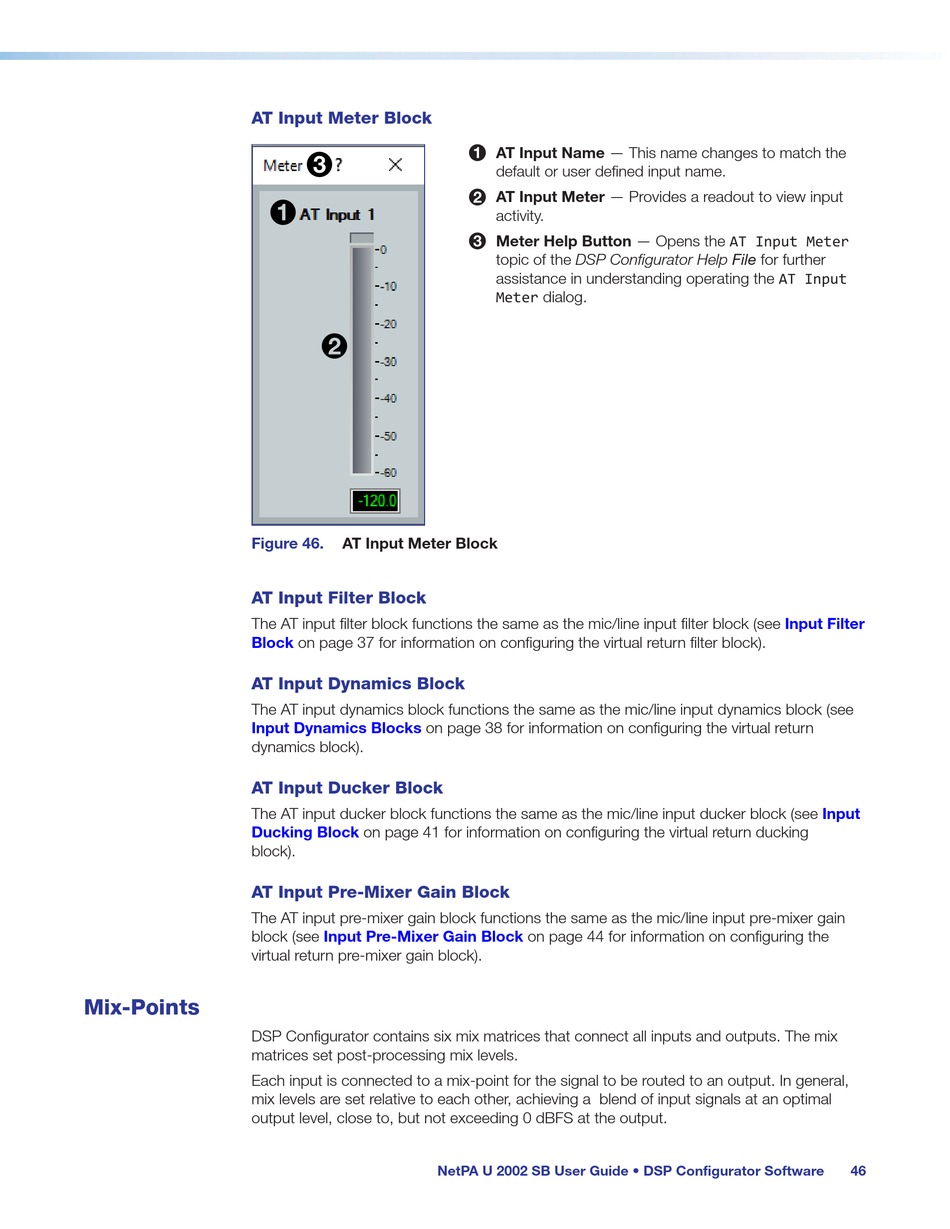

AT Input Meter Block
Figure 46.
AT Input Filter Block
The AT input filter block functions the same as the mic/line input filter block (see
Block
AT Input Dynamics Block
The AT input dynamics block functions the same as the mic/line input dynamics block (see
Input Dynamics Blocks
dynamics block).
AT Input Ducker Block
The AT input ducker block functions the same as the mic/line input ducker block (see
Ducking Block
block).
AT Input Pre-Mixer Gain Block
The AT input pre-mixer gain block functions the same as the mic/line input pre-mixer gain
block (see
virtual return pre-mixer gain block).

Mix-Points

DSP Configurator contains six mix matrices that connect all inputs and outputs. The mix
matrices set post-processing mix levels.
Each input is connected to a mix-point for the signal to be routed to an output. In general,
mix levels are set relative to each other, achieving a blend of input signals at an optimal
output level, close to, but not exceeding 0 dBFS at the output.
3
1
2
AT Input Meter Block
on page 37 for information on configuring the virtual return filter block).
on page 38 for information on configuring the virtual return
on page 41 for information on configuring the virtual return ducking
Input Pre-Mixer Gain Block
NetPA U 2002 SB User Guide • DSP Configurator Software
AT Input Name — This name changes to match the
1
default or user defined input name.
AT Input Meter — Provides a readout to view input
2
activity.
Meter Help Button — Opens the AT Input Meter
3
topic of the DSP Configurator Help File for further
assistance in understanding operating the AT Input
Meter dialog.
on page 44 for information on configuring the
Input Filter
Input
46
