NOTE: In order for mix-points to appear in the workspace, the input group sending
signal to the mix-point must be expanded and the input channel must be visible.

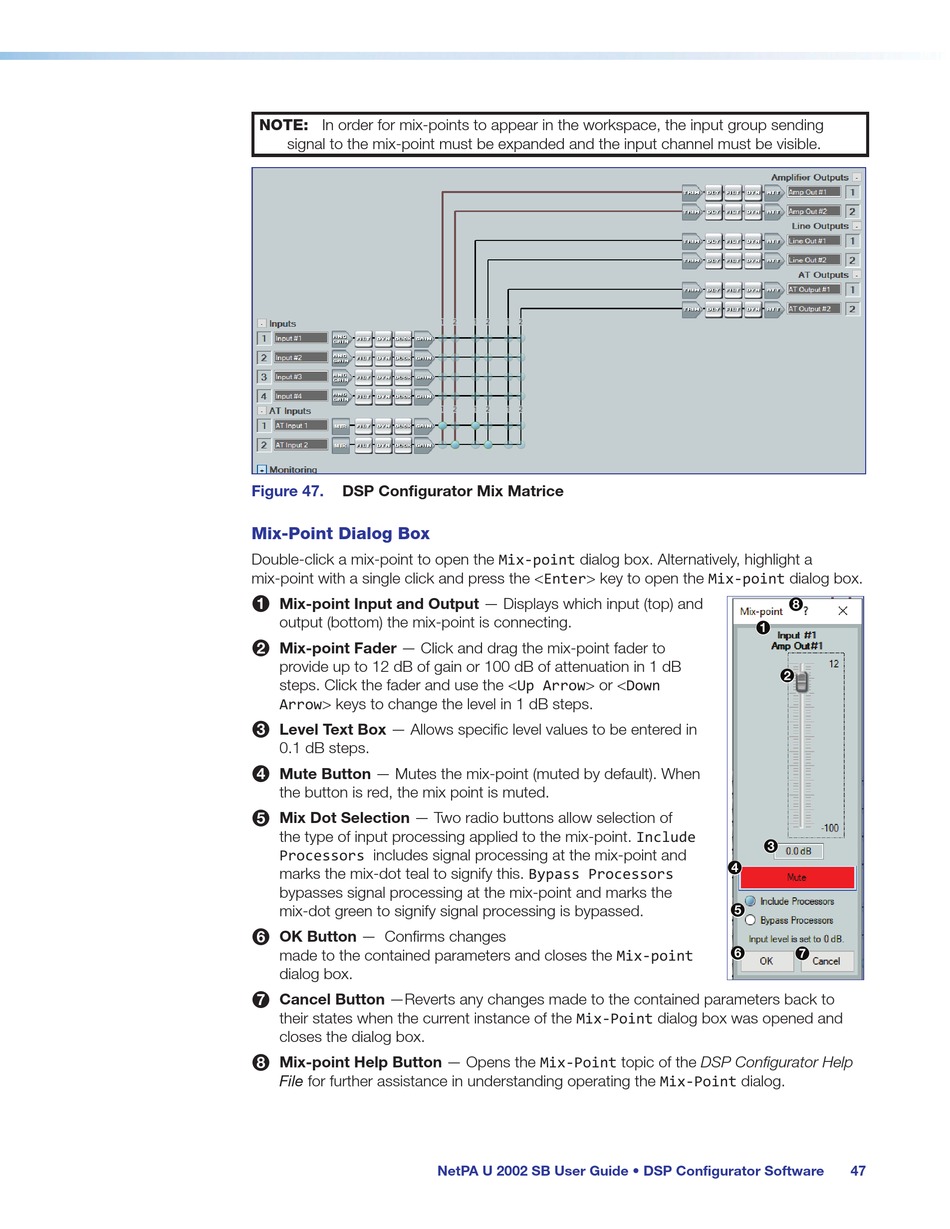

Figure 47. DSP Configurator Mix Matrice
Mix-Point Dialog Box
Double-click a mix-point to open the Mix-point dialog box. Alternatively, highlight a
mix-point with a single click and press the <Enter> key to open the Mix-point dialog box.
Mix-point Input and Output — Displays which input (top) and
1
output (bottom) the mix-point is connecting.
Mix-point Fader — Click and drag the mix-point fader to
2
provide up to 12 dB of gain or 100 dB of attenuation in 1 dB
steps. Click the fader and use the <Up Arrow> or <Down
Arrow> keys to change the level in 1 dB steps.
Level Text Box — Allows specific level values to be entered in
3
0.1 dB steps.
Mute Button — Mutes the mix-point (muted by default). When
4
the button is red, the mix point is muted.
Mix Dot Selection — Two radio buttons allow selection of
5
the type of input processing applied to the mix-point. Include
Processors includes signal processing at the mix-point and
marks the mix-dot teal to signify this. Bypass Processors
bypasses signal processing at the mix-point and marks the
mix-dot green to signify signal processing is bypassed.
OK Button — Confirms changes
6
made to the contained parameters and closes the Mix-point
dialog box.
Cancel Button —Reverts any changes made to the contained parameters back to
7
their states when the current instance of the Mix-Point dialog box was opened and
closes the dialog box.
Mix-point Help Button — Opens the Mix-Point topic of the DSP Configurator Help
8
File for further assistance in understanding operating the Mix-Point dialog.
NetPA U 2002 SB User Guide • DSP Configurator Software
