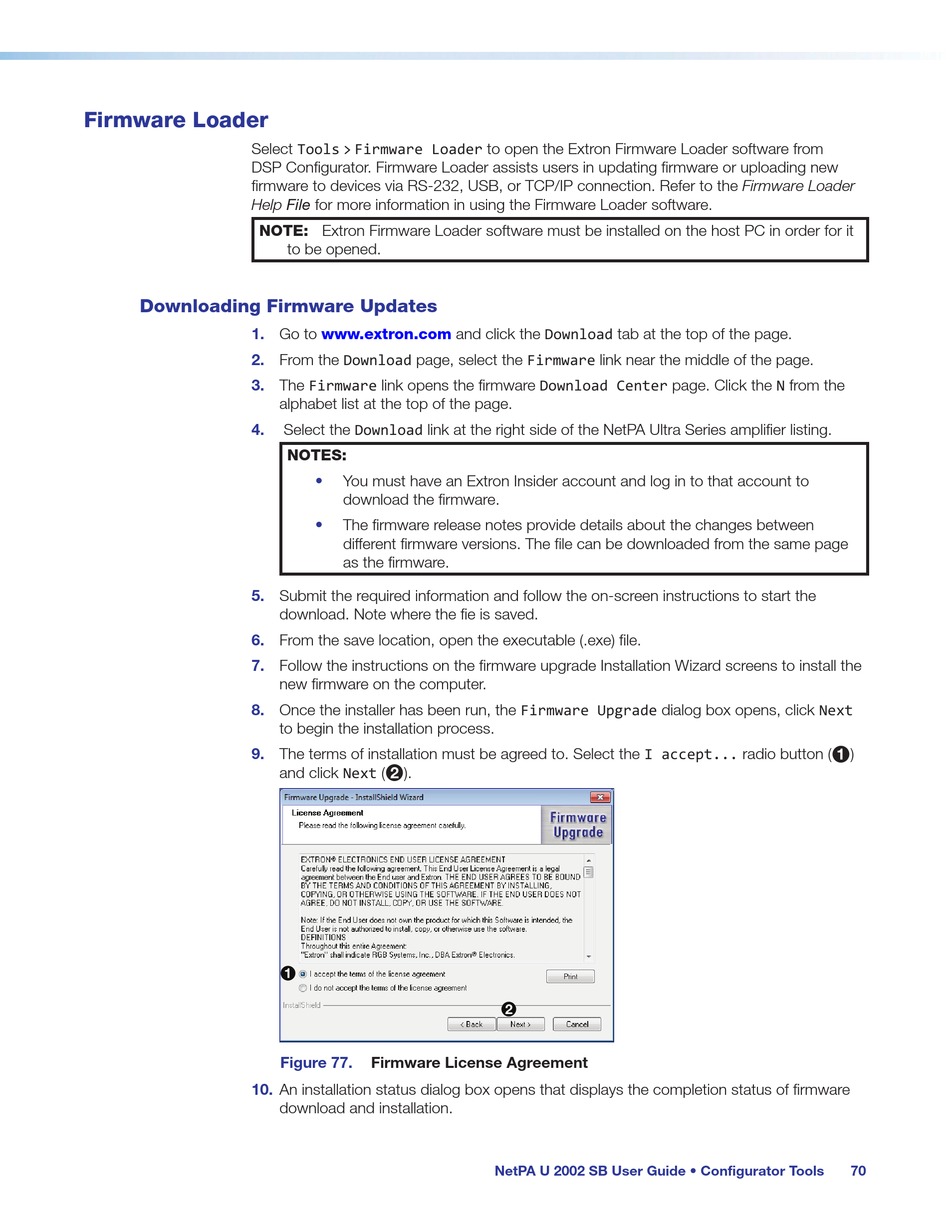

Firmware Loader

Select Tools > Firmware Loader to open the Extron Firmware Loader software from
DSP Configurator. Firmware Loader assists users in updating firmware or uploading new
firmware to devices via RS-232, USB, or TCP/IP connection. Refer to the Firmware Loader
Help File for more information in using the Firmware Loader software.
NOTE: Extron Firmware Loader software must be installed on the host PC in order for it

Downloading Firmware Updates

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
to be opened.
Go to www.extron.com and click the Download tab at the top of the page.
From the Download page, select the Firmware link near the middle of the page.
The Firmware link opens the firmware Download Center page. Click the N from the
alphabet list at the top of the page.
Select the Download link at the right side of the NetPA Ultra Series amplifier listing.
NOTES:
• You must have an Extron Insider account and log in to that account to
download the firmware.
The firmware release notes provide details about the changes between
•
different firmware versions. The file can be downloaded from the same page
as the firmware.
Submit the required information and follow the on-screen instructions to start the
download. Note where the fie is saved.
From the save location, open the executable (.exe) file.
Follow the instructions on the firmware upgrade Installation Wizard screens to install the
new firmware on the computer.
Once the installer has been run, the Firmware Upgrade dialog box opens, click Next
to begin the installation process.
The terms of installation must be agreed to. Select the I accept... radio button (
and click Next (
).
2
1
Figure 77. Firmware License Agreement
An installation status dialog box opens that displays the completion status of firmware
download and installation.
2
