Extron electronics XPA Ultra Series User Manual
Half-rack audio power amplifiers
Hide thumbs
Also See for XPA Ultra Series:
- User manual (29 pages) ,
- Setup manual (3 pages) ,
- User manual (28 pages)
Related Manuals for Extron electronics XPA Ultra Series
Summary of Contents for Extron electronics XPA Ultra Series

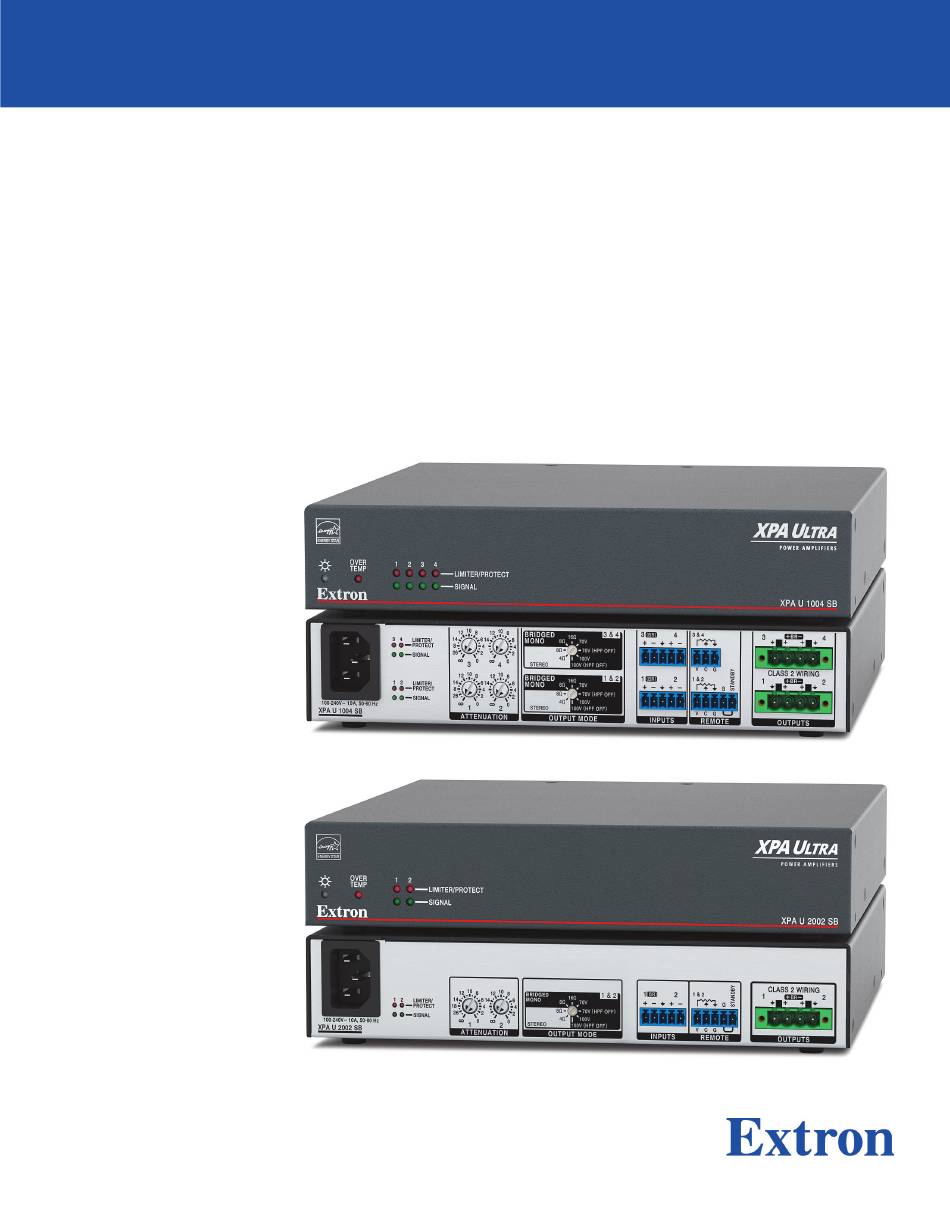

- Page 1 User Guide XPA Ultra Series XPA U 1004 SB and XPA U 2002 SB Half-Rack Audio Power Amplifiers 68‑3579‑01 Rev. A 02 21...
- Page 2 Safety Instructions Safety Instructions • English WARNING: This symbol, , when used on Instructions de sécurité • Français the product, is intended to alert the user of the AVERTISSEMENT : Ce pictogramme, , lorsqu’il presence of uninsulated dangerous voltage within est utilisé...
- Page 3 Инструкция по технике безопасности • Русский • 安全说明 简体中文 ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан 警告： 产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险 на продукте, предупреждает пользователя о наличии 电压， 有触电危险。 неизолированного опасного напряжения внутри корпуса продукта, которое может привести к поражению электрическим током. 注意： 产品上的这个标志意在提示用户, 设备随附的用户手册中有重...
- Page 4 FCC Class B Notice NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: Risk of property damage. Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier.
-
Page 6: Table Of Contents
Introduction ..........1 About this Guide ..........1 Features .............. 2 Installation ..........4 Mounting the XPA Ultra Series Amplifier ....4 Tabletop Use ........... 5 UL Rack Mounting Guidelines ......6 Rack Mounting ..........5 Rack Ear Mounting .......... 5 Bridge Plate Rack Mounting ...... -
Page 8: Introduction
Introduction This section gives an overview of the Extron XPA Ultra Series: XPA U 1004 SB and XPA U 2002 SB Half-Rack Four-Channel/Two-Channel audio power amplifiers. Topics include: About this Guide • About the XPA U 1004 SB and XPA U 2002 SB •... -
Page 9: Features
— The XPA U 1004 SB and the XPA U 2002 SB do not have internal fans or • vents for cooling, ensuring quiet reliable operation. The units generate substantially less heat than conventional power amplifiers, making the XPA Ultra Series ideal for rack-mount applications where space is limited. Rack Mounting Ventilation Recommendations on page 7. - Page 10 Ultra low inrush current at power up - no need for power sequencing — Allows • multiple XPA Ultra amplifier to be powered on simultaneously without overloading power circuits. This eliminates the need for power sequencing. Power factor correction - removes harmonic content on AC line — The XPA U •...
-
Page 11: Installation
Installation This section describes the installation and setup of the XPA U 1004 SB and XPA U 2002 SB. Topics include: Mounting the XPA Ultra Series Amplifiers • Flexible Conduit Adapter Kit Installation • Mounting the XPA Ultra Series Amplifiers... -
Page 12: Rack Mounting
The XPA U 1004 SB and XPA U 2002 SB ships with a bridge plate connector to allow two amplifiers to be connected together and form a full rack-width unit. Mount two XPA Ultra Series amplifiers by doing the following: If the rubber feet are installed on the bottom of the amplifier, remove them. -
Page 13: Rack Shelf Mounting
Mounting screws (4) Figure 3. Installing XPA Ultra Series Bridge Plate Insert the amplifiers into the rack and align the holes in the rack ears with the holes in the rack. Secure the amplifiers to the rack using four provided 10-32 3/4” screws (see figure 4,... - Page 14 Attach the rack to the shelf by using the four 10-32 x 3/4” screws provided with the shelf. Insert the screws through #10 beveled washers, then through the holes in the rack (see Figure 5, below). RSU 129 1U Universal Rack Shelf (2) 4-40 x 3/16"...
-
Page 15: Flexible Conduit Adapter Kit Installation
The optional Flexible Conduit Adapter Kit includes the following parts: • One conduit adapter plate (pre-attached), for PS 124 and XPA Series amplifiers One conduit adapter plate for XPA Ultra Series and NetPA Ultra Series amplifiers • (not attached) XPA U 1004 SB and XPA U 2002 SB • Installation... - Page 16 One 6 foot long electrical conduit • • Three 7.5 foot, 18-gauge power wires with spade connectors • Three auxiliary crimp-style spade connectors designed for 14- to 16-gauge wires One UL-rated zip tie wrap • The kit provides a way to replace the IEC power cord with a conduit, where required by local codes.
- Page 17 NetPA Ultra Series Conduit Adapter Plate Figure 10. Secure XPA Ultra Series Adapter Plate to Conduit Thread the blue, brown, and green 18-gauge power wires that are included with the flexible conduit adapter kit through the length of the electrical conduit.
- Page 18 Install the conduit with the new conduit plate attached into the opening from where the IEC connector removed in step 5 (see figure 8 on page 10). Connect the blue hot (line) and the brown neutral wires to the terminal block on the PCB using the two screws removed back in step 3.
-
Page 19: Operation
Operation This section describes the installation and setup of the XPA U 1004 SB and XPA U 2002 SB. Topics include: Front Panel Features • Rear Panel Features • Troubleshooting • Front Panel Features POWER AMPLIFIERS OVER TEMP LIMITER/PROTECT SIGNAL XPA U 1004 SB POWER AMPLIFIERS OVER... -
Page 20: Rear Panel Features
Channel Status LEDs — (see figure 12 on page 12) Two rows of LEDs that represent the amplifier’s channels. • Limiter/Protect LED — The LEDs lights red when the channel is in protection mode, which is triggered by any of the limiter protection circuits such as: •... - Page 21 Set the source device volume to the maximum level. No sound should come out. Raise the attenuation on the XPA Ultra Series amplifier until sound distortion occurs, then lower the attenuation level slowly until distortion disappears. This setting ensures no clipping occurs, whatever the source device volume setting is.
- Page 22 NOTE: XPA U 2002 SB shown. Channels 3 and 4 of the XPA U 1004 SB are configured in the same way. Output Mode Selector Switches — (see figure 14 page 14) Each channel features a 8-position rotary switch 1 & 2 BRIDGED MONO to set the output mode for specific channels (see figure on...
- Page 23 WARNING: AVERTISSEMENT : • Do not tie channel output pins to each other or to ground. Doing so will short out the outputs, damage the amplifier, or both. • Ne pas lier les sorties 1 et 2 des canaux entre elles ou à la terre. Les sorties pourraient être court-circuitées et/ou l’amplificateur pourrait être endommagé.
-
Page 24: Remote Standby Port
Options for remote control include the Extron VC 50, VCM 110 AAP, VCM 200 series, MLA VC10 Plus, and select MLC controllers. For information on these devices, including part numbers, go to www.extron.com. Third party 10k potentiometer volume controllers can also be used for remote volume and mute control (see figure above for details) 10 V (Pin 1) Vol/Mute... -
Page 25: Troubleshooting
Troubleshooting The front and rear panels have LED warning indicators, as described below. Amplifier Fails to Exit Standby Mode Promptly The input channel signal LED lights green when an input signal is detected. Power LED Color Signal LED State Problem Description Problem Solution Amber Not lit... -
Page 26: Amplifier Enters Standby Mode Too Early
Amplifier Enters Standby Mode Too Early The input channel signal LED lights green per indicated input channel when an input signal is detected. Power LED Color Signal LED State Problem Description Problem Solution The output signal Green or Amber Lit intermittently Enters standby mode early level of the source may be too low to... -
Page 27: Extron Warranty
Extron Warranty Extron warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
