3. Remove the two screws holding the blue hot (line) and the brown neutral wires from the
terminal block on the PCB. Put the screws to the side to be used later (see figure 6).
4.
Remove the ground wire nut from the grounding stud located on the bottom of the
enclosure, as shown below. Place the wire nut with the other screws to be used later.
5. Remove the wires attached to the IEC connector from the body of the amplifier, and
slide the IEC connector and attached wires up and out of the amplifier enclosure.
Disconnect cables
and remove IEC
connector.

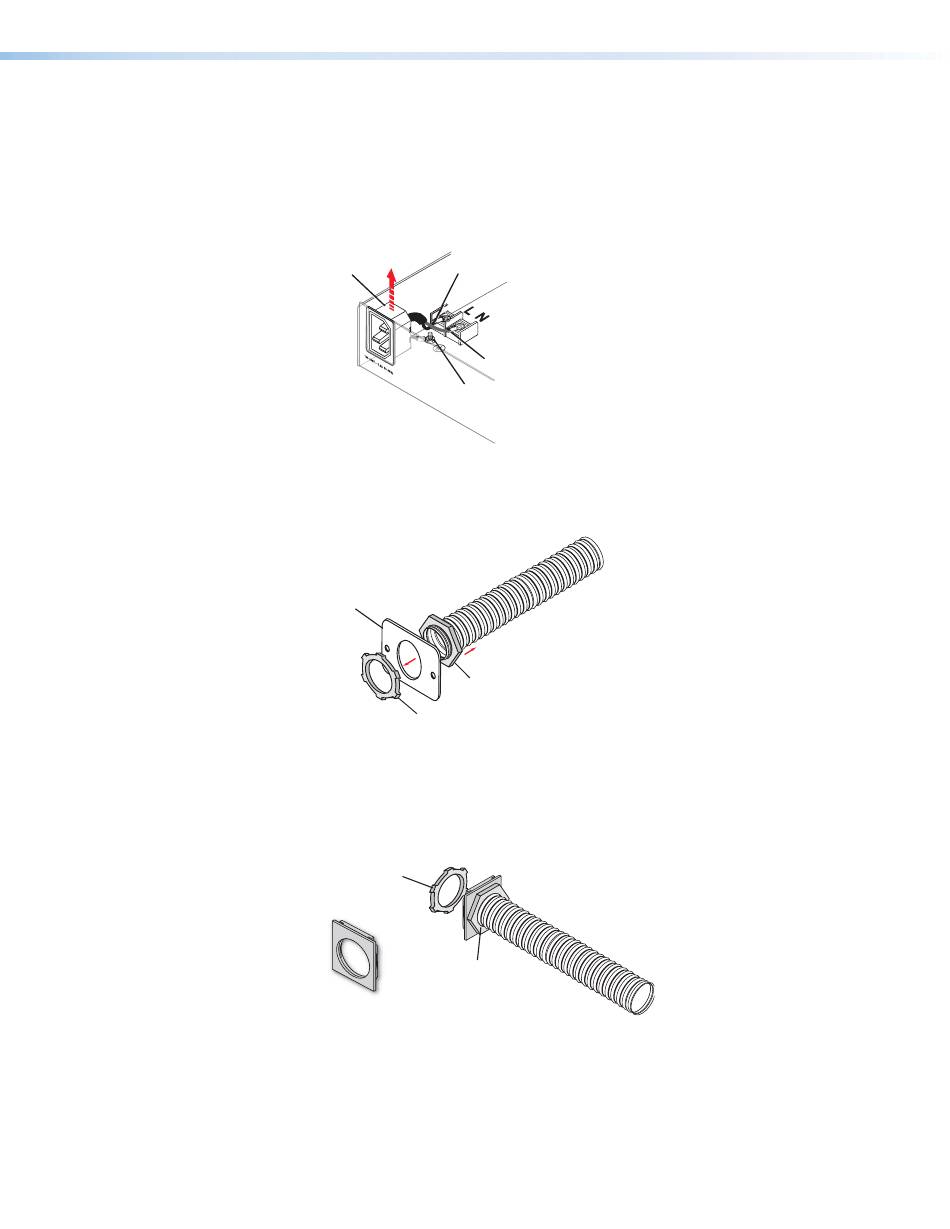

Figure 6. Removing the IEC Connector
6. Remove the washer at the end of the conduit (Washer-B), and remove the conduit
adapter plate that ships attached to the conduit.
Separate adapter plate
and washer from conduit
Conduit Adapter Plate
Washer-B
Figure 7. Removing the Existing Adapter Plate
7. Place the adapter plate that ships with the conduit kit on the conduit, with the flat side
of the plate facing the hexgonal nut (washer-A), and secure the new plate to conduit
with the washer that was removed back in step 6 (washer-B).
Washer-B
NetPA Ultra Series Conduit
Adapter Plate
Figure 8. Secure NetPA Ultra Series Adapter Plate to Conduit
8. Thread the blue, brown, and green 18-gauge power wires that are included with the
flexible conduit adapter kit through the length of the electrical conduit.
9. Install the conduit with the new conduit plate attached into the opening from where the
IEC connector was removed in step 5 (see
Blue Wire
Brown Wire
Remove nut
Washer-A
Place the adapter plate
with the flat side against
washer-A and secure with
washer-B.
Washer-A
figure 9 on the next page).
NetPA U 2002 SB User Guide • Installation 10
