OK Button — (see figure 40
6
parameters and closes the Compressor dialog box.
Cancel Button — (see
7
contained parameters back to their states when the current instance of the Compressor
dialog box was opened and closes the dialog box.
Dynamics Help Button — (see
8
Operation topic of the DSP Configurator Help File for further assistance in operating
dynamics processors.
Limiter

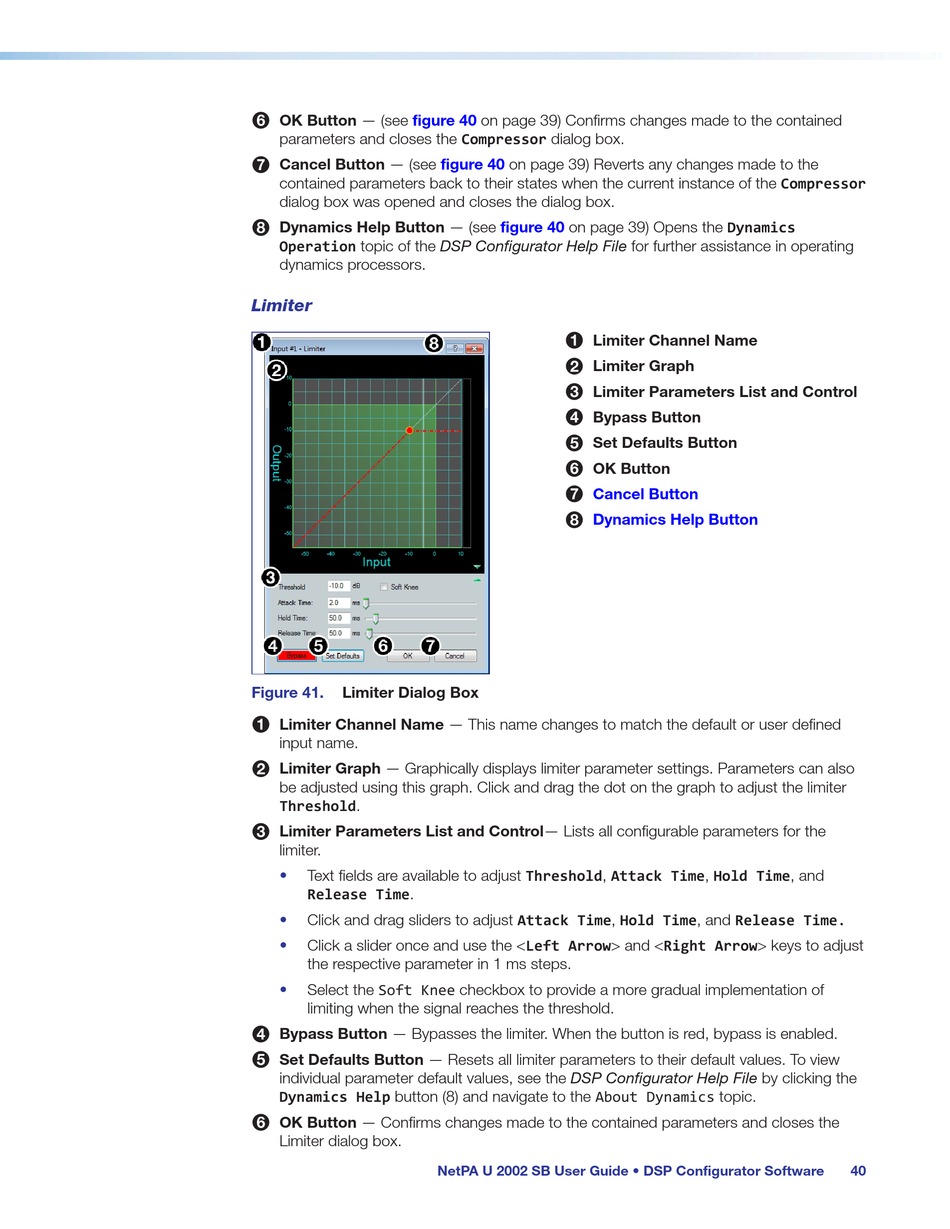

Figure 41. Limiter Dialog Box
Limiter Channel Name — This name changes to match the default or user defined
1
input name.
Limiter Graph — Graphically displays limiter parameter settings. Parameters can also
2
be adjusted using this graph. Click and drag the dot on the graph to adjust the limiter
Threshold.
Limiter Parameters List and Control— Lists all configurable parameters for the
3
limiter.
• Text fields are available to adjust Threshold, Attack Time, Hold Time, and
Release Time.
• Click and drag sliders to adjust Attack Time, Hold Time, and Release Time.
• Click a slider once and use the <Left Arrow> and <Right Arrow> keys to adjust
the respective parameter in 1 ms steps.
Select the Soft Knee checkbox to provide a more gradual implementation of
•
limiting when the signal reaches the threshold.
Bypass Button — Bypasses the limiter. When the button is red, bypass is enabled.
4
Set Defaults Button — Resets all limiter parameters to their default values. To view
5
individual parameter default values, see the DSP Configurator Help File by clicking the
Dynamics Help button (8) and navigate to the About Dynamics topic.
OK Button — Confirms changes made to the contained parameters and closes the
6
Limiter dialog box.
on page 39) Confirms changes made to the contained
figure 40
on page 39) Reverts any changes made to the
figure 40 on page 39) Opens the Dynamics
Limiter Channel Name
1
Limiter Graph
2
Limiter Parameters List and Control
3
Bypass Button
4
Set Defaults Button
5
OK Button
6
Cancel Button
7
Dynamics Help Button
8
NetPA U 2002 SB User Guide • DSP Configurator Software 40
