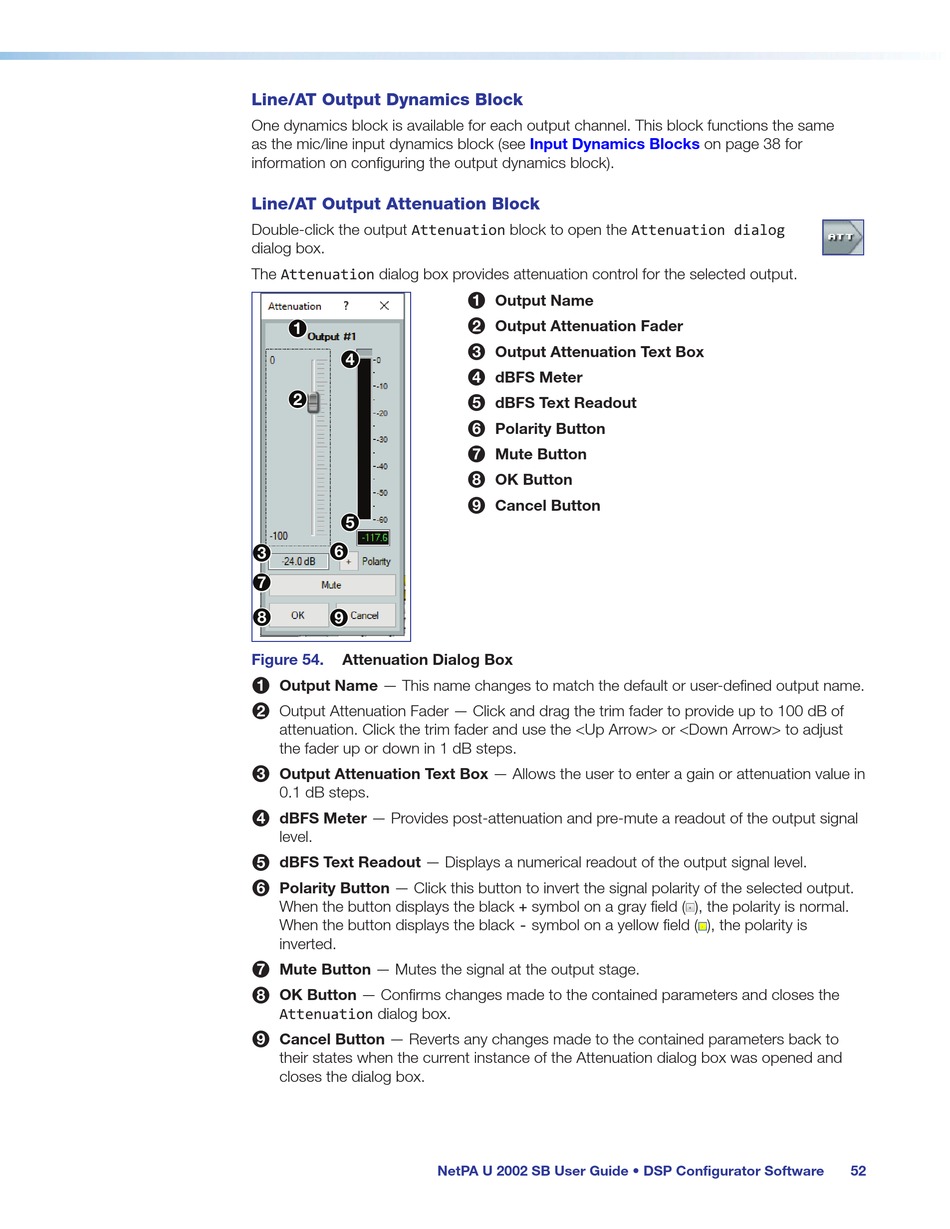

Line/AT Output Dynamics Block
One dynamics block is available for each output channel. This block functions the same
as the mic/line input dynamics block (see
information on configuring the output dynamics block).
Line/AT Output Attenuation Block
Double-click the output Attenuation block to open the Attenuation dialog
dialog box.
The Attenuation dialog box provides attenuation control for the selected output.
1
4
2
5
6
3
7
8
9
Figure 54. Attenuation Dialog Box
Output Name — This name changes to match the default or user-defined output name.
1
Output Attenuation Fader — Click and drag the trim fader to provide up to 100 dB of
2
attenuation. Click the trim fader and use the <Up Arrow> or <Down Arrow> to adjust
the fader up or down in 1 dB steps.
Output Attenuation Text Box — Allows the user to enter a gain or attenuation value in
3
0.1 dB steps.
dBFS Meter — Provides post-attenuation and pre-mute a readout of the output signal
4
level.
dBFS Text Readout — Displays a numerical readout of the output signal level.
5
Polarity Button — Click this button to invert the signal polarity of the selected output.
6
When the button displays the black + symbol on a gray field ( ), the polarity is normal.
When the button displays the black - symbol on a yellow field ( ), the polarity is
inverted.
Mute Button — Mutes the signal at the output stage.
7
OK Button — Confirms changes made to the contained parameters and closes the
8
Attenuation dialog box.
Cancel Button — Reverts any changes made to the contained parameters back to
9
their states when the current instance of the Attenuation dialog box was opened and
closes the dialog box.
Input Dynamics Blocks
Output Name
1
Output Attenuation Fader
2
Output Attenuation Text Box
3
dBFS Meter
4
dBFS Text Readout
5
Polarity Button
6
Mute Button
7
OK Button
8
Cancel Button
9
