Device Settings

The Device Settings dialog box provides access to general settings of a NetPA Ultra
Series amplifier. Select Tools > Device Settings to open the Device Settings dialog
box. Device settings are only available when connected live to a device.
Within the Device Settings dialog box, the following tabs are available:
•

Unit Info

The Unit Info tab displays the unit name, firmware version, device model, device part
number, and device MAC address.

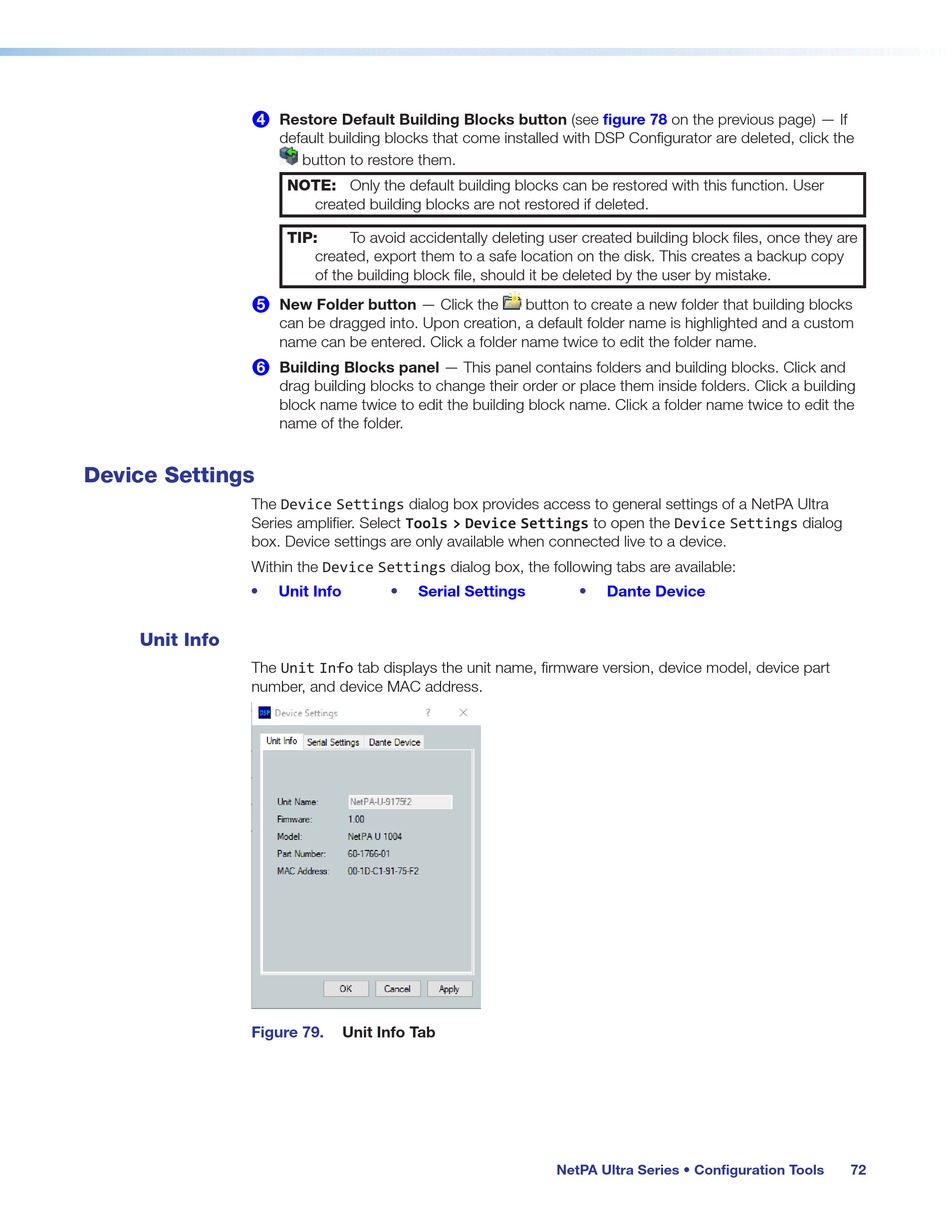

Figure 79.
Restore Default Building Blocks button (see
default building blocks that come installed with DSP Configurator are deleted, click the
button to restore them.
NOTE: Only the default building blocks can be restored with this function. User
created building blocks are not restored if deleted.
TIP: To avoid accidentally deleting user created building block files, once they are
created, export them to a safe location on the disk. This creates a backup copy
of the building block file, should it be deleted by the user by mistake.
New Folder button — Click the
can be dragged into. Upon creation, a default folder name is highlighted and a custom
name can be entered. Click a folder name twice to edit the folder name.
Building Blocks panel — This panel contains folders and building blocks. Click and
drag building blocks to change their order or place them inside folders. Click a building
block name twice to edit the building block name. Click a folder name twice to edit the
name of the folder.
Unit Info Serial Settings
•
Unit Info Tab
figure 78 on the previous page) — If
button to create a new folder that building blocks
Dante Device
•
NetPA Ultra Series • Configuration Tools 72
