Input Filter Block
Double-click the Filter block to open the filter drop-down list. Select one of the six
available filters to insert into the block.

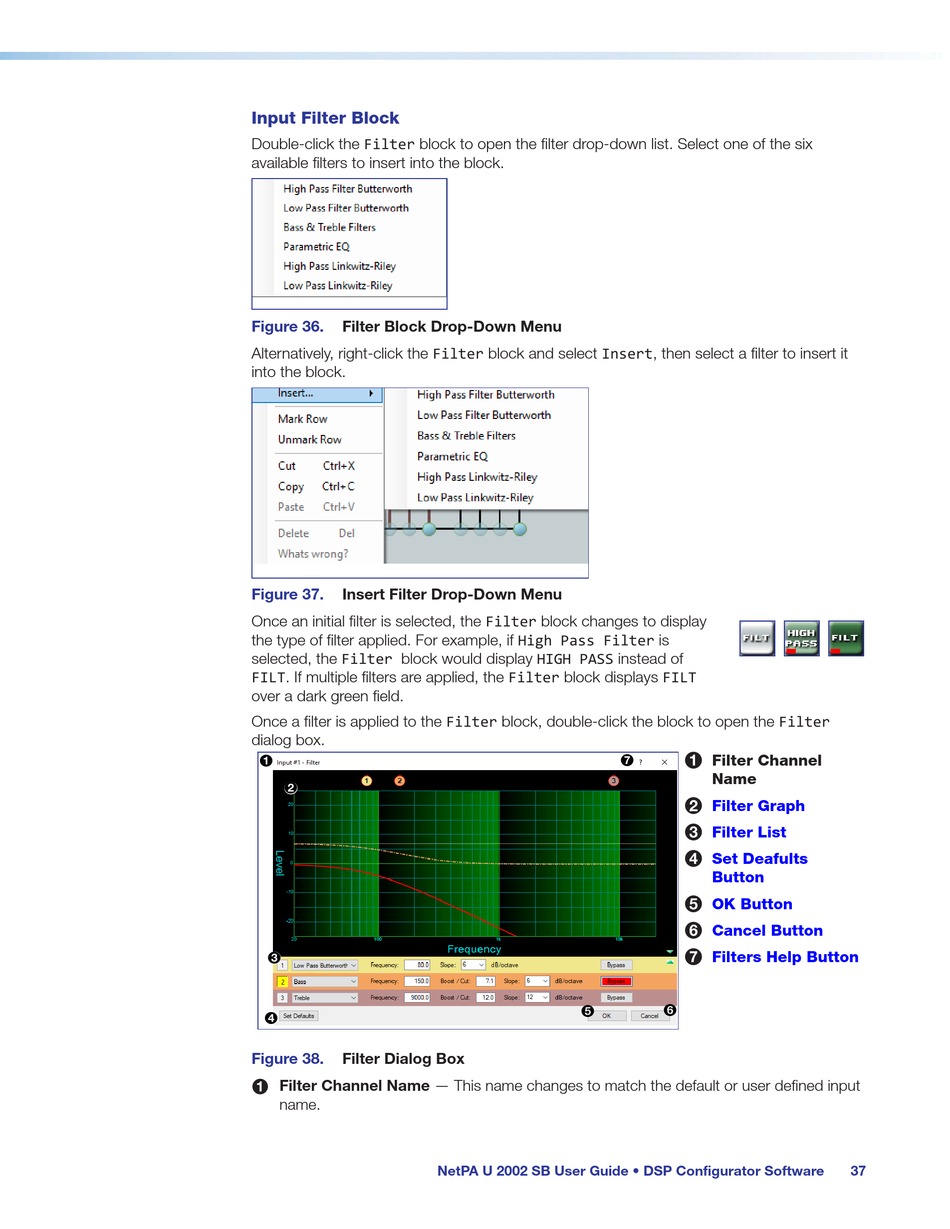

Figure 36. Filter Block Drop-Down Menu
Alternatively, right-click the Filter block and select Insert, then select a filter to insert it
into the block.
Figure 37. Insert Filter Drop-Down Menu
Once an initial filter is selected, the Filter block changes to display
the type of filter applied. For example, if High Pass Filter is
selected, the Filter block would display HIGH PASS instead of
FILT. If multiple filters are applied, the Filter block displays FILT
over a dark green field.
Once a filter is applied to the Filter block, double-click the block to open the Filter
dialog box.
1
2
3
4
Figure 38. Filter Dialog Box
Filter Channel Name — This name changes to match the default or user defined input
1
name.
