Adaptive Gain
After inserting an adaptive gain processor, double-click the AG icon to open the
Adaptive Gain dialog box.
1
2

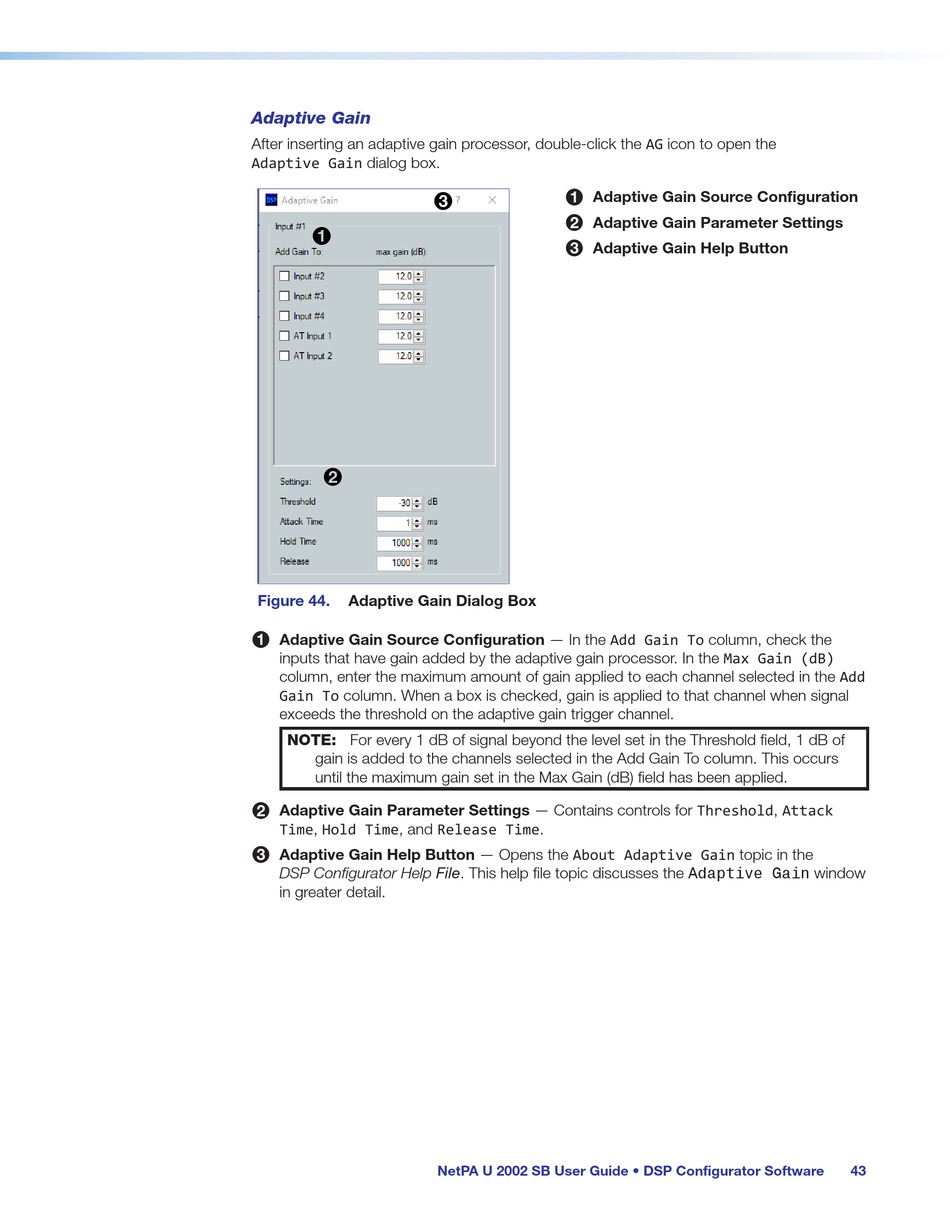

Figure 44. Adaptive Gain Dialog Box
Adaptive Gain Source Configuration — In the Add Gain To column, check the
1
inputs that have gain added by the adaptive gain processor. In the Max Gain (dB)
column, enter the maximum amount of gain applied to each channel selected in the Add
Gain To column. When a box is checked, gain is applied to that channel when signal
exceeds the threshold on the adaptive gain trigger channel.
NOTE: For every 1 dB of signal beyond the level set in the Threshold field, 1 dB of
gain is added to the channels selected in the Add Gain To column. This occurs
until the maximum gain set in the Max Gain (dB) field has been applied.
Adaptive Gain Parameter Settings — Contains controls for Threshold, Attack
2
Time, Hold Time, and Release Time.
Adaptive Gain Help Button — Opens the About Adaptive Gain topic in the
3
DSP Configurator Help File. This help file topic discusses the Adaptive Gain window
in greater detail.
Adaptive Gain Source Configuration
1
3
Adaptive Gain Parameter Settings
2
Adaptive Gain Help Button
3
