Rack Shelf Mounting

The NetPA U 2002 SB can be mounted on a shelf using the optional RSU 129 1U Universal
Rack Shelf Kit.
Mount the amplifier with the shelf as follows:
1.
2.
3.
4.
Mounting
screws (4)

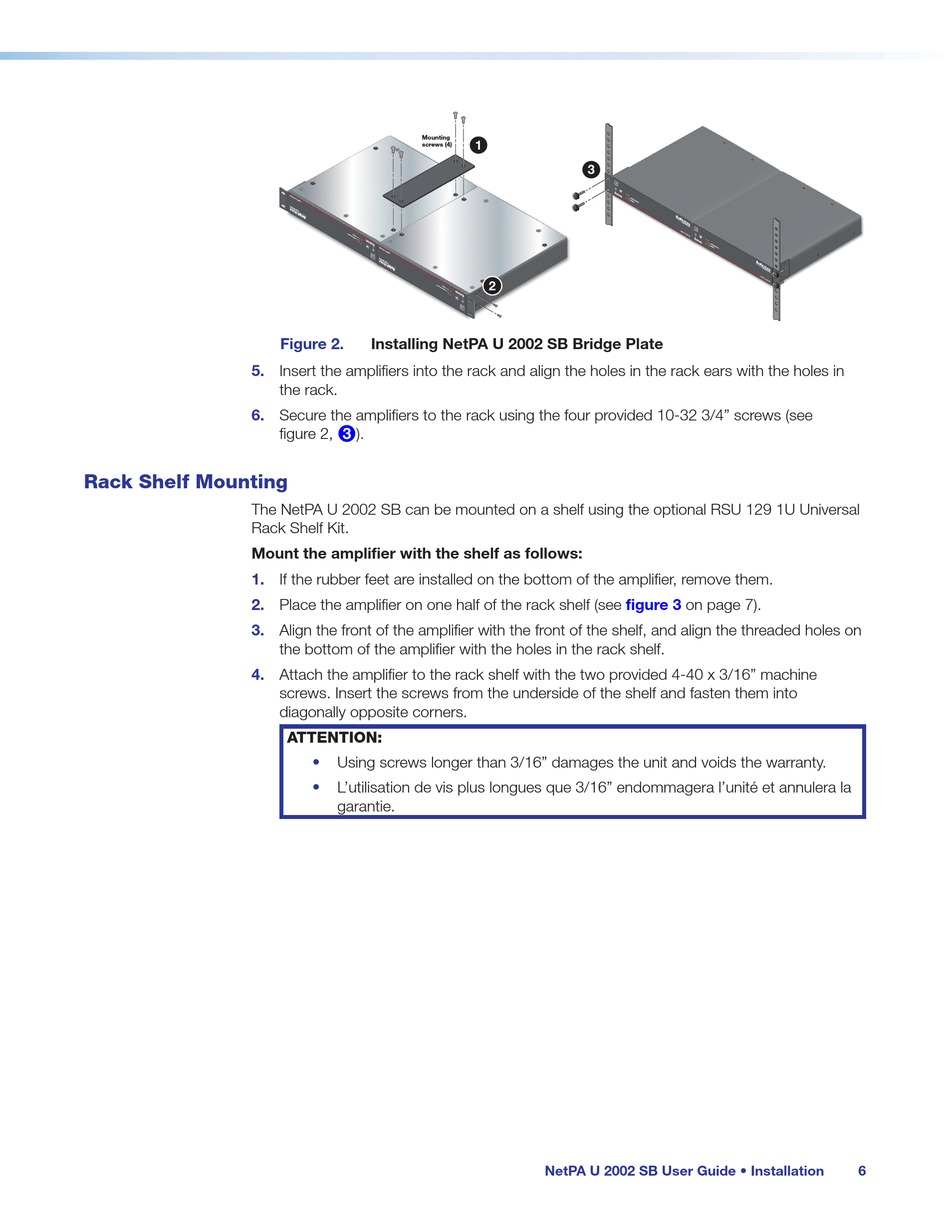

Figure 2. Installing NetPA U 2002 SB Bridge Plate
Insert the amplifiers into the rack and align the holes in the rack ears with the holes in
the rack.
Secure the amplifiers to the rack using the four provided 10-32 3/4" screws (see
figure 2, ).
3
If the rubber feet are installed on the bottom of the amplifier, remove them.
Place the amplifier on one half of the rack shelf (see
Align the front of the amplifier with the front of the shelf, and align the threaded holes on
the bottom of the amplifier with the holes in the rack shelf.
Attach the amplifier to the rack shelf with the two provided 4-40 x 3/16" machine
screws. Insert the screws from the underside of the shelf and fasten them into
diagonally opposite corners.
ATTENTION:
• Using screws longer than 3/16" damages the unit and voids the warranty.
• L'utilisation de vis plus longues que 3/16" endommagera l'unité et annulera la
garantie.
