Rear Panel Features

1
100-240V 1.0A, 50-60Hz
NetPA U 2002 SB
IEC Power Receptacle
1
Mic/Line Inputs
2
Channel Status Indicators
3
Figure 16.
NOTE:
1
2
3
When digital clipping is detected on the output of the DSP going into the
•
amplifier channel.
• When the channel overheats.
• Signal LED — This LED lights green when the output signal from a DSP channel
that goes to an amplifier channel crosses the DSP signal detection threshold. The
threshold is -59dBFS.
NOTE:
The LEDs are also located on the rear panel.
2
1 2 3 4 1
MIC/LINE INPUTS LINE OUTPUTS
LIMITER/PROTECT
SIGNAL
4
5
6

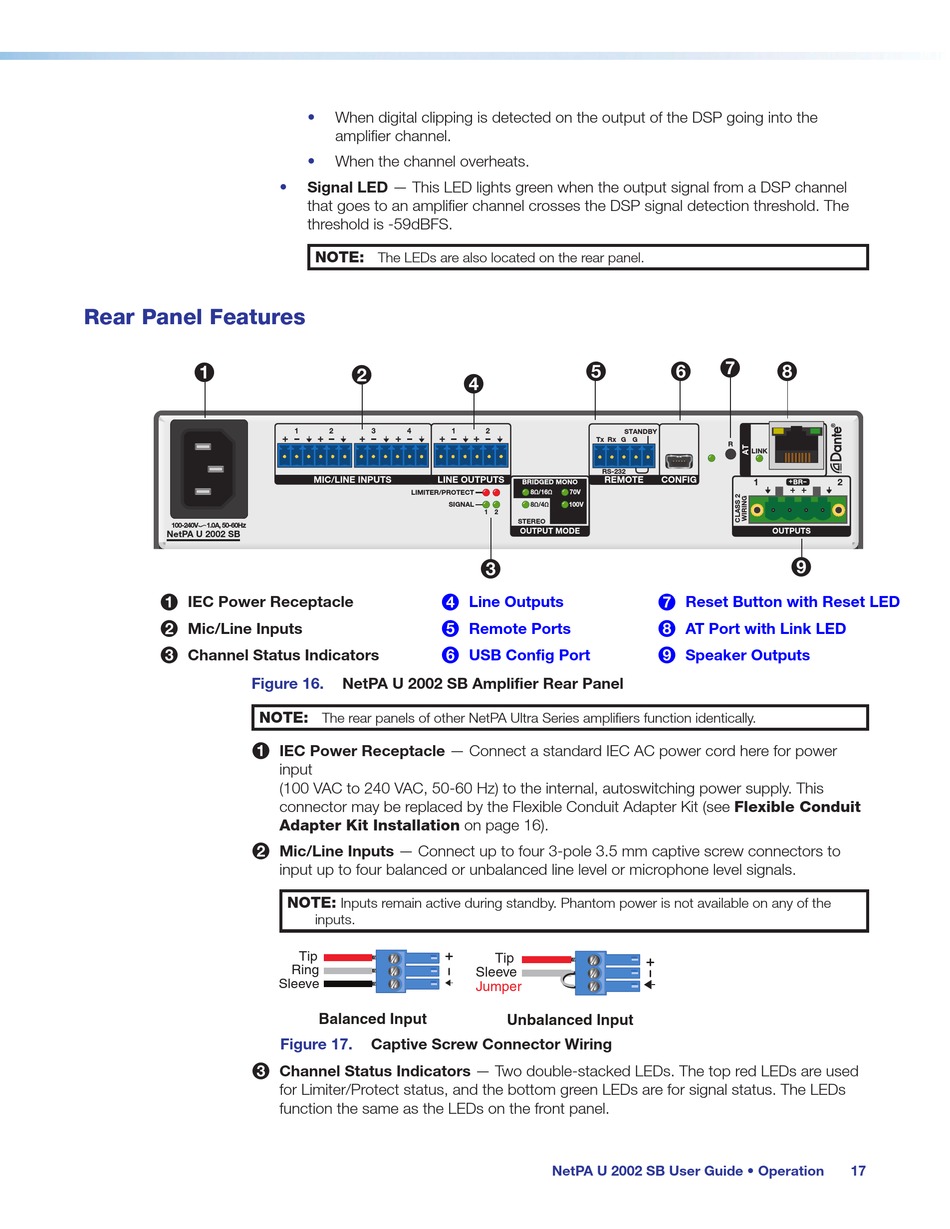

NetPA U 2002 SB Amplifier Rear Panel
The rear panels of other NetPA Ultra Series amplifiers function identically.
IEC Power Receptacle — Connect a standard IEC AC power cord here for power
input
(100 VAC to 240 VAC, 50-60 Hz) to the internal, autoswitching power supply. This
connector may be replaced by the Flexible Conduit Adapter Kit (see Flexible Conduit
Adapter Kit Installation on page 16).
Mic/Line Inputs — Connect up to four 3-pole 3.5 mm captive screw connectors to
input up to four balanced or unbalanced line level or microphone level signals.
NOTE:
Inputs remain active during standby. Phantom power is not available on any of the
inputs.
Tip
Ring
Sleeve
Balanced Input
Figure 17. Captive Screw Connector Wiring
Channel Status Indicators — Two double-stacked LEDs. The top red LEDs are used
for Limiter/Protect status, and the bottom green LEDs are for signal status. The LEDs
function the same as the LEDs on the front panel.
5
4
2
STANDBY
Tx Rx G G
RS-232
REMOTE
BRIDGED MONO
8 /16 70V
8 /4 100V
1 2
STEREO
OUTPUT MODE
3
Line Outputs
Remote Ports
USB Config Port
Tip
Sleeve
Jumper
Unbalanced Input
NetPA U 2002 SB User Guide • Operation
7
6 8
R
LINK
CONFIG
1 + BR-
OUTPUTS
9
Reset Button with Reset LED
7
AT Port with Link LED
8
Speaker Outputs
9
2
17
