7.18
7.18.1
Water, spare
parts, tool
Topping up
Wiping
Maintenance manual
GMK7450

Other maintenance work

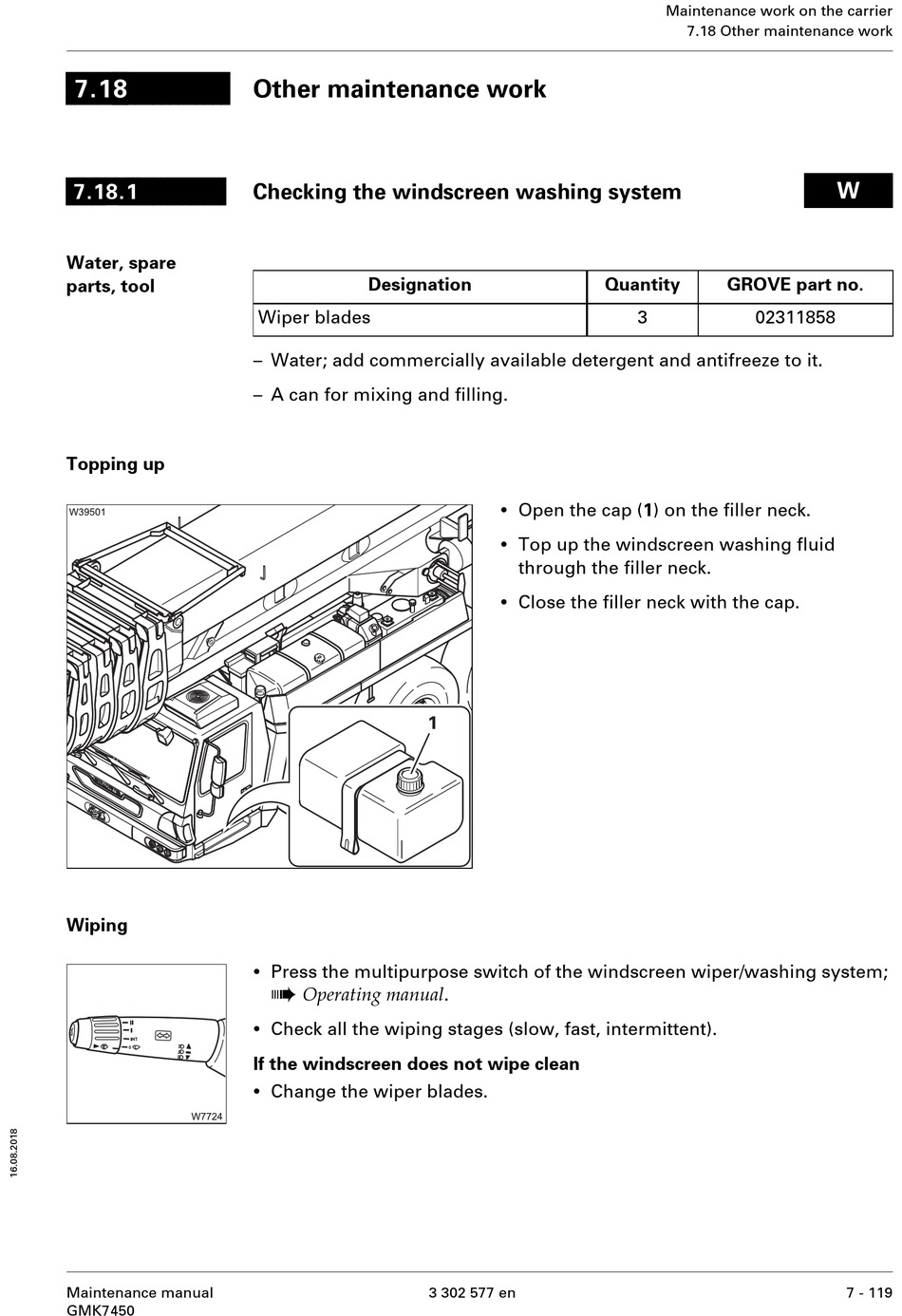

Checking the windscreen washing system

Designation
Wiper blades
– Water; add commercially available detergent and antifreeze to it.
– A can for mixing and filling.
•
Press the multipurpose switch of the windscreen wiper/washing system;
à
Operating manual .
•
Check all the wiping stages (slow, fast, intermittent).
If the windscreen does not wipe clean
•
Change the wiper blades.
•
Open the cap (1) on the filler neck.
•
Top up the windscreen washing fluid
through the filler neck.
•
Close the filler neck with the cap.
3 302 577 en
Maintenance work on the carrier
7.18 Other maintenance work
Quantity GROVE part no.
3 02311858
W
7 - 119
