⿎ Inputting control codes to bar code/2D code character strings
To input the control codes in the barcode/2D code strings using the communication commands (STR or SIN command),
select the input method for control codes at the system settings of Laser Marker NAVI smart.
Reference
• This setting is used only for the control codes in the barcode/2D code strings, but not for the general control codes used
for the command format such as STX and CR.
1.
Connect the laser marker and Laser Marker NAVI smart online.
2.
Select "System settings" by clicking the screen selection menu.
3.

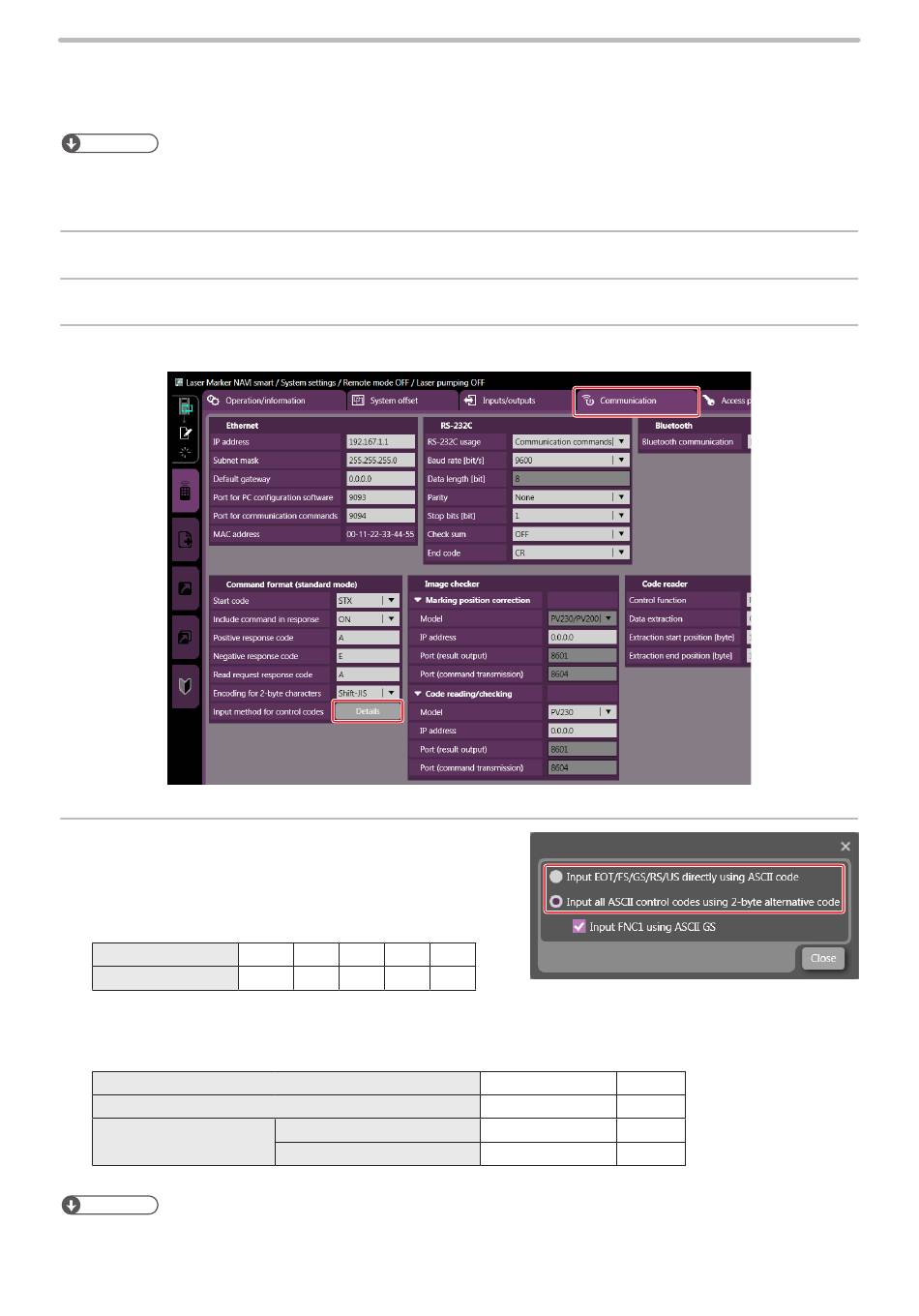

Select the "Communication " tab and click "Details" of "Input method for control codes".
4.
Select the input method.
• Input EOT/FS/GS/RS/US directly using ASCII code:
For the control codes EOT, FS, GS, RS, or US you can set by
using ASCII code. For the other control codes, use the 2-byte
alternative codes.
Control code
ASCII code (HEX)
• Input all ASCII control codes using 2-byte alternative code (Initial setting):
Input 2-byte alternative code (HEX) for the all ASCII control codes. The alternative code is defined by the setting of
"Encoding for 2-byte characters" as follows.
Control code
ASCII code (HEX)
Alternative code (HEX)
Reference
• This setting is applied also to the response data for the readout.
40
EOT FS GS RS
04 1C 1D 1E
when Shift JIS is selected
when GB 2312 is selected
