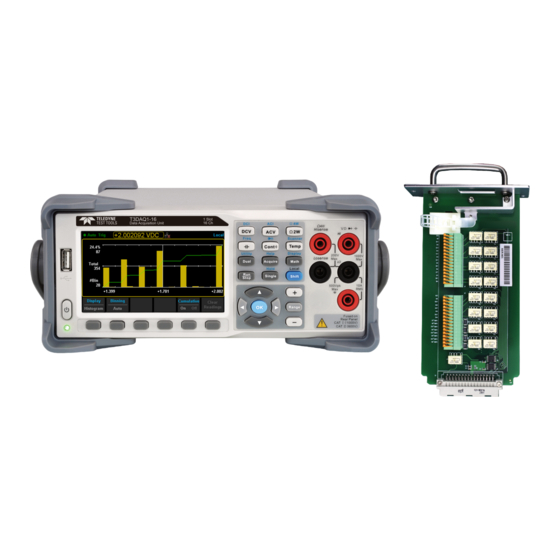

Teledyne T3DAQ1-16 User Manual

Data acquisition system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5 Commonwealth Ave
Woburn, MA 01801
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

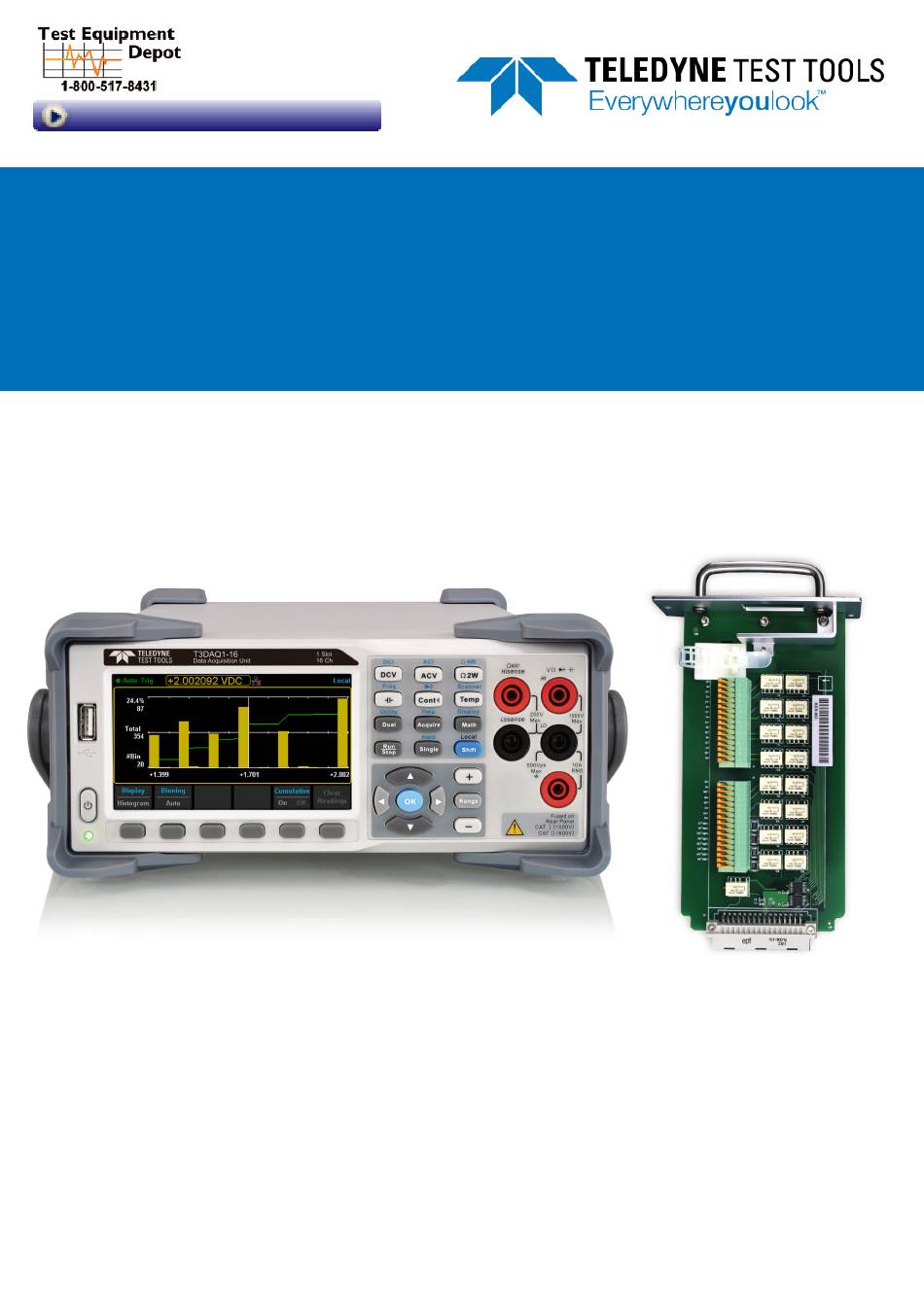

T3DAQ1-16
Data Acquisition System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T3DAQ1-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne T3DAQ1-16

Summary of Contents for Teledyne T3DAQ1-16

  • Page 1 5 Commonwealth Ave Woburn, MA 01801 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com T3DAQ1-16 Data Acquisition System User Manual...

  • Page 2: General Safety Summary

    Before connecting to the instrument, read the manual to understand the input/output ratings. Do not operate with suspected failures. If you suspect that the instrument is damaged, contact the Teledyne LeCroy service department immediately. Do not operate in wet/damp conditions.
  • Page 3 T3DAQ1-16 User Manual Safety Terms and Symbols The following terms may appear on the instrument: DANGER: Direct injury or hazard may occur. WARNING: Potential injury or hazard may occur. CAUTION: Potential damage to instrument/property may occur. : IEC Measurement Category I, applicable for making measurements on ‘other’ circuits that CAT I are not directly connected to mains.
  • Page 4 T3DAQ1-16 User Manual Operating Environment Temperature: 0 °C to 40 °C Humidity: 5% to 90% relative humidity (non-condensing) up to +30°C. Upper limit derates to 50% relative humidity (non-condensing) at +40°C. Altitude: ≤ 2000 m Use indoors only. Pollution Degree 2. Use in an operating environment where normally only dry, non-conductive pollution occurs.
  • Page 5 T3DAQ1-16 User Manual Input Terminal Protection Limitation Protection limitation is defined for the input terminal. 1. Main Input (HI and LO) Terminals HI and LO terminals are used for Voltage, Resistance, Capacitance, Continuity, Frequency, Diode and Temperature measurement. Two protection limitations are defined: •...
  • Page 6 T3DAQ1-16 User Manual IEC Measurement Category II Overvoltage Protection To avoid the danger of electric shock, the Data Acquisition Unit provides overvoltage protection for line-voltage mains connections that meet both of the following conditions: 1. The HI and LO input terminals are connected to the mains under Measurement Category II conditions described in the warning below.

  • Page 7: Daily Maintenance And Cleaning

    T3DAQ1-16 User Manual Daily Maintenance and Cleaning Maintenance Protect the liquid crystal display from direct sunlight when storing or using the instrument. NOTE: To avoid damage to the instrument or test leads, please don’t place them in mist, liquid or solvent.

  • Page 8: Introdution To T3Daq1-16

    R& D burn-in and production testing. A great feature of the Teledyne Test Tools T3DAQ is its ability to make highly accurate True RMS AC Voltage and Current measurements, meaning no loss of accuracy even when measuring com- plex voltage and current waveforms.

  • Page 9: Table Of Contents

    Introdution to T3DAQ1-16 ........vii...
  • Page 10 Certifications ......... . . 97 © 2021 Teledyne LeCroy, Inc. All rights reserved. Teledyne Test Tools is a brand and trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders. Specifications, prices,...

  • Page 11: Quick Start

    Teledyne LeCroy for service or calibration. The consigner or carrier will be responsible for damage to the instrument resulting from ship- ping. Teledyne LeCroy will not provide free maintenance or replacement in this instance. 2. Inspect the instrument.

  • Page 12: Dimensions

    T3DAQ1-16 User Manual Dimensions...

  • Page 13: Handle Adjustment

    T3DAQ1-16 User Manual Handle Adjustment To adjust the handle position of the DAQ, grip the handle by the two sides and pull outward. Then, rotate the handle to the appropriate position.

  • Page 14: Front Panel

    T3DAQ1-16 User Manual Front Panel A USB Host Users can store the current state or measurement data into a USB storage device. Users can also read the state files or updated firmware from a USB storage device. B Power Key Turn the instrument on or off.
  • Page 15 T3DAQ1-16 User Manual E Measurement and Assistant Function Keys...
  • Page 16 T3DAQ1-16 User Manual F Range and Direction Keys G Signal Input Terminals The measured signal (device) will be connected into the DAQ through these terminals. Dif- ferent measurement objects have different connection methods. For details, please refer to “Measurement Connections”.

  • Page 17: Rear Panel

    T3DAQ1-16 User Manual Rear Panel A Power Socket The DAQ accepts two types of AC supplies. Please use the power cord provided in the accessories to connect the DAQ to the AC power through this socket. Note: The correct voltage scale must be first selected (through the Voltage Se- lector) before power connection.
  • Page 18 T3DAQ1-16 User Manual C AC Voltage Selector Select the correct voltage scale (110 V or 220 V) for the AC supply used. D 16-channel Data Acquisition Module E USB Device Connect the PC through this interface. SCPI commands or PC software can be used to control the DAQ remotely.

  • Page 19: Starting The Daq

    2. Ensure that the wall socket has power and is turned on. 3. Try to restart the DAQ, if it fails, check the power fuse and replace with a new one if necessary. 4. If the problem still remains, please contact the Teledyne LeCroy service department for help.

  • Page 20: Operating Instructions

    T3DAQ1-16 User Manual Operating Instructions NOTE: The Scanner Card is not designed to be ”Hot Swappable”. Please make sure the instrument is turned off before installation or removal of the Scanner Card. Hot swapping the card could cause damage to the instrument and is not covered under warranty.
  • Page 21 T3DAQ1-16 User Manual Scanner Card Connections An example of 2-wired connection application is shown below. First 12 channels can be used to measure DCV/DCI ACV/ACI/CAP/FREQ/DIODE/CONT/TEMP and the last 4 channels are dedicated to current measurement. 4-Wire Resistance measurement example is shown below.
  • Page 22 T3DAQ1-16 User Manual Front Panel Operations Scanner mode functions can be accessed by pressing ”Shift” and ”Temp” buttons. The following table gives a short description about different functions available. Function Menu Settings Description Mode Scan/Step Set the operation mode Sets the duration between...
  • Page 23 T3DAQ1-16 User Manual •Manual: Sets the number of scan operations by direction keys. The range of the setting is from 1 to 999. After starting the scan operation the instrument will not stop scanning until reaches cycle number. 4. Channel setup Press the [Channel Setup] to enter the setup interface.
  • Page 24 T3DAQ1-16 User Manual Function Menu Description DCV/ACV/ Auto, 200mV, 2V, 20V, 200V DCI/ACI 2A (fixed) Auto, 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 10MΩ, 2W/4W 100MΩ The scanner function provides two measurement speeds: Fast (50 reading/s) and Slow (5 reading/s). (Fast: 1PLC, Slow: 10 PLC)
  • Page 25 T3DAQ1-16 User Manual Set the [Inquire Channel] by direction keys and the interface displays the minimum, average, max- imum, span, standard deviation, samples and trend chart of measurement results of the setting channel during the scan operation. Press [Done] to return to higher level menu.

  • Page 26: User Interface

    T3DAQ1-16 User Manual User Interface...

  • Page 27: Measurement Connections

    T3DAQ1-16 User Manual Measurement Connections The DAQ is designed with many measurement functions. After selecting the desired measure- ment function, please connect the signal (device) under test to the DAQ according to the method below. Do not switch the measurement function when measuring as it may cause damage to the DAQ.
  • Page 28 T3DAQ1-16 User Manual...
  • Page 29 T3DAQ1-16 User Manual...

  • Page 30: Connecting To Usb And Lan Ports

    T3DAQ1-16 User Manual Connecting to USB and LAN Ports The DAQ has LAN and USB I/O ports. Connect to the ports as in the diagrams below:...

  • Page 31: Using The Built-In Help System

    T3DAQ1-16 User Manual Using the Built-in Help System To access the built-in help system, press [Shift] + [Acquire], then use the direction keys to choose the help item you want. Finally, press [ OK ] to obtain help. The help listings are as follows: 1.

  • Page 32: Function And Operation

    Chapter 2 Function and Operation Measurement Configuration Most measurement parameters are user-defined. Changing a measurement parameter will change the measurement precision and speed, as well as the input impedance. An appropriate measure- ment parameter based on the actual application will ensure faster measurement or higher mea- surement precision.
  • Page 33 T3DAQ1-16 User Manual Range T3DAQ provides auto and manual range selecting modes. In auto mode, the DAQ selects a proper range automatically according to the input signal. In manual mode, you can use the front panel key or menu key to set the range. The auto mode can bring a lot of convenience for users while the manual mode provides higher reading precision.
  • Page 34 The integration time applies to DCV, DCI, 2WR and 4WR measurements. T3DAQ1-16 expresses the integration time by the number of power line cycles, the unit is PLC. The DAQ automatically detects the input power line frequency at power-on. If the frequency is 50Hz, the integration time can be set to 0.005PLC, 0.05PLC, 0.5PLC, 1PLC, 10PLC, 100PLC and the...
  • Page 35 T3DAQ1-16 User Manual 2. In ACV, ACI ,FREQ/PERIOD measurements, the resolution is fixed at 6½ digits. 3. In CAP measurements, the resolution is fixed at 4½. 4. The instrument always displays 2 digits after the decimal point in CONT measurement.
  • Page 36 T3DAQ1-16 User Manual DC Impedance DC impedance applies to DCV measurements. The default is “10MΩ”. In the range of 200mV, 2V or 20V, you can choose “>10GΩ” to reduce the loading error on the measured object, caused by the multimeter load.
  • Page 37 T3DAQ1-16 User Manual Auto Zero Auto zero (Auto Zero) applies to DCV, DCI, 2WR and 4WR measurements. Enter the specific measurement function and press [Auto Zero] in the menu to perform the setting, as shown in diagram below (take DCV measurement for instance).
  • Page 38 AC Filter AC filter applies to ACV and ACI measurements. It can optimize the low frequency accuracy and minimize the AC settling time. T3DAQ1-16 provides three types of AC filters (>3Hz, >20Hz, >200Hz). The AC filter to be used is determined by the input signal frequency. You should generally select the highest frequency filter whose frequency is less than that of the signal you are measuring, be- cause the higher frequency filters result in faster measurements.
  • Page 39 T3DAQ1-16 User Manual Short-circuit Resistance This function only applies to a continuity test. When the measured circuit has a resistance lower than the short-circuit resistance, the circuit is considered as connected and the beeper sounds (if sound is on). The default short-circuit resistance is 50Ω and the setting is stored in non-volatile memory.
  • Page 40 T3DAQ1-16 User Manual Gate Time Gate time (also called Aperture Time) applies to the FREQ / PERIOD function. It decides the res- olution of a low-frequency measurement. The longer the gate time, the higher the resolution of the low-frequency measurement and the slower the measurement, and vice versa.

  • Page 41: Basic Measurement Functions

    T3DAQ1-16 User Manual Basic Measurement Functions To Measure DC Voltage Range: 200mV, 2V, 20V, 200V, 1000V Max Resolution: 100nV (in the range of 200mV) Input Protection: 1000 V protection is available on all ranges and a 10% over-range for all ranges except 1000 V range.
  • Page 42 T3DAQ1-16 User Manual 4. Set the Integration Press [Aperture] and choose the number of power-line cycles (PLCs) to use for the measure- ment. Selecting 100PLC provides the best noise rejection and resolution, but the slowest measurements. 5. Autozero setting Press [Auto Zero] to enable or disable this function. Autozero provides the most accurate measurements, but requires additional time to perform the zero measurement.
  • Page 43 T3DAQ1-16 User Manual To Measure DC Current Range: 200µA, 2mA, 20mA, 200mA, 2A, 10A Max Resolution: 0.1nA (in the range of 200µA) Input Protection: a 10A protection fuse is available in all ranges and a 10% over-range for all ranges except 10A range. If the reading exceeds the range, “overload” will be displayed.
  • Page 44 T3DAQ1-16 User Manual 5. Autozero setting Press [Auto Zero] to enable or disable this function. Autozero provides the most accurate measurements but requires additional time to perform the zero measurement. With au- tozero enabled (On), the DAQ internally measures the offset following each measurement. It then subtracts that measurement from the preceding reading.
  • Page 45 T3DAQ1-16 User Manual To Measure AC Voltage Range: 200mV, 2V, 20V, 200V, 750V Max Resolution: 100nV (in the range of 200mV) Input Protection: 750V protection is available in all ranges and a 10% overrange for all ranges except 750V range. If the reading exceeds the range, “overload” will be displayed.
  • Page 46 T3DAQ1-16 User Manual 5. Set the relative value (Optional operation) Press [Rel] to start or stop the Relative math function. When it is started, the reading dis- played is a value which comes from the result of actual measurement value minus the relative value that has been set.
  • Page 47 T3DAQ1-16 User Manual To Measure AC Current Range: 200µA, 2 mA, 20 mA, 200 mA, 2A, 10A Max Resolution: 0.1nA (in the range of 200µA) Input Protection: 10A protection is available in all ranges and a 10% over-range for all ranges except the 10A range.
  • Page 48 T3DAQ1-16 User Manual 5. Set the relative value (Optional operation) Press [Rel] to start or stop the Relative math function. When it is started, the reading dis- played is a value which comes from the result of actual measurement value minus the relative value that has been set.
  • Page 49 Input Protection: 1000 V protection is available in all ranges and a 10% over-range for all ranges. If the reading exceeds the range, “overload” will be displayed. T3DAQ1-16 provides 2-wire and 4-wire resistance measurements. When the measured resistance is lower than 100kΩ, the 4-wire resistance measurement is recommended to reduce the measure- ment error caused by the test lead resistance and contact resistance between the probe and the testing point.
  • Page 50 T3DAQ1-16 User Manual Press [Shift] and [Ω2W] on the front panel to enter the 4-wire resistance measurement inter- face, as shown in the diagram below. 2. Make the connection Connect the test leads with the measured signal by referring to “Measurement Connec- tions”.
  • Page 51 T3DAQ1-16 User Manual 7. Read the measurement value The DAQ measures the input signal according to the current measurement settings and dis- plays the measurement result on the screen. 8. Perform the math operation (advanced) You can perform the math operations (Statistics, Limit and REL) on every resistance mea- surement reading.
  • Page 52 T3DAQ1-16 User Manual To Measure Capacitance Range: 2nF, 20nF, 200nF, 2µF, 20µF, 200µF, 2mF, 20mF, 100mF Max Resolution: 1pF (in the range of 2nF) Input Protection: 1000V protection is available in all ranges. If the reading exceeds the range, “overload” will be displayed.
  • Page 53 T3DAQ1-16 User Manual 5. Read the measurement value The DAQ measures the input signal according to the current measurement settings and dis- plays the measurement result on the screen. 6. Perform the math operation (advanced) You can perform the math operations (Statistics, Limit and REL) on every capacitance mea- surement reading.
  • Page 54 T3DAQ1-16 User Manual To Measure Frequency or Period Frequency (Period) Range: From 3Hz to 1MHz (from 0.33s to 1µs). Input Signal Range: 200mV, 2V, 20V, 200V, 750V. Input Protection: 750V protection is available in all ranges. Operating Steps: 1. Enable the Freq/Period measurement...
  • Page 55 T3DAQ1-16 User Manual 3. Set the range Press [Range] to select a range for the measurement. You can also use the [+], [-], [Range] and keys on the front panel to select the range. Auto (autorange) automatically selects the range for the measurement based on the input. Autoranging is convenient, but it results in slower measurements than using a manual range.
  • Page 56 T3DAQ1-16 User Manual To Test Continuity Test Current Source: 1mA Max Resolution: 0.01Ω Input Protection: 1000V Input Protection Open-circuit Voltage: <8V Beep Threshold (short-circuit resistance): from 0Ω to 2000Ω This function measures the resistance of the circuit with about 1mA current source. When the measured resistance is lower than the short-circuit resistance (Threshold), the beeper sounds (if the Beeper is on).
  • Page 57 T3DAQ1-16 User Manual 5. Perform the math operation (advanced) You can perform math the operation (Statistics, Limit) on every measurement reading. For details, please refer to “Math Functions”. 6. Display the graph (advanced) You can analyze the measurement data by using the “Bar Meter”, “Trend Chart” or “Histogram display”.
  • Page 58 T3DAQ1-16 User Manual To Test Diode Test Current Source: 1mA Voltage Measurement Range: 0V 4V Max Resolution: 10µV Input Protection: 1000V Input Protection Open-circuit Voltage: <8V This function measures the forward voltage drop on the diode. When the voltage is lower than the Threshold, the beeper sounds (if the beeper is on).
  • Page 59 T3DAQ1-16 User Manual 5. Evaluate the results of a measurement Reverse the probes and measure the forward voltage drop on the diode again. Evaluate the diode according to the following rules: • If the DAQ displays “open” when in the reverse bias model, it indicates that the diode is normal.
  • Page 60 T3DAQ1-16 User Manual To Measure Temperature T3DAQ1-16 can directly measure the temperature using TC (Thermocouple) and THERM (Ther- mistor) sensors. Operating Steps: 1. Enable the Diode measurement Press on the front panel to enter the Temperature measurement interface, as shown in the diagram below.
  • Page 61 T3DAQ1-16 User Manual 4. Set the display mode Press [Display] to choose the display mode. The DAQ supports three display modes: Tem- perature Value, Measured Value and All (Temperature Value and Measured Value will be shown on the display together).
  • Page 62 T3DAQ1-16 User Manual 8. Perform the math operation (advanced) You can perform the math operation (Statistics, Limit and REL) on every measurement read- ing. For details, please refer to “Math Functions”. 9. Display the graph (advanced) You can analyze the measurement data by using the “Bar Meter”, “Trend Chart” or “Histogram...

  • Page 63: Dual-Display Function

    T3DAQ1-16 User Manual Dual-display Function Dual-display function is used to improve the test and measurement functions. Press [Dual] to open the Dual-display function and the upper right corner will show “Dual”. Now press a function key if this function can be used as the second display, it will be displayed in the second Display area.
  • Page 64 T3DAQ1-16 User Manual • The readings in both displays will update alternately. • If math function (dBm, dB) is used in Main Display, when opening the second Display, the math operation will be stopped automatically. The second Display will show the second selected function normally.

  • Page 65: Utility Function

    T3DAQ1-16 User Manual Utility Function The Utility function enables users to set up system parameters and interface parameters of the DAQ. Press [Shift] and [Dual] to enter the operating menu of Utility function, as the following diagram shows. Function Menu...
  • Page 66 T3DAQ1-16 User Manual Store and Recall The Store/Recall function enables users to store and recall the instrument state and data files in the local storage as well as in the USB storage. After entering the function menu of Utility, press [Store/Recall] to enter the interface as shown in the diagram below.
  • Page 67 T3DAQ1-16 User Manual Store Settings Store settings allows you to save the system configuration (as .xml) or measurement data (as .csv) into the internal memory or an external USB storage device. After entering into the function menu of Store/Recall, press [Store Settings] to enter the following interface.
  • Page 68 T3DAQ1-16 User Manual Operating Steps: 1. Set the storage directory Press [Browse] to enter the following interface, then use the direction keys or menu operation keys to choose the storage directory. Press [Select] to set the current directory as storage location and Return to the higher level menu.
  • Page 69 T3DAQ1-16 User Manual • Press [Cancel] to cancel the current operation and return to the higher level menu. 3. Set the type of stored file Press [Type] to set the type of stored file. • .xml: save the current system configuration as an “.xml” file.
  • Page 70 T3DAQ1-16 User Manual Recall Settings Recall settings allows you to read the system configuration from the internal memory or an external USB storage device. After entering the function menu of Store/Recall, press [Recall Settings] to enter the following interface. Use direction keys or menu operation keys to choose the state file with the suffix “.xml”.
  • Page 71 T3DAQ1-16 User Manual Manage File The Manage Files function allows you to create, copy, delete, and rename files and folders in the instrument’s internal flash memory or on a USB drive attached to the front panel. It also allows you to capture the current screen to a bitmap (*.bmp) file.
  • Page 72 T3DAQ1-16 User Manual I/O Configuration Press [I/O Config] to enter the following interface and set up the parameters. LAN Settings The DAQ enables users to operate the instrument remotely by LAN interface and store or recall internet settings. You can look over current LAN settings and set up an IP address and subnet mask.
  • Page 73 T3DAQ1-16 User Manual Board Test T3DAQ1-16 provides self-test functions, including Key Test, LCDTest, Beeper Test and Chip Test. Operating Steps: 1. Press [Shift] and [Dual], then choose [Test/Admin]→[Board Test] to enter the following inter- face. Function Menu Description Keyboard Test the instrument’s keys.
  • Page 74 T3DAQ1-16 User Manual 2. Test the keys (select Keyboard). Select [Key] to enter the key test interface, as displayed in the diagram below. The on- screen rectangle shapes represent the keys on the front panel. Test all keys and knobs and you should also verify that all the back lit buttons illuminate correctly.
  • Page 75 T3DAQ1-16 User Manual 4. Test the beeper. Press [Beeper] to test the beeper. Under regular circumstances, press [Beeper] one time and the instrument will beep one time. 5. Test the chips. Press [Chip]→[Start] to enter chip test interface, as shown in the diagram below.
  • Page 76 T3DAQ1-16 User Manual Firmware Update The software of the DAQ can be updated directly via a USB flash drive, updating the current soft- ware version to the desired software version. Operating Steps: 1. Copy the update file to the USB flash drive.
  • Page 77 T3DAQ1-16 User Manual System Setup Press [Shift] and [Dual], then select [System Setup] to enter the following interface. Function Menu Description Language Select the display interface language. Firmware Update Update software version. Screen Setup the screen protection function. System Info View system information.
  • Page 78 T3DAQ1-16 User Manual...

  • Page 79: Acquire

    T3DAQ1-16 User Manual Acquire Sampling is a process of acquiring and digitizing a signal. The optional Trigger methods of the DAQ include Auto Trigger, Single Trigger and External Trigger. Press [Acquire] to enter the interface shown as the following diagram:...
  • Page 80 T3DAQ1-16 User Manual Auto Trigger Auto Trigger parameters that need to be set up include delay, samples/trigger and VMC out. Operating Steps: 1. Press [Acquire], then select [Trg Src]→[Auto] or press [Run/Stop] on the front panel directly to enable Auto Trigger.
  • Page 81 T3DAQ1-16 User Manual Single Trigger Single Trigger parameters that need to be set up include delay, samples/trigger and VMC out. Operating Steps: 1. Press [Acquire], then select [Trg Src]→ [Single] or press [Single] on the front panel directly to enable Single Trigger.
  • Page 82 T3DAQ1-16 User Manual External Trigger The external trigger signal will be input via EXT TRIG interface on the rear panel. External trigger parameters that need to be set up include delay, samples/trigger, slope and VMC out. Operating Steps: 1. Press [Acquire], then select [Trg Src]→ [Ext] to enable the External Trigger.

  • Page 83: Help System

    T3DAQ1-16 User Manual Help System T3DAQ1-16 provides a powerful built-in help system. You can recall help information at any time while using the instrument. You also can get a functionality help for every button on the front panel or menu soft key by using the built-in help system. You may also get help about familiar operations with the help list.
  • Page 84 T3DAQ1-16 User Manual 8. Technical Support. How to obtain technical support. Explanation: • In the help menu interface, you can move the cursor and select the corresponding menu by the up and down direction keys and press “OK” to read the help information.

  • Page 85: Math Function

    T3DAQ1-16 User Manual Math Functions The DAQ provides five math functions: Statistics, Limits, dBm, dB and Relative. Choose differ- ent math functions to meet different measurement needs. Math functions can only be used in DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Period and Temperature measurement.
  • Page 86 T3DAQ1-16 User Manual Statistics There are many kinds of reading statistic functions, including: Max, Min, Average and Standard deviation. Press [Math]→ [Statistics]→ [Show] to enter the interface shown in the following diagram. Function Menu Settings Description Show the minimum statistics value of current measurement.
  • Page 87 T3DAQ1-16 User Manual Limits Limits function is available to indicate signals beyond ranges according to the upper and lower pa- rameters. The following are some measurement functions which are able to do a limit operation: DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Period, Capacitance and Temperature.
  • Page 88 T3DAQ1-16 User Manual 1. How to Set Limits Select [High], [Low], [Center] or [Span] and then switch to the needed digit using the Left or Right Direction keys and input the numerical value by selecting the Up and Down Direction keys.
  • Page 89 T3DAQ1-16 User Manual The dBm function is logarithmic and based on a calculation of power delivered to a reference resistance, relative to 1 milliwatts. This function only applies to an AC voltage and DC voltage measurements. Press [Math]→ [dB/dBm]→ [On] and select [Function dBm] to enter the interface shown in the fol- lowing diagram.
  • Page 90 T3DAQ1-16 User Manual Each dB measurement is different between the input signal and a stored relative value, with both values converted to dBm. The dB function applies to AC voltage and DC voltage measurements only. Press [Math]→ [dB/dBm On] and select [Function dB] to enter the interface shown in the following diagram.
  • Page 91 T3DAQ1-16 User Manual Relative Value Relative value is used for relative measurements. Actual measurement reading is the difference between measurement value and preset value. The DAQ Relative Value is available for the following measurement parameters: DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Period, Capacitance and Temperature.

  • Page 92: Display Mode

    T3DAQ1-16 User Manual Display Mode The DAQ supports four types of views for measured data: “Number”, “Bar Meter”, ”Trend Chart” and “Histogram”. Number Press [Shift] and [Math] to open the menu of display mode and press [Display] to enter the following...
  • Page 93 T3DAQ1-16 User Manual Bar Meter Operating Steps: 1. Press [Bar Meter] to enter Bar Meter display mode. 2. Press [Horizontal Scale] to set the vertical scale as Default Manual mode. Table below shows the functions menu and the description. Function Menu Description Set the low value of horizontal scale.
  • Page 94 T3DAQ1-16 User Manual Trend Chart Operating Steps: 1. Press [Trend Chart] to enter the Trend Chart display mode. Table below describes the Trend Chart Display Mode. Function Menu Description Display Trend The current select display mode is Trend Chart. Recent All Show recent or all readings.
  • Page 95 T3DAQ1-16 User Manual 2. Press [Horizontal Scale] to choose the way to set the horizontal scale as Default, Auto or Manual mode. Press [Auto] and the DAQ will set the vertical scale automatically. Press [Manual] and you can set the vertical scale manually, as displayed in the diagram below.
  • Page 96 T3DAQ1-16 User Manual Histogram Operating Steps: 1. Press [Histogram] to enter the Histogram display mode. Table below describes the Histogram Display Mode. Function Menu Settings Description Display Histogram Currently selected display mode is Histogram. Binning Set Binning as Auto or Manual mode.
  • Page 97 T3DAQ1-16 User Manual Function Menu Settings Description Set the number of Bins, 10, 20, 40, 100, 200 or 400 Num.Bins selected. Set the low value of the horizontal scale. High Set the high value of the horizontal scale. Center Set the center value of the horizontal scale.

  • Page 98: Trigger

    T3DAQ1-16 User Manual Trigger The DAQ supports the Trigger function. Press [Run/Stop] or [Single] on the front panel to trigger the DAQ by Auto or Single mode. Auto trigger is considered as a default when the power is initially turned on.

  • Page 99: Hold Measurement Function

    T3DAQ1-16 User Manual Hold Measurement Function Hold Measurement function provides users with a stable reading on the screen of the front panel. When the test leads are disconnected, the reading is still held on the screen, which enables users to view the measured history data.

  • Page 100: Measurement Tutorial

    Chapter 3 Measurement Tutorial True RMS AC Measurement The AC measurement of the DAQ has a true RMS response. The power dissipated in a resis- tor within a time is proportional to the square of the measured true RMS voltage, independent of waveform shape.

  • Page 101: Crest Factor Errors (Non-Sinusoidal Inputs)

    T3DAQ1-16 User Manual Crest Factor Errors (non-sinusoidal inputs) A common misconception is that ”since an AC Multimeter is a true RMS, its sine wave accuracy specifications apply to all waveforms.” The shape of the input signal can dramatically affect mea- surement accuracy.

  • Page 102: Loading Errors (Ac Voltage)

    T3DAQ1-16 User Manual Loading Errors (AC Voltage) In the AC Voltage function, the input of T3DAQ1-16 appears as a 1MΩ resistance in parallel with 100pF of capacitance. The test lead that you use to connect signals to the Multimeter will also add additional capacitance and loading.
  • Page 103 3. Restart the instrument after finishing the above checks. 4. If the instrument still doesn’t start up properly, please contact the Teledyne LeCroy service center. The reading doesn’t change when a current signal is input.
  • Page 104 3. Check the capacity of your USB storage device. It is recommended that the capacity of the USB storage device is no larger than 8G bytes and FAT formatted. 4. Restart the instrument, then insert the USB storage device. 5. If the problem persists, please contact the Teledyne LeCroy service center.
  • Page 105 • We suggest that the length of the USB data wire and LAN cable connected to the instrument should be less than 3m to avoid affecting the product performance. • All the accessories are available by contacting your local Teledyne LeCroy office.
  • Page 106 Teledyne Test Tools warrants that the products will be free from defects in materials and work- manship for a period of three years from the date of shipment from an authorized Teledyne Test Tools distributor. If a product proves defective within the respective period, Teledyne Test Tools will provide repair or replacement as described in the complete warranty statement.
  • Page 107 T3DAQ1-16 User Manual Certifications Teledyne LeCroy certifies compliance to the following standards as of the time of publication. Please see the EC Declaration of Con- formity document shipped with your product for current certifications. EMC Compliance EC DECLARATION OF CONFORMITY - EMC The instrument meets intent of EC Directive 2014/30/EU for Electromagnetic Compatibility.
  • Page 108 The instrument is subject to disposal and recycling regulations that vary by country and region. Many countries pro- hibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, please visit teledynelecroy.com/recycle. RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) EC DECLARATION OF CONFORMITY –...
  • Page 109 T3DAQ1-16 User Manual...
  • Page 110 T3DAQ1-16 User Manual...
  • Page 111 Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, MA 01801 TestEquipmentDepot.com © 2021 Teledyne Test Tools is a brand and trademark of Teledyne LeCroyInc. All rights reserved.Specifications,prices,availability and deliverysubject to change without notice. Product brand or brand names are trademarks or requested trademarks of their respective holders.
