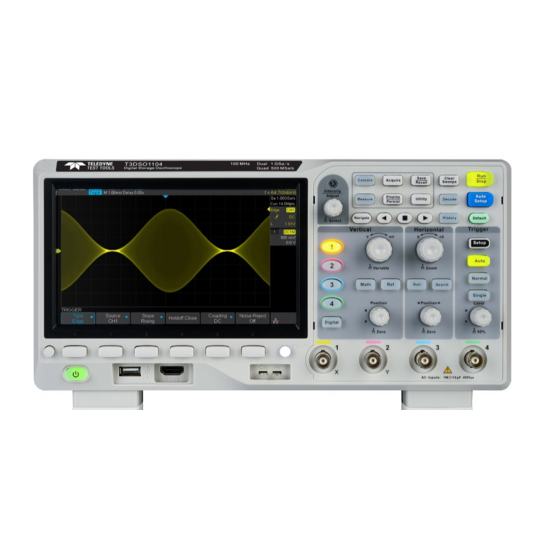

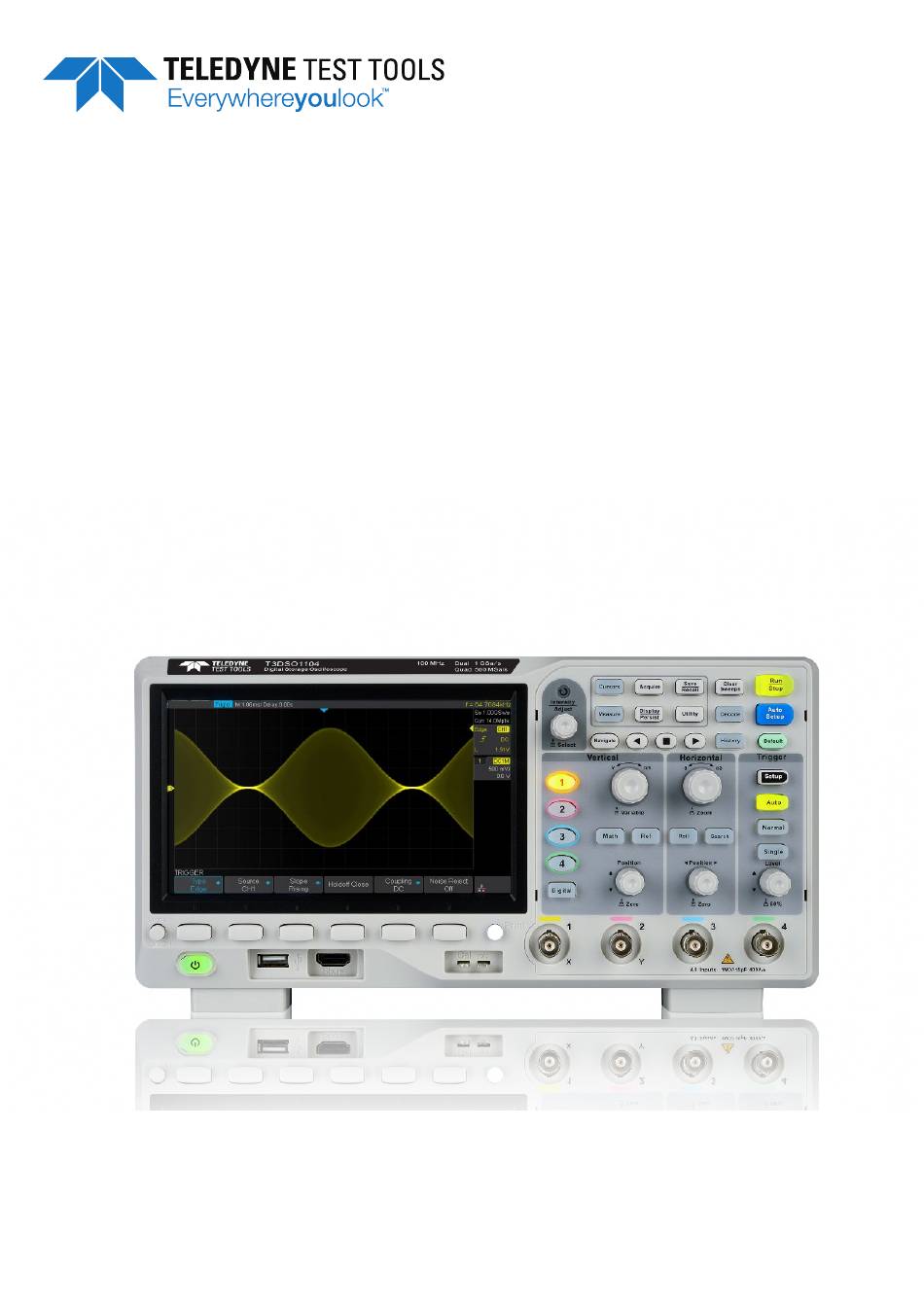

Page 1 User Manual T3DSO1000 Series Digital Oscilloscope...
Page 2 Declaration Teledyne Test Tools products are protected by patent law. Teledyne Test Tools reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material.
Page 3: Safety Information
Safety Information General Safety Summary Carefully read the following safety precautions to avoid any personal injury or damage to the instrument and any products connected to it. To avoid potential hazards, please use the instrument as specified. Use Proper Power Line Only the power cord designed for the instrument and country should be used.
Page 4 If you suspect damage occurs to the instrument, have it inspected by qualified service personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by Teledyne Test Tools authorized personnel. Do Not Operate in Wet Conditions.
Page 5: Safety Terms And Symbols
Safety Terms and Symbols Terms in this Manual. These terms may appear in this manual: WARNING Warning statements indicate the conditions or practices that could result in injury or loss of life. CAUTION Caution statements indicate the conditions or practices that could result in damage to this product or other property.
Page 6: Measurement Category
Measurement Category Measurement Categories This oscilloscope can make measurements in circuits that are not directly connected to mains. WARNING This oscilloscope can only be used for measurements within its specified measurement categories. Do not use the product for measurements within other measurement categories, such as CAT II, CAT III, CAT IV.
Page 7: Working Environment
Working Environment Temperature Operating: 10℃ to +40℃ Non-operation:-20℃ to +70℃ Humidity Under +35℃:≤90% relative humidity +35℃ to +40℃: ≤60% relative humidity WARNING To avoid short circuit inside the instrument or electric shock, please do not operate in humid environment. Altitude Operating: less than 3 Km Non-operation: less than 15 Km Degree of protection...
Page 8: Ventilation Requirement
Ventilation Requirement This oscilloscope uses a fan for cooling. Please make sure that the air intake and exhaust areas are free from obstructions and have free air. When using the oscilloscope in a bench-top or rack setting, provide at least 10 cm clearance beside, above and behind the instrument for adequate ventilation.
Page 9: General Care And Cleaning
General Care and Cleaning Care Do not store or leave the instrument in direct sunshine for long periods of time. WARNING To avoid damage to the instrument or probe, please do not leave them in fog, liquid, or solvent. Cleaning Please perform the following steps to clean the instrument and probe regularly according to its operating conditions.
Page 10: Document Overview
Document Overview This manual describes how to use the digital oscilloscope in detail. Provide information about preparation before Quick Start using the instrument and a brief introduction to the instrument. Introduce the functions of the vertical system of Set the Vertical System the oscilloscope.
Page 11: Table Of Contents
Table of Content Copyright and Declaration ......................I Safety Information ..........................II General Safety Summary......................II Safety Terms and Symbols....................... IV Measurement Category ......................V Working Environment ......................VI Ventilation Requirement......................VII General Care and Cleaning....................VIII Document Overview........................IX Quick Start............................1 General Inspection ........................2 Appearance and Dimensions ....................3 To Prepare the Oscilloscope for Use ..................5 To Adjust the Supporting Legs..................5...
Page 12 Set the Horizontal System ......................31 Adjust the Horizontal Scale .....................32 Adjust Trigger Delay ........................33 Set the Roll mode........................34 Use the Zoom Function ......................35 To Set the Sample System ......................36 Run Control ..........................37 Overview of Sampling ......................38 Sampling Theory......................38 Sample Rate........................39 Oscilloscope Bandwidth and Sample Rate ..............40 Select Memory Depth ......................41 Select Sampling Mode......................42...
Page 13 Setup for SPI Signals....................90 SPI Triggering .......................93 SPI Serial Decode ......................95 UART/RS232 Triggering and Serial Decode ..................97 Setup for UART/RS232 Signals .................97 UART/RS232 Triggering....................99 UART/RS232 Serial Decode ...................101 CAN Trigger and Serial Decode .....................103 Setup for CAN Signals....................103 CAN Triggering.......................105 CAN Serial Decode......................107 LIN Triggering and Serial Decode ..................109 Setup for LIN Signals ....................109...
Page 14 To Set Color Display.......................140 To Set and Clear Persistence ....................140 To clear the display........................141 To Select Grid Type........................142 To Adjust Waveform Intensity....................142 To Adjust Grid Brightness ......................143 To Adjust Transparence ......................143 Save and Recall..........................144 Save Type..........................145 Internal Save and Recall ......................147 External save and recall......................148 Disk Management .........................151 To Create a New File or Folder..................152...
Page 15 Do Self Test..........................181 Screen Test ........................181 Keyboard Test ........................182 LED Test .........................183 To specify Screen Saver Time ....................184 To Use the Expand Setting.....................185 To Use the Power On Line .....................185 Option Management......................186 Search............................188 Setting ...........................188 Results ...........................189 Navigate ............................191 Time navigate........................191 History frame navigate ......................191 Search event navigate ......................191 Bode Plot............................193...
Page 16 Content of Figure Figure 1 Front View (2-channel scope) ..................3 Figure 2 Top View (2-channel scope)..................3 Figure 3 Front View (4-channel scope) ..................4 Figure 4 Top View (4-channel scope)..................4 Figure 5 Adjust the Supporting Legs ..................5 Figure 6 To Connect to Power Supply ..................6 Figure 7 Function Inspection.....................8 Figure 8 2-channel Scope Front Panel Overview..............10 Figure 9 4-channel Scope Front Panel Overview..............11...
Page 17 Figure 42 SPI SIGNAL Menu .....................91 Figure 43 SPI ClOCK Menu .......................91 Figure 44 MISO Menu ......................91 Figure 45 MOSI Menu ......................91 Figure 46 SPI TRIG SET Menu ..….……..................93 Figure 47 UART SIGNAL Menu ....................97 Figure 48 UART / RS232 Bus Config Menu................98 Figure 49 UART TRIG SET Menu....................99 Figure 50 UART Trigger......................100 Figure 51 UART / RS232 Decode.....................101...
Page 18 Figure 86 System Status ......................161 Figure 87 Do Self Cal ......................162 Figure 88 Pass / Fail Test ......................164 Figure 89 AWG Menu Interface .....................169 Figure 90 Wave Type Interface ....................169 Figure 91 Built-in Arb Interface ....................171 Figure 92 AWG Setting Interface .....................171 Figure 93 AWG System Information Interface ..............173 Figure 94 AWG Update Interface ..................174 Figure 95 LAN Settings ......................176...
Page 20: Quick Start
Quick Start This chapter introduces the preparations when using the oscilloscope for the first time, the front panel, rear panel and user interface. The contents of this chapter: ◆ General Inspection ◆ Appearance and Dimensions ◆ To Prepare the Oscilloscope for Use ◆...
Page 21: General Inspection
Teledyne Test Tools would not be responsible for free maintenance / rework or replacement of the unit. 2. Inspect the instrument. In case of any damage, or defect, or failure, notify your Teledyne Test Tools sales representative. 3. Check the Accessories Please check the accessories according to the packing lists.
Page 22: Appearance And Dimensions
Appearance and Dimensions Figure 1 Front View (2-channel scope) (2-channel scope) Figure 2 Top View User Manual...
Page 23 Figure 3 Front View (4-channel scope) Figure 4 View (4-channel scope) 4 User Manual...
Page 24: To Prepare The Oscilloscope For Use
To Prepare the Oscilloscope for Use To Adjust the Supporting Legs Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement of the oscilloscope as well as better operation and observation. Figure 5 Adjust the Supporting Legs User Manual...
Page 25: To Connect To Power Supply
To Connect to the local line Power The power requirements of the oscilloscope are 100-240 V, 50/60Hz or 100-120 V, 400Hz. Please use the power cord supplied with the accessories to connect the oscilloscope to the power source. Power Power socket socket 2-channel scope...
Page 26: Power-On Inspection
After the self-test is finished, the welcome screen is displayed. To Connect the Probe Teledyne Test Tools provides passive probes for the oscilloscopes. For detailed technical information of the probes, please refer to the corresponding Probe User’s Guide. Connect the Probe: 1.
Page 27: Function Inspection
Function Inspection 1. Press the Default button on the front panel to restore the instrument to its default configuration. 2. Connect the ground alligator clip of the probe to the “Ground Terminal” under the probe compensation signal output terminal. Compensation Signal Output Terminal Ground Terminal 2-channel scope Ground Terminal...
Page 28: Probe Compensation
in the next section. WARNING To avoid electric shock during the use of a probe, please make sure that the insulated wire of the probe is in good condition and do not touch the metallic part of the probe when the probe is connected to a high voltage source Probe Compensation When the probes are used for the first time, you should compensate the probes to match the input channels of the oscilloscope.
Page 29: Front Panel Overview
Front Panel Overview Figure 8 2-channel Scope Front Panel Overview NO. Description NO. Description LCD Display Vertical Control Universal Knob Probe Compensation/ Ground Terminal Common Function Menus Analog Channel and Ext Input Run/Stop USB Host Auto Setup Menu Softkey Trigger Control Menu on/off Horizontal Control Power Button...
Page 30 Figure 9 4-channel Scope Front Panel Overview NO. Description NO. Description LCD Display Horizontal Control Universal Knob Trigger Control Common Function Menus Menu on/off Clear Sweeps Menu Softkey Run/Stop One- Button shortcut for Save Decode Analog Channel Auto Setup Power Button Navigate USB Host History...
Page 31: Rear Panel Overview
Rear Panel Overview Figure 10 2-channel Scope Rear panel Overview 1. Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. 2. Safety lock Hole You can lock the instrument to a fixed location using the security lock (not supplied) via the lock hole.
Page 32 Figure 11 4-channel Scope Rear panel Overview 1. Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. 2. LAN The instrument can be connected to network via this interface to perform remote control.
Page 33: Front Panel Function Overview
Front Panel Function Overview Horizontal 4-channel scope 2-channel scope : Quickly enter the roll mode. The timebase range is from 50mS/div to 100S/div. : Enable or disable search function. This function can search for the events that users specify in the acquired data, the results are displayed with a white triangle symbol.
Page 34: Vertical
Vertical 2-channel scope 4-channel scope Analog input channels. The two channels are marked by different colors which are also used to mark both the corresponding waveforms on the screen and the channel input connectors. Vertical Position Knob : adjust the vertical position of the current channel waveform.
Page 35: Trigger
Trigger 2-channel scope 4-channel scope : press the button to enter the TRIGGER function menu. The oscilloscope provides abundant advanced trigger functions : press the button to set the trigger mode to Auto. : press the button to set the trigger mode to Normal. : press the button to set the trigger mode to Single.
Page 36: Run Control
Run Control : press this key to enable the waveform auto setting function. The oscilloscope will automatically adjust the vertical scale, horizontal time base and trigger mode according to the input signal to realize optimum waveform display. : press the button to set the acquisition state to Run or Stop. In RUN state, the key is illuminated in yellow.
Page 37: Universal Knob
Universal Knob 1. Adjust the waveform intensity. You can press the Display/Persist button; press the Next Page softkey to go to the second page of the DISPLAY function menu; press the Intensity softkey and then turn the Universal Knob to adjust the waveform intensity. 2.
Page 38: Menu
Menu 2-channel scope common function panel 4-channel scope common function panel : Press the button to enter the CURSOR function menu. The oscilloscope provides manual and track cursor mode. : Press the button to enter the DISPLAY function menu and quickly enable the persist function.
Page 39 : Press the button to reset the oscilloscope to user default setup. : Press the button to enter the history mode. In history mode, it can record up to 80,000 waveforms. If the sequence function is enabled, it will only record the waveforms which you set, the most you can set is 80,000.
Page 40: Help
Help The oscilloscope has an on line help function that supplies multi-language help information. You can access the help function by pressing any button for 2 seconds and a help window will explain the function. Also all of the submenus include help information. Figure 12 Help Message User Manual...
Page 41: User Interface
User Interface Figure 13 User Interface 1. Oscilloscope Display The oscilloscope display is the main area to see most of the settings and the menus. 2. Channel Label/Waveform Different channels are marked by different colors and the color of the waveform complies with the color of the channel.
Page 42 7. Frequency Counter Display the frequency value of the trigger channel. 8. Sampling Rate/ Memory Depth Display the current sampling rate and memory depth. Sa means the current sampling rate per second and Curr means the current memory depth. 9. Trigger Setup Trigger Type : display the current trigger type.
Page 43: To Use The Security Lock
To Use the Security Lock If needed, you can use the security lock (not supplied) to lock the oscilloscope to a fixed location. The method is as follows, align the lock with the lock hole and plug it into the lock hole vertically, turn the key clockwise to lock the oscilloscope and then pull the key out.
Page 44: To Set The Vertical System
To Set the Vertical System This chapter introduces how to set the vertical system of the oscilloscope. The contents of this chapter: ◆ To Enable the Channel ◆ To Adjust the Vertical Scale ◆ To Adjust the Vertical Position ◆ To Specify Channel Coupling ◆...
Page 45: To Enable The Channel
To Enable the Channel The oscilloscope provides 2 or 4 analog input channels and provides independent vertical controls for each channel. This chapter takes CH1 as an example since all of the vertical channel setting methods are the same for all other channels. Connect a signal to the CH1 channel BNC connector;...
Page 46: To Adjust The Vertical Scale
To Adjust the Vertical Scale The vertical scale can be adjusted in Coarse or Fine mode. ● Coarse adjustment (take counterclockwise as an example): set the vertical scale in 1-2-5 steps namely 500uV/div, 1 mV/div, 2 mV/div, 5 mV/div, 10 mV/div …10 V/div. ●...
Page 47: To Specify Channel Coupling
To Specify Channel Coupling Set the coupling mode to filter out the undesired signals. For example, the signal under test is a square waveform with DC offset. ● When the coupling mode set to DC: the DC and AC components of the signal under test can both pass into the scope measurement channel.
Page 48: To Specify Probe Attenuation Factor
To Specify Probe Attenuation Factor Set the probe attenuation factor to match the type of the probe that you are using to ensure correct vertical readouts. Press the CH1 button on the front panel; then press the Probe softkey and turn the Universal Knob to select the desired value and push the knob to confirm.
Page 49: To Specify Amplitude Unit
To Specify Amplitude Unit Select the amplitude display unit for the current channel. The available units are V and A. When the unit is changed, the unit displayed in the channel label will change accordingly. 1. Press CH1button on the front panel to enter the CH1 function menu. 2.
Page 50: Set The Horizontal System
Set the Horizontal System This chapter introduces how to set the horizontal system of the oscilloscope. The contents of this chapter: ◆ Adjust the Horizontal Scale ◆ Adjust the Trigger Delay ◆ Set Roll Mode ◆ Use the Zoom Function User Manual...
Page 51: Adjust The Horizontal Scale
Adjust the Horizontal Scale Turn the HORIZONTAL Scale Knob on the front panel to adjust the horizontal time base. Turn clockwise to reduce the horizontal time base and turn counterclockwise to increase. The time base information at the upper left corner of the screen will change accordingly during the adjustment.
Page 52: Adjust Trigger Delay
Adjust Trigger Delay Turn the Position Knob on the front panel to adjust the trigger delay of the waveform. During the modification, waveforms of all the channels would move left or right and the trigger delay message at the upper-right corner of the screen would change accordingly. Press down this knob to quickly reset the trigger delay to the center of the screen.
Page 53: Set The Roll Mode
Set the Roll mode Press the Roll button to enter the roll mode. In Roll mode the waveform moves slowly across the screen from right to left. It only operates on time base settings of 50 ms/div and slower. If the current time base setting is faster than the 50 ms/div limit, it will be set to 50 ms/div when Roll mode is entered.
Page 54: Use The Zoom Function
Use the Zoom Function Zoom is a horizontally expanded version of the normal display. You can use Zoom to locate and horizontally expand part of the normal window for a more detailed (higher- resolution) analysis of signals. Press the HORIZONTAL Scale Knob on the front panel to turn on the zoom function, and press the button again to turn off the function.
Page 55: To Set The Sample System
To Set the Sampling System This chapter introduces how to use the run control and set the sampling system of the oscilloscope. The contents of this chapter: ◆ Run Control ◆ Overview of Sampling ◆ To Specify Memory Depth ◆ To Select Sampling Mode ◆...
Page 56: Run Control
Run Control Press the Run/Stop or Single button on the front panel to run or stop the sampling system of the scope. ● When the Run/Stop is green, the oscilloscope is running, that is, acquiring data when trigger conditions are met. To stop acquiring data, press the Run/Stop button. When stopped, the last acquired waveform is displayed.
Page 57: Overview Of Sampling
Overview of Sampling To understand the oscilloscope's sampling and acquisition modes, it is helpful to understand sampling theory, sample rate and oscilloscope bandwidth and sample rate. Sampling Theory The Nyquist sampling theorem states that for a limited bandwidth (band- limited) signal with maximum frequency f , the equally spaced sampling frequency f must be greater...
Page 58: Sample Rate
Sample Rate The maximum sample rate of the oscilloscope is 2GSa/s. The actual sample rate of the oscilloscope is determined by the horizontal scale. Turn the Horizontal Scale Knob to adjust the sample rate. The actual sample rate is displayed in the information area at the upper- right corner of the screen.
Page 59: Oscilloscope Bandwidth And Sample Rate
Oscilloscope Bandwidth and Sample Rate An oscilloscope's bandwidth is typically described as the lowest frequency at which input signal sine waves are attenuated by 3 dB (- 30% amplitude error). At the oscilloscope bandwidth, sampling theory says the required sample rate is f = 2f However, the theory assumes there are no frequency components above f in this...
Page 60: Select Memory Depth
Select Memory Depth Memory depth refers to the number of waveform points that the oscilloscope can store in a single trigger sample and it reflects the storage ability of the sample memory. The oscilloscope provides up to 14 Mpts memory depth. Press the Acquire button on the front panel;...
Page 61: Select Sampling Mode
Select Sampling Mode The oscilloscope only supports real-time sampling. In this mode, the oscilloscope samples and displays a waveform within a trigger event. The maximum real-time sample rate is 1GSa/s. Press the RUN/STOP button to stop the sampling, the oscilloscope will hold the last display.
Page 62: Select Waveform Interpolation Method
Select Waveform Interpolation Method Under real-time sampling, the oscilloscope acquires the discrete sample values of the waveform being displayed. In general, a waveform of dots display type is very difficult to observe. In order to increase the visibility of the signal, the digital oscilloscope usually uses the interpolation method to display a waveform.
Page 63 Figure 16 x Interpolation Figure 17 Sinx/x Interpolation 44 User Manual...
Page 64: Select Acquisition Mode
Select Acquisition Mode The acquisition mode is used to control how to generate waveform points from sample points. The oscilloscope provides the following acquisition mode: Normal, Peak Detect, Average and High Resolution. 1. Press the Acquire button on the front panel to enter the ACQUIRE function menu; 2.
Page 65: Peak Detect
Peak Detect In this mode, the oscilloscope acquires the maximum and minimum values of the signal within the sample interval to get the envelope of the signal or the narrow pulse of the signal that might be lost. In this mode, signal loss can be prevented but displayed noise will increase.
Page 66: Average
Average In this mode, the oscilloscope averages the waveforms from multiple acquisitions to reduce the random noise of the input signal and improve the vertical resolution. The greater the number of averages, the lower the noise will be, and the higher the vertical resolution will be, but the slower the response of the displayed waveform to waveform changes.
Page 67: High Resolution
Figure 22 With Random Noise, Average Mode High Resolution This mode uses a linear averaging technique to average the neighbouring points of the sample waveform to reduce the random noise on the input signal and generate much smoother waveforms on the screen. High Resolution mode can be used on both single shot and repetitive signals, and it does not slow waveform update.
Page 68: Change The Horizontal Format
Change the Horizontal Format Press the Acquire button on the front panel; then press the XY soft key to set the XY(On) or YT(Off) mode. The default setup is YT. It is the normal viewing mode for the oscilloscope. In the Normal time mode, signal events occurring before the trigger are shown to the left of the trigger point and signal events after the trigger point are displayed to the right of the trigger point.
Page 69: Use Sequence Mode
Use Sequence Mode Sequence is also an acquisition mode, which does not display a waveform during the sampling process. This improves the waveform capture rate, to a maximal capture rate of 400,000 wfs/s. So it can capture the small probability events effectively. The oscilloscope runs and fills a memory segment for each trigger event.
Page 70 4. Press the softkey to replay the waveform from the current frame to 1. 5. Press the softkey to stop replay. 6. Press the softkey to replay the waveform from the current frame to the last frame. User Manual...
Page 71: To Trigger The Oscilloscope
To Trigger the Oscilloscope For triggering, set your trigger conditions according to the requirements, and when a waveform in the waveform stream meets this condition, the oscilloscope captures the waveform and displays it on the screen. The trigger circuit ensures that every acquisition centers around the user-defined trigger condition.
Page 72 The contents of this chapter: ◆ Trigger Source ◆ Trigger Mode ◆ Trigger Level ◆ Trigger Coupling ◆ Trigger Holdoff ◆ Noise Rejection ◆ Trigger Type ● Edge Trigger ● Slope Trigger ● Pulse Trigger ● Video Trigger ● Window Trigger ●...
Page 73: Trigger Source
Trigger Source The 2-channel oscilloscope’s trigger source includes analog channels, EXT, EXT/5 and AC Line. The 4-channel oscilloscope’s trigger source includes analog channels and AC Line. Press the Setup button on the front panel to enter the TRIGGER function menu; press the Source softkey and then turn the Universal Knob to select the desired trigger source.
Page 74: Trigger Mode
Trigger Mode The oscilloscope’s trigger mode includes auto, normal and single. The Trigger Mode affects the way in which the oscilloscope searches for the trigger. After the oscilloscope starts running, the oscilloscope operates by first filling the pre-trigger buffer. It starts searching for a trigger after the pre-trigger buffer is filled and continues to flow data through this buffer while it searches for the trigger.
Page 75: Trigger Level
Trigger Level Trigger level and slope define the trigger point, Positive Slope Negative Slope Trigger Level Trigger Point Trigger Point Input Signal You can adjust the trigger level for a selected analog channel by turning the Trigger Level Knob. You can push the Trigger Level Knob to set the level to the waveform's 50% value immediately.
Page 76: Trigger Coupling
Trigger Coupling Press the Setup button on the front panel to enter the TRIGGER function menu, and then press the Coupling softkey and turn the Universal Knob or press the Coupling softkey continually to select the desired coupling mode. The oscilloscope provides 4 kinds of trigger coupling modes: ●...
Page 77: Trigger Holdoff
Trigger Holdoff Trigger holdoff can be used to stablise the trigger on complex waveforms (such as pulse streams or burst waveforms). Holdoff by time is the amount of time that the oscilloscope waits before re-arming the trigger circuitry. The oscilloscope will not trigger until the holdoff time expires.
Page 78: Noise Rejection
Noise Rejection Noise Reject adds additional hysteresis to the trigger circuitry. By increasing the trigger hysteresis band, you reduce the possibility of triggering on noise. However, this also decreases the trigger sensitivity so that a slightly larger signal is required to trigger the oscilloscope.
Page 79 Figure 26 Turn on the Noise Reject If the signal you are probing is noisy, you can set up the oscilloscope to reduce the noise in the trigger path and on the displayed waveform. First, stabilize the displayed waveform by removing the noise from the trigger path. Second, reduce the noise on the displayed waveform.
Page 80: Trigger Type
Trigger Type The oscilloscope provides abundant advanced trigger functions, including various serial bus triggers. ◆ Edge trigger ◆ Slope trigger ◆ Pulse trigger ◆ Video trigger ◆ Window trigger ◆ Interval trigger ◆ DropOut trigger ◆ Runt trigger ◆ Pattern trigger User Manual...
Page 81: Edge Trigger
Edge Trigger Edge trigger distinguishes the trigger points by seeking the specified edge (rising, falling, rising & falling) and trigger level. Rising Edge Falling Edge Trigger Level Trigger Point Trigger Point 1. Press the Setup button on the front panel to enter the TRIGGER system function menu.
Page 82: Slope Trigger
Slope Trigger The slope trigger looks for a rising or falling transition from one level to another level in greater than or less than a certain amount of time. In the oscilloscope, positive slope time is defined as the time difference between the two crossing points of trigger level line A and B with the positive edge as shown in the figure below.
Page 83 Figure 28 Slope Trigger 6. Press the Limit Range softkey; then turn the Universal Knob to select the desired slope condition, and push down the knob to confirm. ● <= (less than a time value): trigger when the positive or negative slope time of the input signal is lower than the specified time value.
Page 84: Pulse Trigger
Pulse Trigger Trigger on the positive or negative pulse with a specified width. Positive Pulse Width Trigger Level Negative Pulse Width 1. Press the Setup button on the front panel to enter the TRIGGER function menu. 2. Press the Type softkey; turn the Universal Knob to select Pulse and then push the knob to confirm.
Page 85 ● [--,--] (within a range of time value): trigger when the positive or negative pulse time of the input signal is greater than the specified lower limit of time and lower than the specified upper limit of time value. For example, for a positive pulse, if you set t (pulse real width) >100ns and t<300ns, the waveform will trigger on the 200ns pulse.
Page 86: Video Trigger
Video Trigger Video triggering can be used to capture the complex waveforms of most standard analog video signals. The trigger circuitry detects the vertical and horizontal interval of the waveform and produces triggers based on the video trigger settings you have selected. The oscilloscope supports standard video signal field or line of NTSC (National Television Standards Committee), PAL (Phase Alternating Line) HDTV (High Definition Television) and custom video signal trigger.
Page 87 The table below takes Of Lines as 800 as an example to explain the relation between Of Lines, Of Fields, Interlace, Trigger Line and Trigger Field. Of Lines Of Fields Interlace Trigger Line Trigger Field 1,2,4 or 8 1, 1~2, 1~4, 1~8 1,2,4 or 8 1, 1~2, 1~4, 1~8 1,2,4 or 8...
Page 88 Figure 30 Video Trigger To Use Custom Video Trigger Custom video trigger supports frame rate of 25Hz, 30Hz, 50Hz and 60Hz, and the line range is available from 300 to 2000. The steps below show how to set custom trigger. 1.
Page 89: Window Trigger
Window Trigger Window trigger provides a high trigger level and a low trigger level. The instrument triggers when the input signal passes through the high trigger level or the low trigger level. There are two kinds of window types: Absolute and Relative. They have different trigger level adjustment methods.
Page 90 Figure 31 Absolute Window Trigger To set window trigger via Relative window type: 1. Press the Setup button on the front panel to enter the TRIGGER system function menu. 2. Press the Type softkey; then use the Universal Knob to select Window and push down the knob to confirm.
Page 91 Figure 32 Relative Window Trigger 72 User Manual...
Page 92: Interval Trigger
Interval Trigger Trigger when the times difference between adjacent rising or falling edges meets the time limit (<=, >=, [--,--], --][--). Trigger Trigger To set interval trigger: 1. Press the Setup button on the front panel to enter the TRIGGER system function menu.
Page 93 Figure 33 Interval Trigger 74 User Manual...
Page 94: Dropout Trigger
DropOut Trigger DropOut trigger includes two types: edge and state. Edge Trigger when the time interval (△T) from when the rising edge (or falling edge) of the input signal passes through the trigger level to when the adjacent rising edge (or falling edge) passes through the trigger level is greater than the timeout time set, as shown in the figure below.
Page 95 Figure 34 Edge DropOut Trigger To set state DropOut trigger: 1. Press the Setup button to enter the TRIGGER system function menu. 2. Press the Type softkey; then turn the Universal Knob to select DropOut and push down the knob to confirm. 3.
Page 96: Runt Trigger
Figure 35 State DropOut Trigger Runt Trigger The Runt trigger looks for pulses that cross one threshold but not another as shown in the picture below. Positive runt pulse High level Low level Negative runt pulse ● A positive runt pulse crosses through a lower threshold but not an upper threshold. ●...
Page 97 5. Press the Limit Range softkey; turn the Universal Knob to select the desired condition (<=, >=, [--,--] or --][--). 6. Press the Time Setting softkey, and then turn the Universal Knob to select the desired value. 7. Press the Next Page softkey to enter the second page of the TRIGGER system function menu.
Page 98: Pattern Trigger
Pattern Trigger The Pattern trigger identifies a trigger condition by looking for a specified pattern. The pattern trigger can be expanded to incorporate delays similar to other triggers. Pattern durations are evaluated using a timer. The timer starts on the last edge that makes the pattern “true”.
Page 99 Universal Knob to select the desired value. Figure 37 Pattern Trigger 80 User Manual...
Page 100: Serial Trigger And Decode
Serial trigger and decode The oscilloscope provides I2C, SPI, UART/RS232, CAN and LIN serial trigger and decode. This chapter introduces the method of triggering and decoding these serial signals in detail. The contents of this chapter: ◆ I2C Trigger and Decoder ◆...
Page 101: I2C Trigger And Serial Decode
I2C Trigger and Serial Decode Three simple steps are necessary to trigger and decode the signals: “Setup for I2C Signals”, “I2C Triggering” and “I2C Decode”. Setup for I2C Signals Setting the I2C (Inter-IC bus) signal includes two steps: connecting the serial data signal (SDA) and serial clock signal (SCK) to the oscilloscope, specifying the threshold voltage of each input signal.
Page 102 and it will be used as the trigger voltage level when setting the trigger type to serial. (Tips: SDA should be stable during the whole high clock cycle, otherwise it will be interpreted as a start or stop condition (data transitioning while the clock is high).) 7.
Page 103: I2C Triggering
I2C Triggering This part introduces the nine trigger conditions (Start, Stop, Restart, No Ack, EEPROM, 7 Bit Addr & Data, 10 Bit Addr & Data and Data Length) and the methods of setting them. Introduction to the trigger conditions ● Start Condition—...
Page 104 Read ● 7 Bit Address & Data — the oscilloscope will be triggered when the following conditions are satisfied. ➢ The address’s length must be 7 bits and the address’s value is the same as the address trigger value. ➢ If you have set either Data1’s or Data2’s value, and the signal has data that is the same as that value.
Page 105 ● 10 Bit Address & Data — the oscilloscope will be triggered when the following conditions are satisfied. ➢ The address’s length must be 10 bits and the address’s value is the same as the address set value. ➢ If you have set either Data1’s or Data2’s value, and the signal has data that is the same as those values in that order.
Page 106 Figure 40 I2C TRIGGER Menu Press the Condition softkey and turn the Universal Knob to select the trigger condition: ● If you select the EEPROM condition: Press the Limit Range softkey to set the qualifier ( = ,< or >). Press Data1 softkey and set its value by turning the Universal Knob.
Page 107: I2C Serial Decode
I2C Serial Decode After completing the setup of I2C signal and trigger, we will decode I2C signals. Steps are as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. Figure 41 I2C Decode Menu 2.
Page 108 Interpreting I2C Decode The frames of decoding result: ● The address of write frame is a dark-green string that contains “W”. ● The address of read frame is a yellow string that contains “R”. ● The data of data frames are white strings. The lists of decoding results: ●...
Page 109: Spi Triggering And Serial Decode
SPI Triggering and Serial Decode Three simple steps are necessary to trigger and decode the signals: “Setup for SPI Signals”, “SPI Triggering” and “SPI Decode” to trigger and decode the signals. Setup for SPI Signals Setting the SPI (Serial Peripheral Interface) signal includes two steps: connecting the CLK, MISO, MOSI and CS signals to oscilloscope;...
Page 110 Figure 43 CLK Menu Set MISO: Press the MISO softkey to enter the MISO menu. Press the MISO softkey to select the channel that is connected to the SPI MISO signal. Press the Threshold softkey to set the SPI MISO signal’s threshold voltage level using the Universal Knob.
Page 111 Table 1 Menu Explanations of the CS Type Parameters Function Settings Explanation Menu low voltage level of CS signal is available high voltage level of CS signal is available CS Type If the time between two edges of clock signal is less than (or CLK Timeout equal to) the value of timeout, the signal between the two edges is treated as a frame.
Page 112: Spi Triggering
SPI Triggering This part will provide a brief introduction and description for the operation of the SPI trigger. 1. Press Setup key to enter the TRIGGER function menu. 2. Press Type and select Serial. 3. Press Protocol and select SPI. 4.
Page 113 Table 3 Menu Explanation of the SPI Bit value Function Settings Explanation Menu High voltage level Bit Value Low voltage level Don’t care the voltage level 8. Press the Next Page softkey. 9. Press the Bit Order softkey to set the bit order (MSB or LSB). 94 User Manual...
Page 114: Spi Serial Decode
SPI Serial Decode After completing the setup of SPI signal and trigger, we will decode SPI signals. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press Display and select On to display the result of decoding. 3.
Page 115 Interpreting SPI Decode The frames of decoding result: ● MISO — the decoding result of “Master-In, Slave-Out” line. ● MOSI —the decoding result of “Master-Out, Slave-In” line. The lists of decoding result: ● NO — the number of frames in screen. ●...
Page 116: Uart/Rs232 Triggering And Serial Decode
UART/RS232 Triggering and Serial Decode The three steps to set up the UART / RS232: “Setup for UART/RS232 Signals”, “UART/RS232Triggering” and “UART/RS232 Decode” to trigger and decode the signals. Setup for UART/RS232 Signals Press the Decode key to enter the DECODE function menu. Press the Decode softkey and select the desired decoder (Decode1 or Decode2).
Page 117 Figure 48 BUS CONFIG Menu Press Baud softkey to set baud rate. ● The baud rate can be set as a predefined value. ● If the desired baud rate is not listed, press Baud and select custom option, press the Custom and turn the Universal Knob to set the desired baud rate. 10.
Page 118: Uart/Rs232 Triggering
UART/RS232 Triggering This part shows a brief introduction and description for the operation of the UART trigger. 1. Press Setup key to enter the TRIGGER function menu. 2. Press Type and select Serial. 3. Press Protocol and select UART. 4. Press Trigger Setting softkey to enter UART TRIG SET menu. Figure 49 UART TRIG SET Menu 5.
Page 119 Figure 50 UART Trigger 100 User Manual...
Page 120: Uart/Rs232 Serial Decode
UART/RS232 Serial Decode After completing the setup of UART signal and trigger, we will decode UART signals. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press Display and select On to display the result of decoding. 3.
Page 121 Interpreting UART/RS232 Decode The frames of decoding result: ● RX — the decoding result of the data received. ● TX — the decoding result of the data transmitted. The lists of decoding result: ● NO — the number of frames on the display. ●...
Page 122: Can Trigger And Serial Decode
CAN Trigger and Serial Decode The steps required for CAN trigger and decode “Setup for CAN Signals”, “CAN Triggering” and “CAN Serial Decode” to trigger and decode the signals. Setup for CAN Signals Press the Decode key to enter the DECODE function menu. Press the Decode softkey and select the desired decoder (Decode1 or Decode2).
Page 123 the Custom and turn the Universal Knob to set the desired baud rate. Press Decode Source to select the signal to be decoded. ● CAN_H — CAN_H signal will be decoded. ● CAN_L — CAN_L signal will be decoded. ● CAN_H-CAN_L —...
Page 124: Can Triggering
CAN Triggering This part will provide a brief introduction and description for the operation of the LIN trigger. To introduce the trigger conditions ● Start— the oscilloscope will be triggered at the start bit of a frame. ● Remote — the oscilloscope will be triggered by a remote frame with specified ID. ●...
Page 125 significant bits can be changed.) ● If you select the ID+DATA condition: a. Press ID bits softkey to select the ID’s length (11 or 29 bits). b. Press Curr ID Byte softkey and use Universal Knob to select the byte that you want to modify.
Page 126: Can Serial Decode
CAN Serial Decode We will decode CAN signals after completing the setup of the CAN signal and trigger. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press Display and select On to display the result of decoding. 3.
Page 127 Interpreting CAN Decode. The frame of decoding results: ● Arbitration field is displayed in the frame ● Control field is displayed in the frame ● Data field is displayed in the frame ● CRC field is displayed in the frame The list of decoding result: ●...
Page 128: Lin Triggering And Serial Decode
LIN Triggering and Serial Decode LIN Trigger and decode steps: “Setup for LIN Signals”, “LIN Triggering” and “LIN Decode” to trigger and decode the signals. Setup for LIN Signals There are two steps for setting the LIN signal, connecting the signal to oscilloscope, specifying the parameters of each input signal.
Page 129: Lin Triggering
LIN Triggering This part will provide a brief introduction and description for the operation of the LIN trigger. The possible trigger conditions ● Break — The oscilloscope will be triggered at the position of break field’s break delimiter. ● ID (Frame ID) — the oscilloscope will be triggered at the position of the identifier field’s stop bit, if the value of a frame’s ID is equal to specified value.
Page 130 5. Press Condition and select the trigger condition using the Universal Knob: ● If you select ID condition: Press ID softkey and set its value by turning the Universal Knob. ● If you select ID+DATA condition: Press ID softkey and set its value by turning the Universal Knob. Press DATA1 softkey and set its value by turning the Universal Knob.
Page 131: Lin Serial Decode
LIN Serial Decode After completing the setup of LIN signal and trigger, we will decode LIN signals. Operation steps as follows. 1. Press Decode→ Decode. Select one of the options from the Decode1 and Decode2. 2. Press Display and select On to display the result of decoding. 3.
Page 132 Interpreting LIN Decode The frame of decoded results: ● Protected Identifier Field is displayed in frame ● Data Length is displayed in frame ● Data Field is displayed in frame. ● Checksum Field is displayed in frame. The list of decoding result: ●...
Page 133: To Save Reference Waveform
To Save A Reference Waveform The oscilloscope can save analog channels or math waveforms to the reference waveform locations in the oscilloscope. Then, a reference waveform can be displayed and compared against other waveforms. All reference waveforms can be displayed at the same time. The contents of this chapter: ●...
Page 134: To Save Ref Waveform To Internal Memory
To Save a REF Waveform to Internal Memory Do the following steps to save the REF waveform to internal memory: 1. Press the REF button on the front to enter the REF WAVE function menu. Note that when the time horizontal format is in X-Y mode, REF function cannot be enabled. 2.
Page 135: To Adjust Ref Waveform Display
To Adjust the REF Waveform Display 1. Please refer to the “To Display a REF Waveform” above to display the desired reference waveform. 2. Press the Scale and Position softkey and turn the knob to adjust the vertical universal scale and position of the reference waveform. The vertical scale and position information displays in the middle of the screen.
Page 136: To Clear Ref Waveform Display
To Clear the REF Waveform Display The oscilloscope does not have the “Clear” option under the REF WAVE function menu. To clear the appointed reference waveform, you can save a new reference waveform to the same location to replace it. User Manual...
Page 137: To Make Math Operation
To Make a Math Operation The oscilloscope supports many math operations between analog channels including addition (+), subtraction (-), multiplication (*), division (/), FFT, differential (d/dt), integral (∫dt), square root (√). The resulting math waveform is displayed in white and labelled with “M”.
Page 138: Math Operators
Math Operators The oscilloscope supports math count operation (Addition, subtraction, multiplication, division), FFT (Fourier transform) operation and math function operation (differential, integral, square root). Addition or Subtraction Math operators perform arithmetic operations add or subtract operation on any two analog input channels.
Page 139: Multiplication And Division
Multiplication and Division There are Math operators to perform multiplication or division arithmetic operations on anytwo analog input channels. When you select multiplication or division, the Source A and Source B values are multiplied or divided point by point and the result is displayed. 1.
Page 140: Fft Operation
FFT Operation FFT is used to compute the fast Fourier transform using analog input channels. FFT takes the digitized time record of the specified source and transforms it to the frequency domain. When the FFT function is selected, the FFT spectrum is plotted on the oscilloscope display as magnitude in dBV versus frequency.
Page 141 To display an FFT waveform: 1. Press the Math button on the front panel to open the MATH function menu. 2. Press the Operation softkey and then turn the Universal Knob to select FFT. The resulting math waveform is displayed in white and labeled with “M”. 3.
Page 142 10. Press the Display softkey to select Split, Full Screen or Exclusive display mode. ● Split: the source channel and the FFT operation results are displayed separately. The time domain and frequency domain signals are displayed clearly. ● Full Screen: the source channel and the FFT operation results are displayed in the same window to view the frequency spectrum more clearly and to perform more precise measurements.
Page 143: Math Function Operation
To measure FFT waveform: To make cursor measurements, press the Cursors button, and then press the Mode softkey to select On to turn the cursors on, Use the X1 and X2 cursors to measure frequency values and the difference between two frequency values (ΔX). Use the Y1 and Y2 cursors to measure amplitude in dB and difference in amplitude (ΔY).
Page 144: Integrate
Figure 60 Differential Function Operation You can use differentiate to measure the instantaneous slope of a waveform. For example, the slew rate of an operational amplifier may be measured using the differentiate function. Note: Because differentiation is very sensitive to noise, it is helpful to set acquisition mode to Average.
Page 145: Square Root
Figure 61 Integral without Offset Integral with Offset Figure 62 Square Root Square root ( ) calculates the square root of the selected source. Where the transform is undefined for a particular input, holes (zero values) appear in the 126 User Manual...
Page 146 function output. Figure 63 Square Root User Manual...
Page 147: To Make Cursors Measurements
To Make Cursors Measurements Cursors are horizontal and vertical markers that indicate X- axis values and Y- axis values on a selected waveform source. You can use cursors to make custom voltage or time measurements on oscilloscope signals. X Cursors X cursors are vertical dashed lines that adjust horizontally and can be used to measure time (when the source is FFT waveform, X cursors measure frequency) X1 cursor is the left (default position) vertical dotted line;...
Page 148: To Make Cursor Measurements
To Make Cursor Measurements 1. Press the Cursors button on the front panel to enter the CURSOR function menu. 2. Press the Mode softkey and set the option to On. 3. Press the Source softkey, and then use the Universal Knob to select the desired source.
Page 149: To Make Measurements
How To Make Automatic Measurements The oscilloscope provides measurements of 36 waveform parameters and the statistics. It contains voltage, time and delay parameters. Voltage and time parameters are under the Type option. The results of the last five selected measurements are displayed at the bottom of screen, above the menu. Delay parameters are under the All Measure submenu.
Page 150: Type Of Measurement
Type of Measurements Voltage Measurements Voltage measurements include 15 kinds of voltage parameter measurements. Figure 65 Voltage Measurements 1. Pk-Pk: Difference between maximum and minimum data values. 2. Max: Highest value in input waveform. 3. Min: Lowest value in input waveform. 4.
Page 151 Figure 66 Overshoot 14. Preshoot: Preshoot is distortion that precedes a major edge transition expressed as a percentage of Amplitude. The X cursors show which edge is being measured (edge closest to the trigger reference point). Figure 67 Preshoot 15. L@X: the voltage value between the trigger point and the vertical position of the channel 132 User Manual...
Page 152: Time Measurements
Time Measurements Time measurements include 9 kinds of time parameter measurements. Figure 68 Time Measurements 1. Period: Period for every cycle in a waveform at the 50% level, using positive slope. 2. Frequency: Frequency for every cycle in a waveform at the 50% level, using positive Slope.
Page 153: Delay Measurements
Delay Measurements Delay measurements measure the time different between arbitrary two channels, including 9 kinds of delay measurements. 1. Phase: Calculate the phase difference between two edges. 2. FRR: Time between the first rising edges of the two channels. 3. FRF: Time from the first rising edge of channel A ,to the first falling edge of channel B. 4.
Page 154: To Make Automatic Measurement
Automatic Measurements Perform the steps below and select voltage or time parameters to make automatic measurements. 1. Press the Measure button on the front panel to enter the MEASURE function menu. The frequency and period will be enabled on the current trigger channel along with the statistics.
Page 155 Figure 70 Added the Measurement Note: if the parameter does not match the measure condition, it will display as “****”. 136 User Manual...
Page 156: To Clear Measurement Parameters
Clear Measurement Parameters Press the Clear softkey to clear all the measurement parameters that are displaying on the screen. To Make All Measurements All measurements could measure all the voltage, time and delay parameters of the current measurement source and display the results on the screen. Figure 71 All Parameters Measurement Do the following steps to make all parameters measurement.
Page 157: Display Setting
Display Setting You can set the display type, color, persistence, grid type, waveform intensity, grid brightness and transparence. The contents of this chapter: ◆ To Set Display Type ◆ To Set Color Display ◆ To Set and Clear Persistence ◆ To Clear the Display ◆...
Page 158: To Set Display Type
To Set Display Type Press the Display button on the front panel, and then press the Type softkey to select Vectors or Dots display type. ● Vectors: the sample points are connected by lines and displayed. Normally, this mode can provide the most vivid waveform to view the steep edge of a waveform (such as a square wave).
Page 159: To Set Color Display
Set Display Color Temperature Color temperature adopts the change of waveforms’ color to reflect the change of the waveforms’ appearance. The more frequently that the waveform appears, the warmer the color is; the less frequent the waveform appears, the colder the color is. The picture below shows the change of color from cold to warm.
Page 160: To Clear The Display
Figure 75 Persist Set to Infinite 3. When the Persist is On, to erase the results of previous acquisitions from the display, press the Clear Persist softkey. The oscilloscope will start to accumulate acquisitions again. 4. To return to the normal display mode, turn off persist and the previous acquisitions will be clear at once.
Page 161: To Select Grid Type
To Select Grid Type To select grid type 1. Press the Display/Persist button on the front panel to enter the DISPLAY function menu. 2. Press the Next Page softkey to go to the second page of the Display function menu. 3.
Page 162: To Adjust Grid Brightness
To Adjust Grid Brightness Do the following steps to adjust the grid brightness: 1. Press the Display button on the front panel to enter the DISPLAY function menu. 2. Press the Next Page softkey to go to the second page of the Display function menu. 3.
Page 163: Save And Recall
Save and Recall Oscilloscope setups, waveforms, pictures, and CSV files can be saved to internal oscilloscope memory or to a USB storage device. The saved setups or waveforms can be recalled later. The oscilloscope provides a USB Host interface on the front panel to connect a USB device for external storage.
Page 164: Save Type
Save Type The oscilloscope supports setups, waveforms, pictures and CSV files storage. The default save type is setups. 1. Setups It’s the default storage type of the oscilloscope. It saves the settings of the oscilloscope in internal or external memory in “*.SET” format. At most 20 setting files (from No.1～No.20) can be stored in internal memory.
Page 165 8. Matlab The oscilloscope saves the waveform data to external memory in “*.DAT” format. The data of all the channels turned on can be saved in the same file. The recall of Matlab file is not Supported. The data file is for use on an external PC. 9.
Page 166: Internal Save And Recall
Internal Save and Recall Internal save and recall supports Setups in Save/Recall. In the following part, the save and recall method and procedures are introduced. ➢ Save the specified oscilloscope setting in internal memory. 1. Connect the signal to the oscilloscope and obtain a stable display. 2.
Page 167: External Save And Recall
External save and recall Before using external storage and recall, make sure that the USB flash device is connected correctly. External storage supports all the types of files in save, but in recall, Picture and CSV are not supported. ➢ Save the specified type of file in the external USB flash device.
Page 168 U-disk0/T3DSO12XX.ref T3DSO1000.ADS T3DSO1000.png TeledyneTestTools.txt T3DSO1000_User_Manual.pdf Figure 77 Select Save Location 5. After the save position is selected, press the New softkey to turn on the interface as shown in the figure below. Refer to the descriptions in “To Create a new file or fold”...
Page 169 ➢ Load the specified type of file in the external USB storage device. 7. Press the Save/Recall button on the front panel to enter the SAVE/RECALL function menu. 8. Press the Type softkey to select Waveforms or Setup 9. Press the Recall softkey to enter the SAVE/RECALL file system. 10.
Page 170: Disk Management
Disk Management Disk management manages the save and recall operations once the oscilloscope is connected to a USB storage device. Before using USB storage, make sure that the USB storage device is connected correctly. Execute the following operations through the disk management menu: ◆...
Page 171: To Create A New File Or Folder
To Create a New File or Folder This operation is only valid with external storage. The oscilloscope supports English. The file name or folder name can contain letters, numbers, underscores and spaces Let’s use an example to introduce how to create a file or folder. Example: create a file or folder named “T3DSOab”...
Page 172: To Delete A File Or Folder
To delete a file or folder This operation is only valid for external storage. 1. Press the Save/Recall button on the front to enter the SAVE/RECALL function menu. 2. Press the Save softkey, and then turn the Universal Knob to select one (if select Setups, please set the Save To option to External).
Page 173: Digital Channels(Option)
Digital Channels(Option) This chapter describes how to use the digital channels of a Mixed-Single Oscilloscope (MSO). The digital channels are available on the 4-channel oscilloscopes that have the MSO activation license installed. This chapter contains the following items: ◆ To Connect the Digital Probes to the Device-under-test ◆...
Page 174: To Connect The Digital Probes To The Device-Under-Test
To Connect the Digital Probes to the Device-under-test 1. If necessary, turn off the power supply to the device-under-test. ● Turning off the power to the device-under-test prevents damage that might occur if you accidentally short lines together while connecting probes. You can leave the oscilloscope powered on because no voltage appears at the probes.
Page 175: Acquiring Waveform Using The Digital Channels
Acquiring Waveforms Using the Digital Channels Press the Digital button on the front panel to open the digital channels and start acquiring digital channel waveforms. For digital channels, each time the oscilloscope takes a sample it compares the input voltage to the logic threshold. If the voltage is above the threshold, the oscilloscope stores a 1 in the sample memory;...
Page 176: To Switch A Single Channel On Or Off
Figure 82 High Display Type The display type control lets you spread out or compress the digital traces vertically on the display for more convenient viewing. To Switch a Single Channel On or Off 1. Press the Digital button on the front panel to open the DIGITAL function menu. 2.
Page 177: To Change The Logic Threshold For Digital Channels
To Change the Logic Threshold for Digital Channels 1. Press the Digital button on the front panel to open the DIGITAL function menu. 2. Press the Threshold softkey to enter the THRESHOLDS menu. 3. Press the D0~D7 or D8~D15 softkey, then turn the Universal Knob to select a logic family preset or select Custom to define your own threshold.
Page 178: To Display Digital Channels As A Bus
To Display Digital Channels as a Bus Digital channels may be grouped and displayed as a bus, with each value displayed at the bottom of the display in hex or binary. You can create up two buses. To configure and display each bus, do the following steps: 1.
Page 179: System Function Setting
System Function Setting This function module supports the oscilloscope’s system-related functions, such as system status, language, sound and some other advanced settings, such as self cal, update and remote interface configure. The contents of this chapter: ◆ To View the System Status ◆...
Page 180: To View The System Status
To View the System Status Do the following steps to view the system status: 1. Press the Utility button on the front to enter the UTILITY function menu. 2. Press the System Status softkey to view the system status of the oscilloscope. The system status includes the information below: ●...
Page 181: To Do Self Calibration
To Do Self Calibration The self-calibration program can quickly make the oscilloscope reach the best working state to get the most precise measurement values. You can perform self-calibration at any time especially when the environment temperature changes by more than 5 ℃.
Page 182: To Enable Or Disable The Sound
To Enable or Disable the Sound When the sound is enabled, you can hear the sound of the beeper when you press a function key or a menu softkey or when the prompt message pops up. Press the Utility button on the front panel to enter the UTILITY function menu; then press Sound softkey to select to turn on or off the sound.
Page 183: To Do Pass/Fail Test
Pass/Fail Testing One way to verify a waveform's compliance to a particular set of parameters is to use pass/fail testing. A pass/fail defines a region of the oscilloscope's display in which the waveform must remain in order to comply with chosen parameters. Compliance to the mask is verified point- by- point across the display.
Page 184: To Set And Perform Pass/Fail Test
To Set and Perform Pass/Fail Test Do the following steps to set and perform pass/fail test: 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2. Press the Next Page softkey to go to the second page of the UTILITY function menu. 3.
Page 185: To Save And Recall Test Mask
Save and Recall Test Masks Users can save the current test mask to the internal Flash memory or external USB flash device. The file format of the test mask file is “*.RGU”. Save Test Mask to Internal Memory 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2.
Page 186 Save Test Mask to External Memory Do the following steps to save the test mask to external memory: 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2. Press the Next Page softkey to go to the second page of the UTILITY function menu. 3.
Page 187: Arbitrary Waveform Generator(Option)
Arbitrary Waveform Generator(Option) The T3DSO1000 supports an external Arbitrary Waveform Generator (AWG) ,which can easily and quickly provide multiple output waveforms for users. The AWG provides two kinds of waveforms: the standard waveform and the Arb. The Arb waveform consists of two types: the system’s built-in waveforms and the stored waveforms.
Page 188: Output
Output Connect AWG with USB cable, and the oscilloscope interface indicates "AWG device connection success", Press the Utility→Next Page4/4→AWG, to enter the function menu interface of the AWG system as shown below, including: Output, Wave, Setting, System, Remove Device. Figure 89 AWG Menu Interface Press Output softkey to open or close the AWG output.
Page 189 Frequency Amplitude Offset Type Character Range (High-Z) (High-Z) Use the Universal Knob to adjust the Frequency/ Frequency Fine/ Period/ Period Fine/ Sine Amplitude/ Amplitude Fine/ 1uHz~25MHz 4mV~6V ± 3.0V High-Level/ High-Level-Fine/ Offset/ Offset Fine/ Low-Level/ Low-Level-Fine value. Use the Universal Knob to adjust the Frequency/ Frequency Fine/ Period/...
Page 190: Setting
3. How to setup an Arb waveform Press the Utility→Next Page4/4→AWG→Wave then select the Arb, and it has two types: Stored Arb： Users can edit the Arb through a PC. Download the edited Arb to the instrument through the remote interface, or read from the U disk which has stored the Arb. Choose Wave Type→ Arb→...
Page 191 2. Sync Output Press Utility → NextPage4/4→ AWG→ Setting→ Sync Output, the AWG provides Sync output through the [Aux In/Out] connector on the rear panel. When the Sync Output is on, the port can output a CMOS signal with the same frequency as basic waveforms (except the Noise and DC), arbitrary waveforms, and modulated waveforms (except external modulation).
Page 192: Systems
Systems System Status： Press Utility →NextPage4/4→ AWG → System, then select the System Status option to view the AWG’s system information, including software version, hardware version, and serial number. After finished, press the return soft key to quit the interface of system information.
Page 193: Remove Device
Figure 94 AWG Update Interface 1. After the update is finished, the AWG will automatically disconnect and display a message “Update completed, please reconnect AWG device!” Note： Don't disconnect the power whilst the AWG is being updated！ Remove Device Press Utility→NextPage4/4→AWG→RemoveDevice and the oscilloscope interface will display "AWG device removed!"...
Page 194: Io Set
Setting IO Interfaces The oscilloscope provides abundant IO interfaces, including: USB Device, LAN and Aux Output. To Set the USB Device Do the following steps to set the oscilloscope to communicate with a PC via USB: 1. Install the USBTMC device driver on the PC. Also install NI Visa. 2.
Page 195: To Set The Lan
To Set the LAN Do the following steps to set the oscilloscope to communicate with PC via LAN: 1. Connect the oscilloscope to your local area network using the network cable. 2. Press the Utility button on the front panel to enter the UTILITY function menu. 3.
Page 196: To Set The Wlan (Option)
To Set the WLAN (Option) Only 4 channel scopes support this function. Do the following steps to set the oscilloscope to communicate with a PC via WLAN: 1. Connect the oscilloscope USB Host to your wireless network adapter, and make sure your local wireless network is enabled.
Page 197: To Set Aux Output
To Set Aux Output The default Aux output type is Trig Out. If Pass/Fail is enabled, it will change to Pass/Fail automatically. ● Trig Out: The oscilloscope outputs a signal on each oscilloscope trigger. The maximal capture rate is 100k wfs/s. ●...
Page 198: To Use The Web Server
To Use the Web Server T3DSO1000 (4-channel scopes) provides the web server function; you can access and control the oscilloscope using a web browser. Connect the oscilloscope to your LAN (or WLAN), then type the oscilloscope's IP address in the web browser. The oscilloscope's web interface is displayed.
Page 199: To Update Firmware And Configuration
To Update Firmware and Configuration The firmware and configuration can be updated directly via USB flash drive. Do the following steps to update the firmware: 1. Insert the USB flash drive which contains the firmware and the configure files into the USB host interface on the front panel of the oscilloscope.
Page 200: Do Self Test
Self Test Self test includes screen test, keyboard test, buttons, knobs and LED test. Screen Test 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2. Press the Next Page softkey to go to the second page of the UTILITY function menu. 3.
Page 201: Keyboard Test
Keyboard Test Keyboard test is used to test that the keys and knobs work correctly. Do the following steps to do the keyboard test: 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2. Press the Next Page softkey to go to the second page of the UTILITY function menu. 3.
Page 202: Led Test
LED Test LED test is used to test the button lights. 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2. Press the Next Page softkey to go to the second page of the UTILITY function menu. 3.
Page 203: To Specify Screen Saver Time
Specify Screen Saver Time When the oscilloscope enters the idle state for a certain period of time, the screen saver program will be enabled. Do the following steps to set the screen saver time: 1. Press the Utility button on the front panel to enter the UTILITY function menu. 2.
Page 204: To Use The Expand Setting
To Use the Expand Setting Press the Utility button on the front panel; then; press Expand Setting softkey to enter the EXPANDSETTING menu. Press the Vertical softkey to select Fixed Offset or Fixed Position. Fixed Position: when the vertical gain is changed, the oscilloscope will keep the vertical offset level indicator stationary.
Page 205: Option Management
Option Management The T3DSO1000 provides multiple options to fulfil your measurement requirements. Please contact your Teledyne Test Tools sales representative or Teledyne Test Tools technical support to order the corresponding options. You can view the options currently installed on the oscilloscope or activate the newly purchased option license codes through this menu.
Page 206 Figure 100 Option Information User Manual...
Page 207: Search
Search The T3DSO1000 4 channel scopes provides a search function. This function can search for the events that users specify in the acquired data. The results are displayed with a white triangle symbol. The maximum search events is 700 in the YT mode or the Roll mode with the acquisition in stopped.
Page 208 Search Mode Setting Menu Description Edge Slope includes Rising, Falling, Either. Slope Slope includes Rising, Falling Limit Range includes four types: <=, >=, [--,--] and --][-- , Users can select the desired type and then input the time value. Pulse Polarity includes Positive and Negative Limit Range includes four types: <=, >=, [--,--] and --][-- , Users can select the desired type and then input the time value.
Page 209: Results
Results Figure 106 Search When Stopped For example, when the acquisition is stopped, “EVENT NUM:4/7” means the current event number and total number of events. The current event (number 4) is the closest event to the middle of the screen. Figure 107 Search When Running.
Page 210: Navigate
Navigate The T3DSO1000 4 channel oscilloscope models provide three navigation types: Search Event, Time, History Frame. This is not available on the 2 channel models. Time navigate Press Navigate on the front panel to enter the NAVIGATE function menu. Press Type softkey In the NAVIGATE function menu, then, select Time. There are two ways to navigate time.
Page 211: Bode Plot
Bode Plot The bode plot application for the T3DSO1000 (4 channel scope models only) controls a external arbitrary waveform generator (AWG, only the Teledyne Test Tools T3DSO1000 arbitrary waveform generator is supported) to sweep a sine wave across a range of frequencies while measuring the input to and output from a device under test (DUT).
Page 212: Perform Bode Plot Application
Perform a Bode Plot This section gives an overview of the steps to take when performing a Bode Plot measurement. Press the Utility on the front panel to enter the UTILITY function menu; then press the Next Page softkey to enter the second page. Press Bode Plot softkey to enter the BODEPLOT function menu, only the Default button on the front panel can be used.
Page 213 （2） Press AWG I/O softkey to enter the AWG I/O menu. ● Press the Type softkey, then turn the Universal Knob to select the desired type. Connect the oscilloscope USB Host to the external AWG’s USB Device via a USB cable. Connect the oscilloscope and the external AWG to your local area network.
Page 214 When Vout/Vin mode is enabled, the Y-Axis can be set to linear or logarithmic by pressing Axis Type softkey. When Vout mode is enabled, there are six types unit can be chosen by pressing Unit softkey. （2） Press Phase softkey to enter the Phase menu. ●...
Page 215: To Use The History Function
（2） Press Source softkey to choose the output DUT channel that you require. （3） Press Save softkey (Recall softkey) to enable the bode plot save (recall) function. For the details of save (recall) see Chapter “Save and Recall”. The History Function The history function will continuously record the waveforms of the input channels.
Page 216 ● The maximal acquisition number is determined by the current sampling point (Curr value) and sampling rate. ● The History Mode maximum acquisition count can only be reached if enough acquisitions have been acquired, otherwise a smaller number of acquisitions will be shown.
Page 217: Factory Setup
Factory Setup Press Save/Recall function key, then press “Save” menu. Select “To Default Key”, set the type to “Factory Setup”. Then press the Default button on the front to set the oscilloscope to the factory setup. Another way is to press Save/Recall function key, then press “Recall”...
Page 218 Mode Auto Display Type Vectors Color Persist Grid Intensity Graticule Transparence Cursor Mode Type Source -3.5μs 3.5μs Save/Recall Type Setups Save To Internal Setup NO.1 Utility IO Set USB Device USBTMC Aux Output Trig Out Sound Sound Pass/Fail Enable Test Source Operate Mes Display...
Page 219 Quick-Cal Screen Saver 30min Math Operate Source A Source B Invert V/div 1.00 V/div offset Source A Source B Invert V/div 1.00 V/div offset Source A Source B Invert V/div 1.00 V^2/div offset 0 V^2 Source A Source B Invert V/div 1.0/div offset...
Page 220 Vertical Offset 0.2 div ∫dt Source Offset Vertical Scale 1.00 μVS/div Vertical Offset √ Source Vertical Scale 1.00 V /div Vertical Offset Source Location REF A Display User Manual...
Page 221: Troubleshooting
Troubleshooting The commonly encountered failures and their solutions are listed below. Please contact Teledyne Test Tools if the problem is not listed below and you need further assistance. The screen has no display after power on: Check whether the power is correctly connected.
Page 222 Make sure that the USB storage device being used is flash storage. This oscilloscope does not support other hardware storage types. Restart the instrument and then insert the USB storage device to check it. If the USB storage device still cannot be used normally, please contact Teledyne Test Tools. User Manual...
Page 223 © 2018 Teledyne Test Tools a brand and trademark of Teledyne LeCroy Inc. All rights reserved. Specifications, prices, availability and delivery subject to change without notice. Product brand or brand names are trademarks or requested trademarks of their respective holders.
