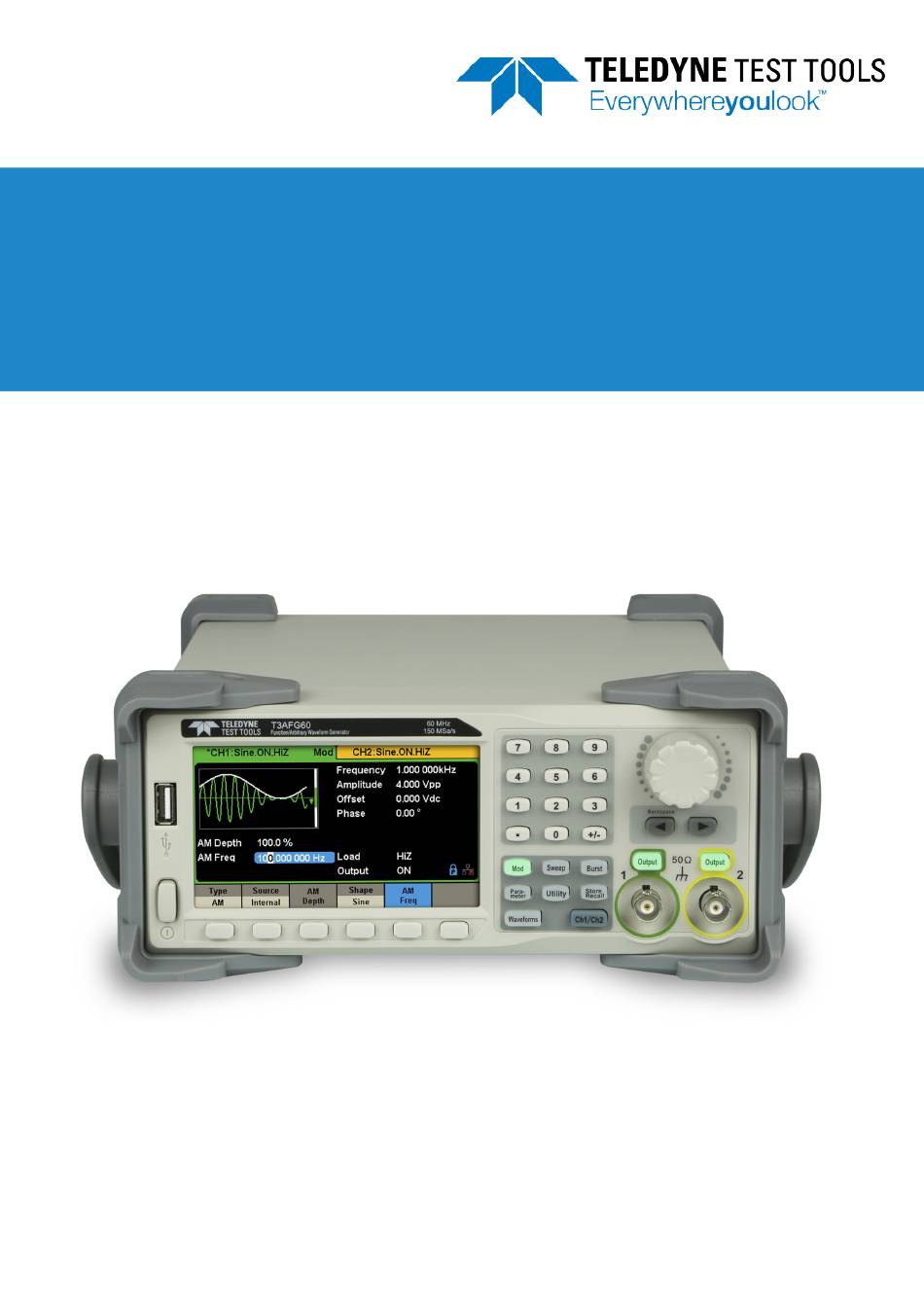

- Page 1 T3AFG30 / T3AFG60 Function / Arbitrary Waveform Generators Quick Start Guide...
-
Page 2: Table Of Contents
Resale or unauthorized duplication of Teledyne LeCroy publications is strictly prohibited. Teledyne Test Tools is a trademark of Teledyne LeCroy, Inc., Inc. Other product or brand names are trademarks or requested trademarks of their respective holders. -
Page 3: General Safety Summary
Before connecting to the instrument, read the manual to understand the input/output ratings. Do not operate with suspected failures. If you suspect that the instrument is damaged, contact the Teledyne LeCroy service department immediately. Do not operate in wet/damp conditions. - Page 4 Safety Terms and Symbols The following terms may appear on the instrument: DANGER: Direct injury or hazard may occur. WARNING: Potential injury or hazard may occur. CAUTION: Potential damage to instrument/property may occur. The following symbols may appear on the instrument: Earth Protective Frame or...
-
Page 5: Handle Adjustment
Handle Adjustment Users can adjust the handle to the required position by pulling the mounting points outward and adjusting the handle position. Handle Adjustment Carrying Position Horizontal Position... -

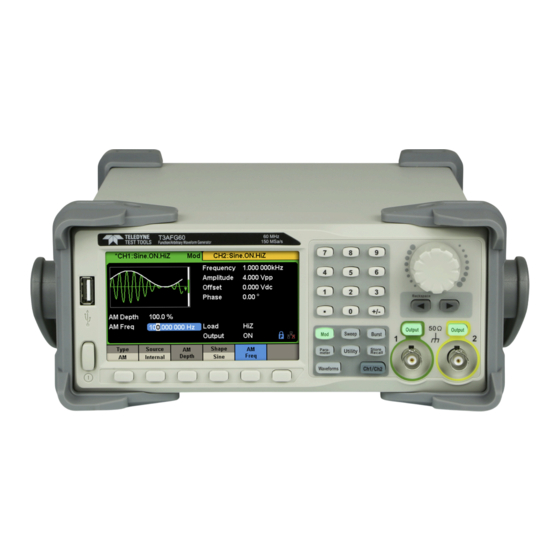

Page 6: The Front Panel
Front Panel 1 Power Button 7 CH1/CH2 Control/Output Port 2 USB Host Port 8 Channel Select Key 3 T FT Display 9 Function Keys 4 Numeric Keypad 10 Waveform Selection Key 5 Adjust Knob 11 Menu Keys 6 Arrow Keys 1. - Page 7 5. Adjust Knob Used to increase (clockwise) or decrease (anticlockwise) the current ● numerical value when setting parameters. Also used to change characters when inputting a file name. ● When saving or reading files, rotate the knob to choose a position to save a ●...
- Page 8 8. Channel Select Key Used to switch the current selected channel between CH1 and CH2. 9. Function Keys Mod ----Modulation Used to enable the modulation screen and allow for modulation selection. The selection is AM, DSB-AM, FM, PM, ASK, FSK, PSK and PWM modulated signals. •...
- Page 9 Store/Recall ----Store and Recall Used to store/recall the instrument’s setup or arbitrary waveform data edited by users. • Can be used to perform general file operations. • In addition to the built-in nonvolatile memory (C disk), an external USB drive (D disk) can be used to store data.
- Page 10 Waveforms ---- Noise Provides White Gauss Noise output with a bandwidth of the waveform generator model. • The Waveforms backlight will turn on when this function is selected. • “Stdev” and “”Mean” of the noise signal can be adjusted. Waveforms ---- Arb Provides arbitrary waveform output which ranges from 1μHz to 6 MHz.
-
Page 11: Back Panel
Back Panel 1. Counter BNC connector. The input impedance is 1M Ω. This connector is used to accept the signal measured by the frequency counter. 2. Aux In/Out BNC connector. The function of this connector is determined by the mode of the instrument. - Page 12 4. Earth Terminal Used to ground the instrument. 5. AC Power Supply Input The generator can accept two different types of AC input power: 100-240 V at 50/60 Hz, or 100-120 V at 400 Hz 6. USB Device Used when connecting the instrument to an external computer to allow waveform editing and remote control.
-
Page 13: Tft Color Display
TFT Color Display The generator can only display parameters and waveform of one channel at a time. The picture below shows the interface when CH1 chooses AM modulation of sine waveform. The information displayed may vary depending on the function selected. 1.Waveform Display Area Shows the currently selected waveform of each channel. - Page 14 4. Channel Parameters Area Displays the current selected channel’s load and output settings. Load ----Value of the output load, as selected by the user. • After choosing the parameter to highlight it, use the softkeys, number keys or knob to change the parameter value. •...
-
Page 15: Built-In Help System
10. Technical support Introduction to EasyWaveX The T3AFG30 and T3AFG60 series includes arbitrary waveform editing software called EasyWaveX. This software is a platform for easily creating, editing, and transferring waveforms to the generator. It provides 11 standard waveforms such as Sine, Square, Ramp, Pulse, Noise and DC, which meets most engineers’... -
Page 16: Certifications
Certifications Teledyne LeCroy certifies compliance to the following standards as of the time of publication. Please see the EC Declaration of Conformity document shipped with your product for current certifications. EMC Compliance EC DECLARATION OF CONFORMITY - EMC The instrument meets intent of EC Directive 2014/30/EU for Electromagnetic Compatibility. - Page 17 The instrument is subject to disposal and recycling regulations that vary by country and region. Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, please visit teledynelecroy.com/recycle.
- Page 18 RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) EC DECLARATION OF CONFORMITY – RoHS Unless otherwise specified, all the materials and processes are compliant with RoHS Directive 2011/65/EU in its entirety, inclusive of any further amendments or modifications of said Directive. CHINA RoHS 2 Unless otherwise specified, all the materials and processes are compliant with the latest requirements of China RoHS 2.
- Page 20 �me to market. The Teledyne Test Tools brand expands on the Teledyne LeCroy product portfolio by adding a comprehensive range of test equipment solu�ons for its customers. The new range of product solu�ons deliver engineers with a broad range of quality test solu�ons that enables speed to market product valida�on and design.
