3.9 Final Set-up and Test

To test the set-up and ensure that the adjustable frequency drive is running, follow these steps.

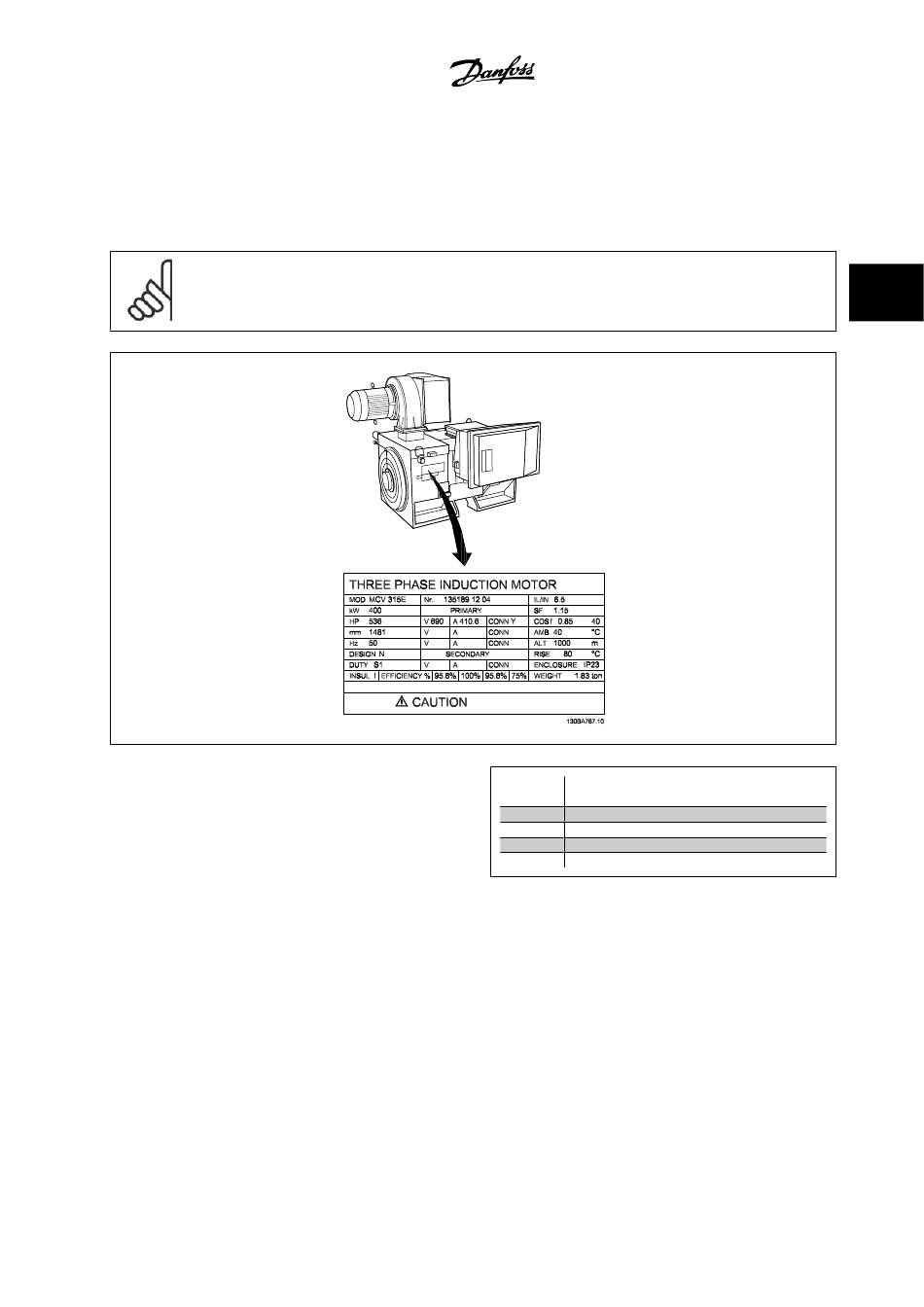

Step 1. Locate the motor nameplate
NOTE!
The motor is either star- (Y) or delta-connected (Δ). This information is located on the motor nameplate data.
Step 2. Enter the motor nameplate data in this parameter list.
To access this list, first press the [QUICK MENU] key, then select "Q2
Quick Set-up".
1.
2.
3.
4.
5.
®
MG.20.P3.22 - VLT is a registered Danfoss trademark
Motor Power [kW]
par. 1-20
Motor Power [HP]
par. 1-21
Motor Voltage
par. 1-22
Motor Frequency
par. 1-23
par. 1-24 Motor Current
par. 1-25 Motor Nominal Speed
