Danfoss VLT AQUA Instruction Manual page 140

5 How to program the adjustable frequency
drive
6-52 Terminal 42 Output Max Scale
Range:
100.00 %* [0.00 - 200.00 %]

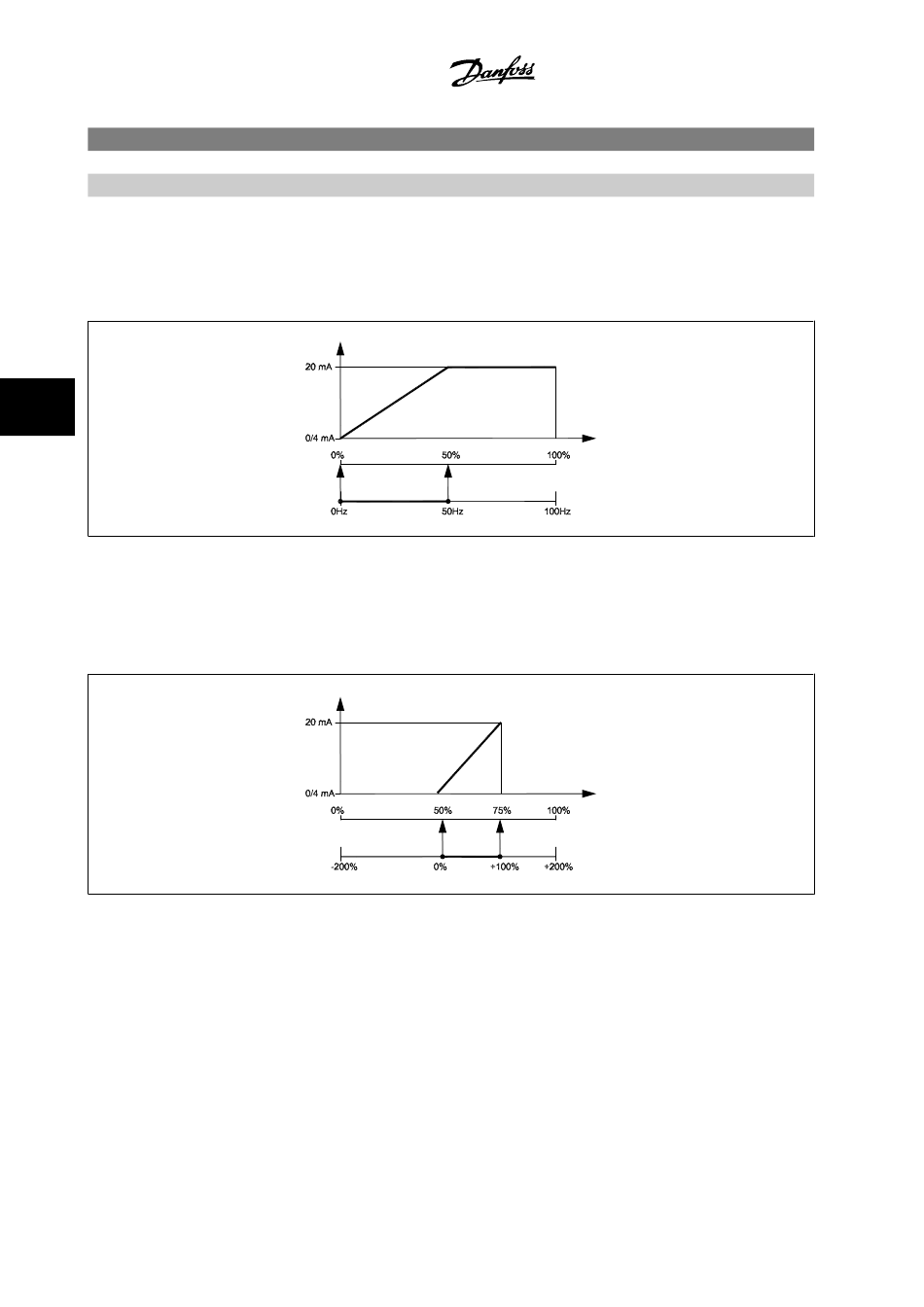

EXAMPLE 1:
Variable value= OUTPUT FREQUENCY, range = 0–100 Hz
Range needed for output = 0–50 Hz
Output signal 0 or 4 mA is needed at 0 Hz (0% of range) - set par. 6-51
Output signal 20 mA is needed at 50 Hz (50% of range) - set par. 6-52
5
EXAMPLE 2:
Variable= FEEDBACK, range= -200% to +200%
Range needed for output= 0–100%
Output signal 0 or 4 mA is needed at 0% (50% of range) - set par. 6-51
Output signal 20 mA is needed at 100% (75% of range) - set par. 6-52
EXAMPLE 3:
Variable value= REFERENCE, range= Min ref - Max ref
Range needed for output= Min ref (0%) - Max ref (100%), 0–10 mA
Output signal 0 or 4 mA is needed at Min ref - set par. 6-51
Output signal 10 mA is needed at Max ref (100% of range) - set par. 6-52
(20 mA / 10 mA x 100%=200%).
5-34
Function:
Terminal 42 Output Min Scale
Terminal 42 Output Max Scale
Terminal 42 Output Min Scale
Terminal 42 Output Max Scale
Terminal 42 Output Min Scale
Terminal 42 Output Max Scale
®
MG.20.P3.22 - VLT is a registered Danfoss trademark
VLT AQUA High Power Instruction Manual
to 0%
to 50%
to 50%
to 75%
to 0%
to 200%
