3 How to Install
3

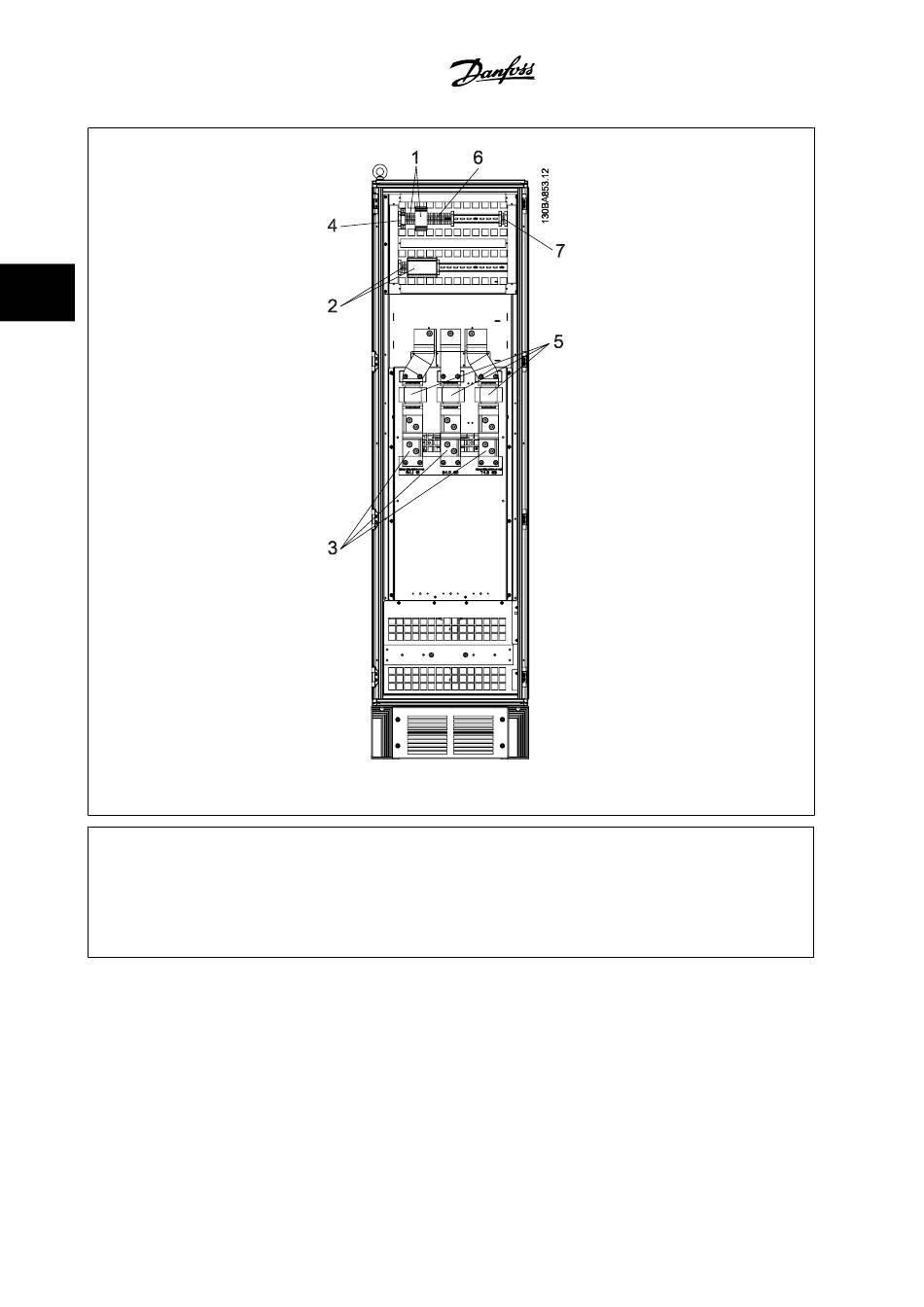

Figure 3.48: Options Cabinet, frame size F3 and F4
1)
Pilz Relay Terminal
2)
RCD or IRM Terminal
3)
Line power
R
S
T
91
92
93
L1
L2
L3
3-52
4)
Safety Relay Coil Fuse with PILS Relay
See fuse tables for part numbers
5)
Line Fuses, F3 and F4 (3 pieces)
See fuse tables for part numbers
6)
Contactor Relay Coil (230 V AC). N/C and N/O Aux Contacts
7)
Circuit Breaker Shunt Trip Control Terminals (230 V AC or 230 V DC)
®
MG.20.P3.22 - VLT
is a registered Danfoss trademark
VLT AQUA High Power Instruction Manual
