3 How to Install
3

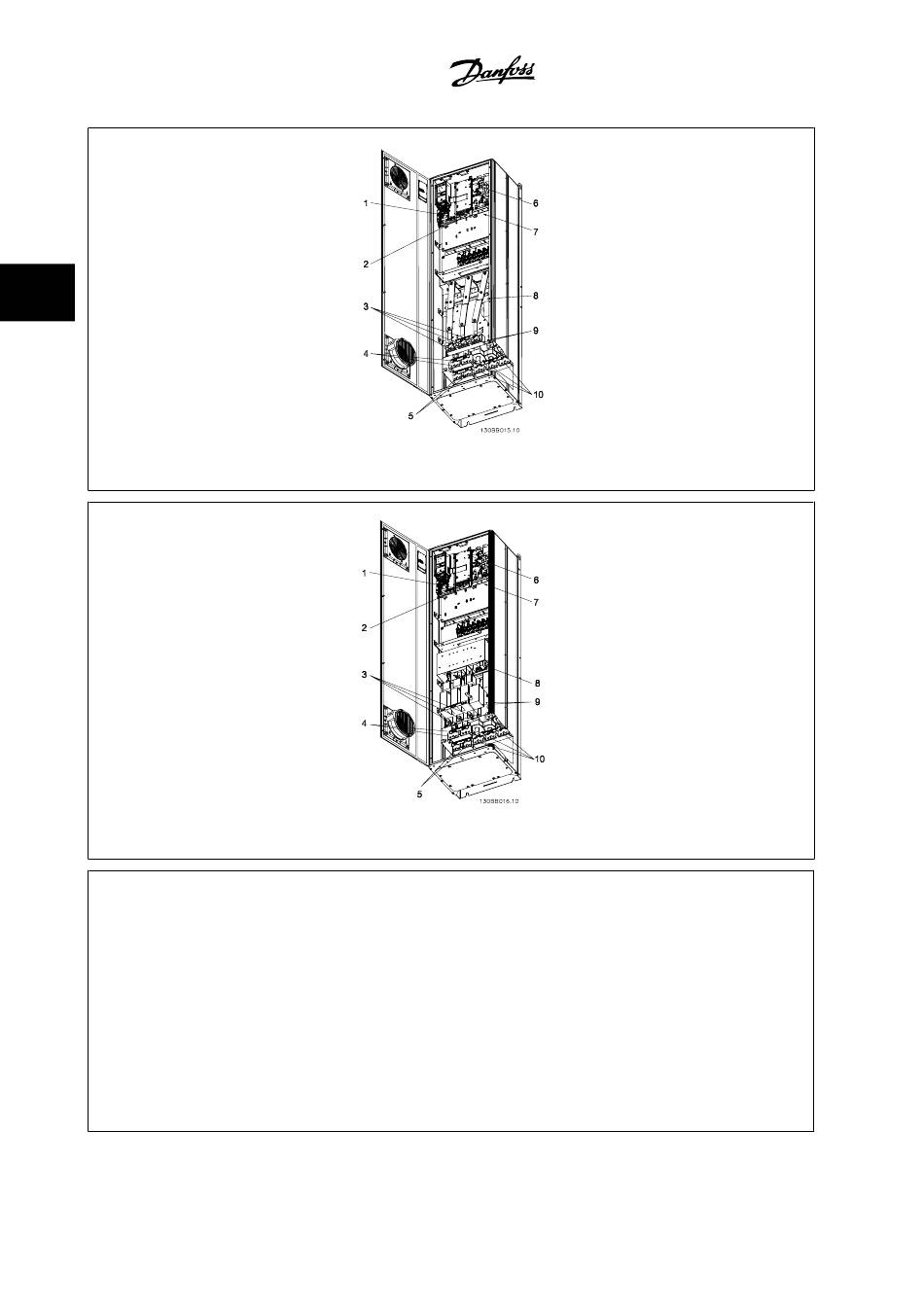

Figure 3.36: Compact IP 21 (NEMA 1) and IP 54 (NEMA 12), frame size D1
Figure 3.37: Compact IP 21 (NEMA 1) and IP 54 (NEMA 12) with disconnect, fuse and RFI filter, frame size D2
1) AUX Relay
01 02
04 05
2) Temp Switch
106 104 105
3) Line
R S T
91 92 93
L1 L2 L3
4) Load sharing
-DC +DC
88 89
3-44
03
06
MG.20.P3.22 - VLT
VLT AQUA High Power Instruction Manual
5) Brake
-R +R
81 82
6) SMPS Fuse (see fuse tables for part number)
7) AUX Fan
100 101 102 103
L1 L2 L1 L2
8) Fan Fuse (see fuse tables for part number)
9) Line power ground
10) Motor
U V W
96 97 98
T1 T2 T3
®
