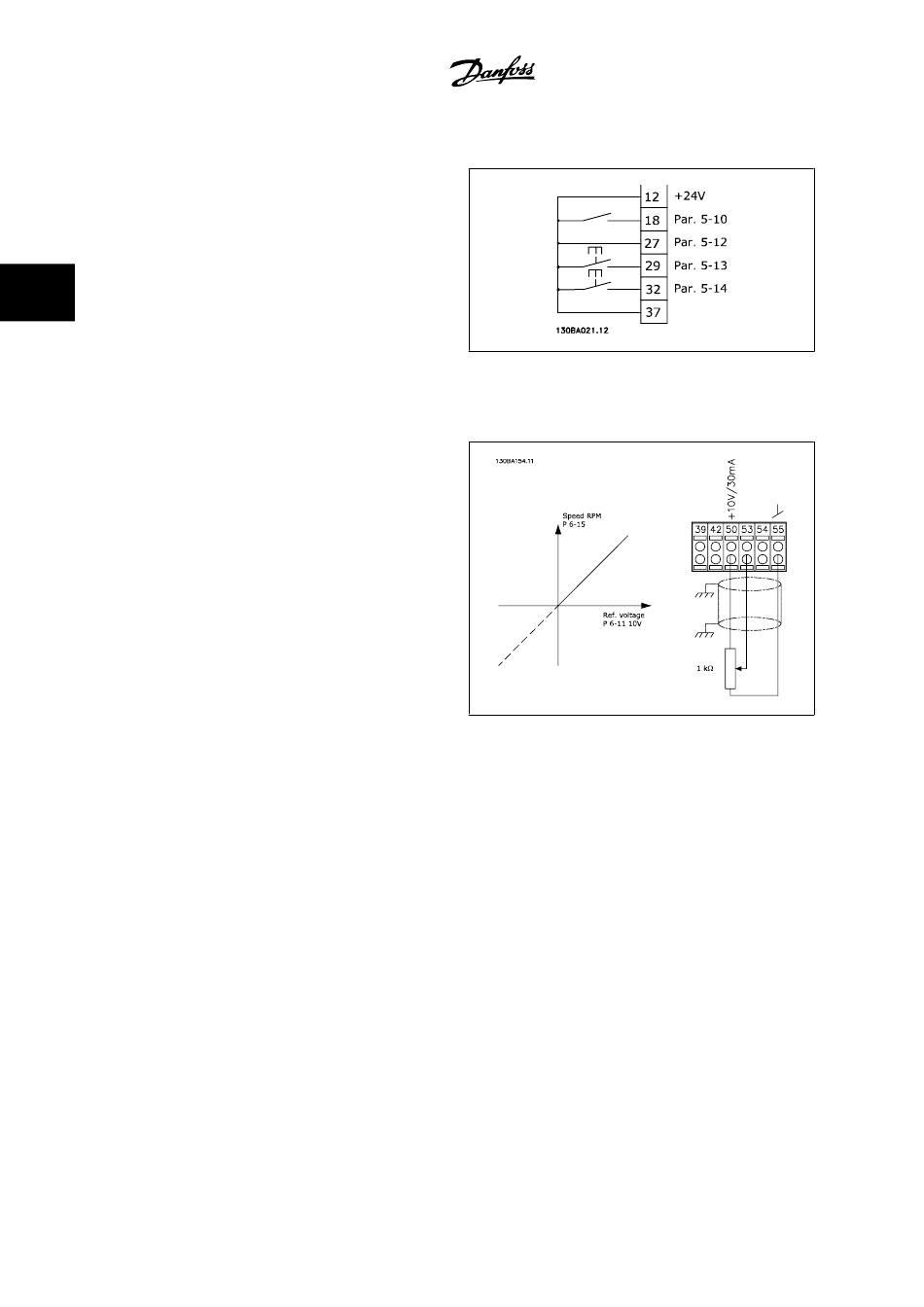

Danfoss VLT AQUA Instruction Manual page 82

3 How to Install
3.7.3 Speed Up/Down
Terminals 29/32 = Speed up/down:
Terminal 18 = par. 5-10
fault)
Terminal 27 = par. 5-12
ence [19]
3
Terminal 29 = par. 5-13
Terminal 32 = par. 5-14
Note: Terminal 29 only in FC x02 (x=series type).
3.7.4 Potentiometer Reference
Voltage reference via a potentiometer:
Reference Source 1 = [1]
Terminal 53, Low Voltage = 0 Volt
Terminal 53, High Voltage = 10 Volt
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1,500 RPM
Switch S201 = OFF (U)
3-68
Terminal 18 Digital Input
Start [9] (de-
Terminal 27 Digital Input Freeze refer-
Terminal 29 Digital Input Speed up [21]
Terminal 32 Digital Input
Slow [22]
Analog input 53
(default)
