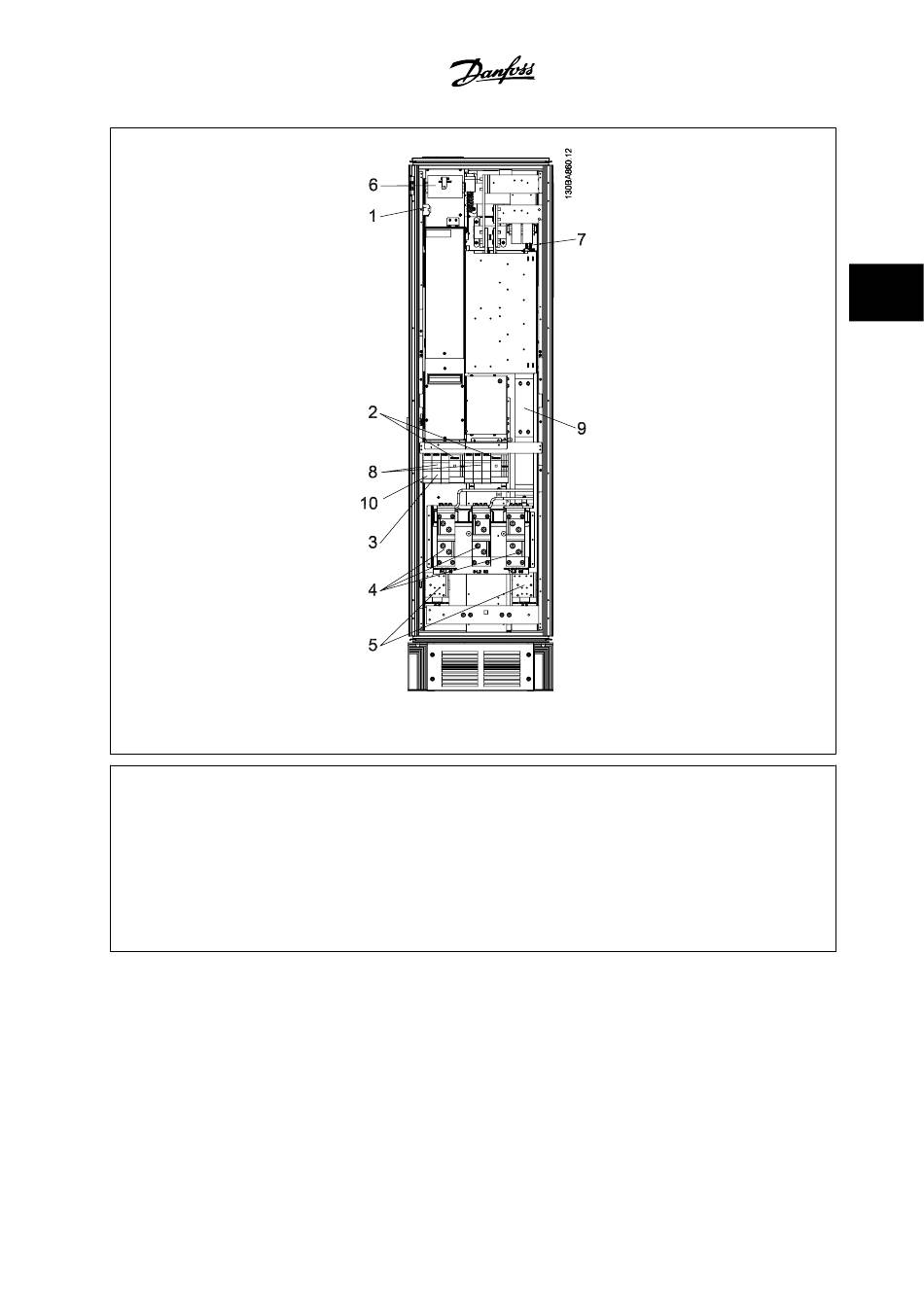

Figure 3.45: Rectifier Cabinet, frame size F1, F2, F3 and F4
1) 24 V DC, 5 A
T1 Output Taps
Temp Switch
106 104 105
2) Manual Motor Starters
3) 30 A Fuse Protected Power Terminals
4) Line
R S T
L1 L2 L3
5) Loadsharing
-DC +DC
88 89
6) Control Transformer Fuses (2 or 4 pieces). See fuse tables for part numbers
7) SMPS Fuse. See fuse tables for part numbers
8) Manual Motor Controller fuses (3 or 6 pieces). See fuse tables for part numbers
9) Line Fuses, F1 and F2 frame (3 pieces). See fuse tables for part numbers
10) 30 Amp Fuse Protected Power fuses
®
