3 How to Install
3.6.20 Control cable routing
Tie down all control wires to the designated control cable routing as
shown in the picture. Remember to connect the shields in a proper way
to ensure optimum electrical immunity.
Serial communication bus connection
Connections are made to the relevant options on the control card. For
3
details, see the relevant serial communication bus instruction. The cable
must be placed to the left inside the adjustable frequency drive and tied
down together with other control wires (see picture).
3-64

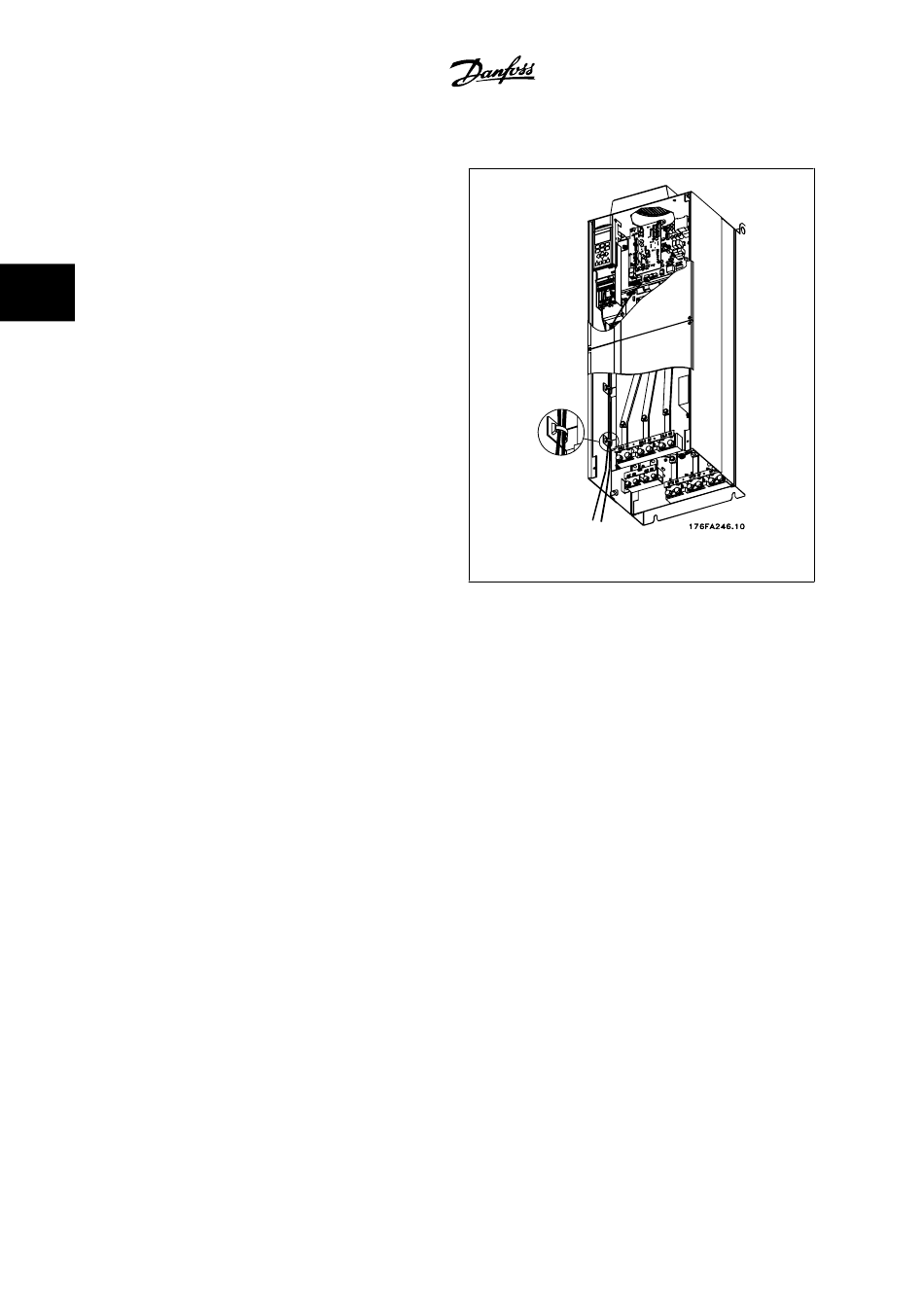

Figure 3.51: Wire path for control wiring.
®
MG.20.P3.22 - VLT
is a registered Danfoss trademark
VLT AQUA High Power Instruction Manual
