can be used with an adjustable frequency drive unit. The factory setting is for clockwise rotation with the adjustable frequency drive output connected

as follows:

Terminal No.

96, 97, 98, 99

• Terminal U/T1/96 connected to U-phase

• Terminal V/T2/97 connected to V-phase

• Terminal W/T3/98 connected to W-phase

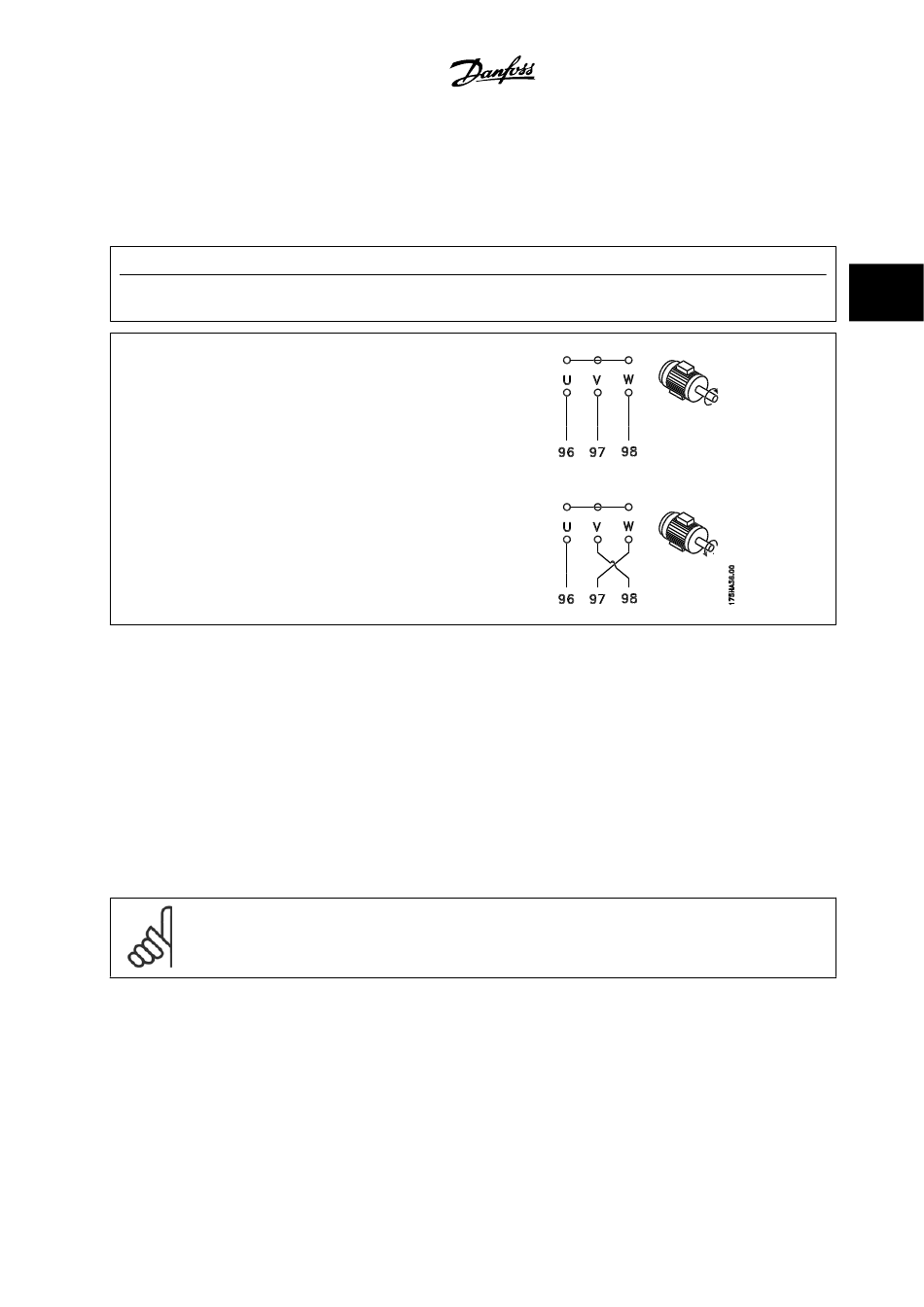

The direction of rotation can be changed by switching two phases in the motor cable or by changing the setting of par. 4-10

Motor rotation check can be performed using par. 1-28

F frame Requirements

F1/F3 requirements: Motor phase cable quantities must be 2, 4, 6, or 8 (multiples of 2, 1 cable is not allowed) to obtain equal amount of wires attached

to both inverter module terminals. The cables are required to be equal length within 10% between the inverter module terminals and the first common

point of a phase. The recommended common point is the motor terminals.

F2/F4 requirements: Motor phase cable quantities must be 3, 6, 9, or 12 (multiples of 3, 2 cables are not allowed) to obtain equal amount of wires

attached to each inverter module terminal. The wires are required to be equal length within 10% between the inverter module terminals and the first

common point of a phase. The recommended common point is the motor terminals.

Output junction box requirements: The length, minimum 8 ft [2.5 m], and quantity of cables must be equal from each inverter module to the common

terminal in the junction box.

NOTE!

If a retrofit application requires unequal amount of wires per phase, please consult the factory for requirements.

Function

Line power U/T1, V/T2, W/T3

Ground
