Load sharing
Load sharing is a feature on standard frequency converters,
but is not available on the LHD unit.

4.10 Final Set-up and Test

Before operating the frequency converter, perform a final
test of the installation:
1. Locate the motor name plate to find out whether
the motor is star- (Y) or delta- connected (Δ).
2. Enter the motor name plate data in the
parameter list. Access the list by pressing the
[Quick Menu] key and selecting Q2 Quick Set-up.
See Table 4.13.
1. Motor Power [kW]
or Motor Power [HP]
2. Motor Voltage
3. Motor Frequency
4. Motor Current
5. Motor Nominal Speed
Table 4.13 Quick Set-up Parameters
MG21B202
Operating Instructions
1-20 Motor Power [kW]
1-21 Motor Power [HP]
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal
Speed
Danfoss A/S © Rev. 2014-01-22 All rights reserved.
BAUER D-7 3734 ESLINGEN
3~ MOTOR NR. 1827421 2003
S/E005A9
1,5 KW
n 31,5 /min. 400
n 1400 /min.
COS  0,80
1,7L
B IP 65 H1/1A

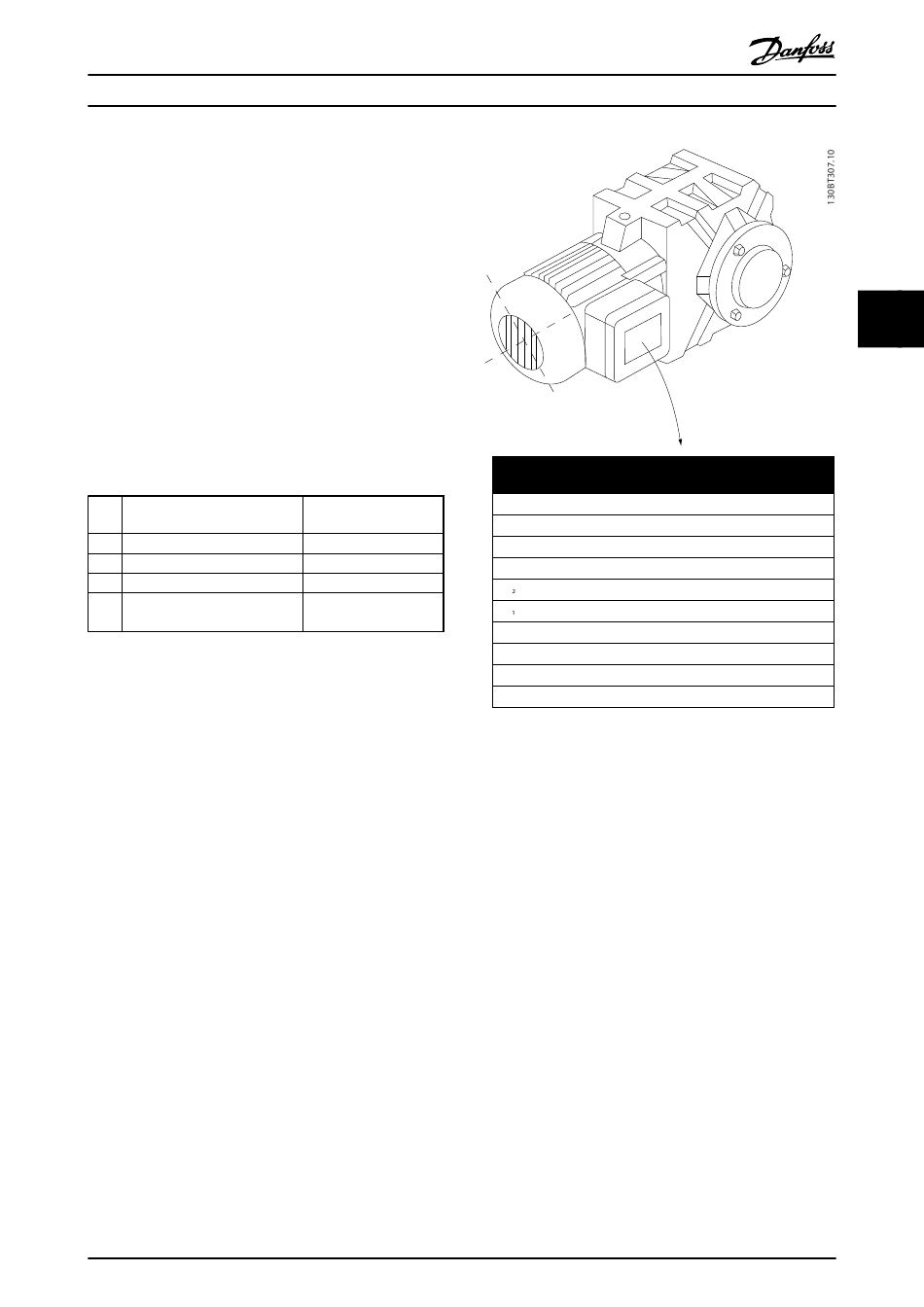

Illustration 4.19 Motor Name Plate
3. Perform an Automatic Motor Adaptation (AMA) to
ensure optimum performance.
3a Connect terminal 27 to terminal 12 or
set 5-12 Terminal 27 Digital Input to [0]
No operation.
3b Activate the AMA 1-29 Automatic Motor
Adaptation (AMA).
3c Select either complete or reduced AMA.
If an LC filter is mounted, run only the
reduced AMA, or remove the LC filter
during the AMA procedure.
3d Press [OK]. The display shows "Press
[Hand On] to start."
3e Press [Hand On]. A progress bar
indicates whether the AMA is in
progress.
3f Press [Off] - the frequency converter
enters into alarm mode and the display
shows that the user terminated AMA.
