3 How to Install
3

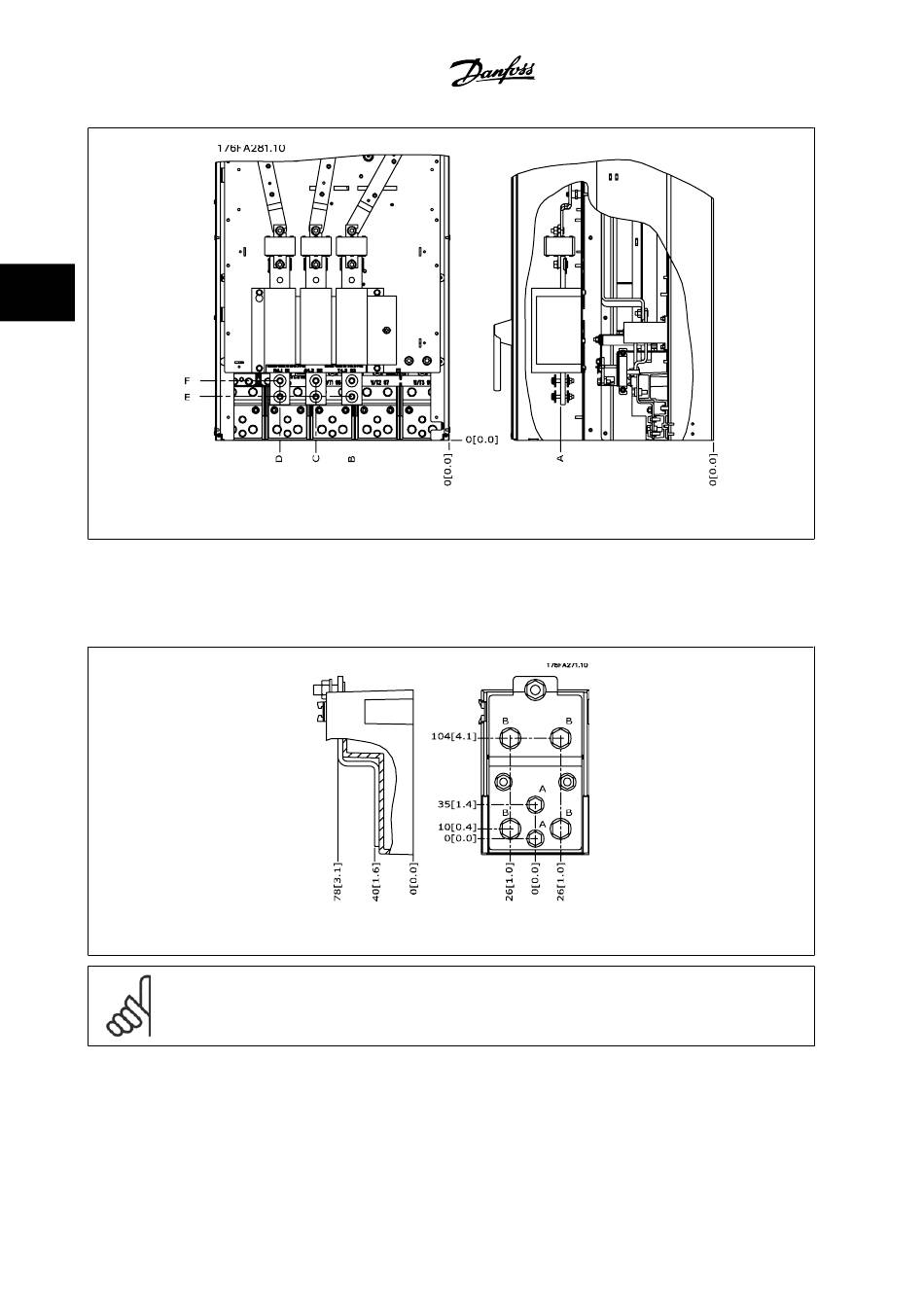

Figure 3.17: IP00 enclosure power connections positions of disconnect switch
Note that the power cables are heavy and difficult to bend. Give thought to the optimum position of the adjustable frequency drive for ensuring easy
installation of the cables.
Each terminal allows for the use of up to 4 cables with cable lugs or the use of standard box lug. Ground is connected to relevant termination point in
the drive.
Figure 3.18: Terminal in details
NOTE!
Power connections can be made to positions A or B
3-20
®
MG.20.P3.22 - VLT
is a registered Danfoss trademark
VLT AQUA High Power Instruction Manual
