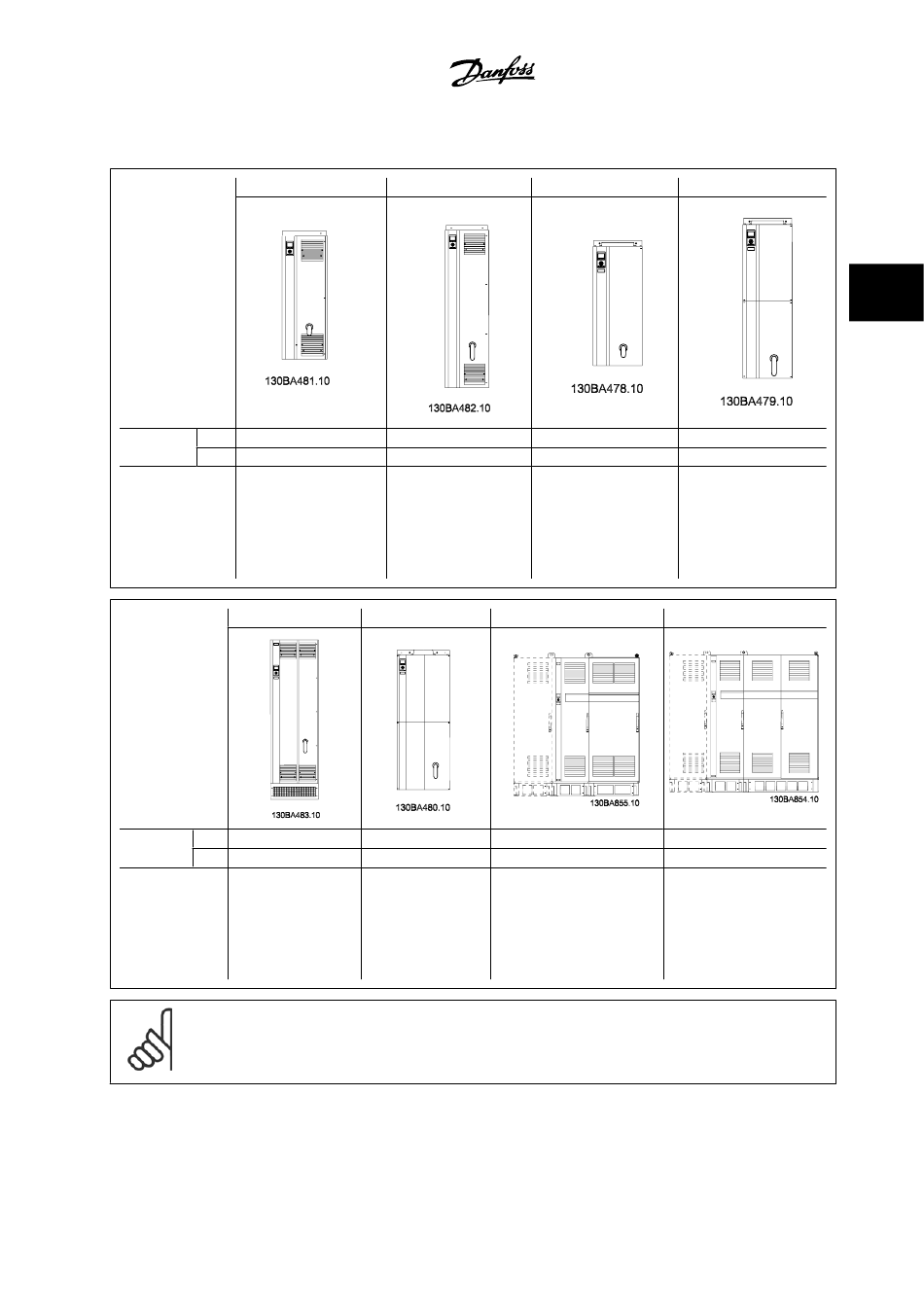

3.2.6 Rated Power
Frame size
Enclosure IP
protection
NEMA Type 1/ Type 12
110 - 132 kW at 400 V
Normal overload (380 - 480 V)
rated power - 110% 60–250 HP [45–160 kW] at
overload torque
Frame size
Enclosure IP
protection NEMA Type 1/ Type 12
450–600 HP [315–450 kW]
Normal overload at 400 V
rated power - (380–480 V)
110% overload 600–850 HP [450–630 kW]
torque at 690 V
(525–690 V)
NOTE!
The F frames have four different sizes, F1, F2, F3 and F4 The F1 and F2 consist of an inverter cabinet on the right and rectifier cabinet
on the left. The F3 and F4 have an additional options cabinet left of the rectifier cabinet. The F3 is an F1 with an additional options
cabinet. The F4 is an F2 with an additional options cabinet.
D1 D2
21/54 21/54
Type 1/ Type 12
200–350 HP [150–250 kW] at
400 V
(380–480 V)
300–550 HP [200–400 kW] at
690 V
690 V
(525–690 V)
(525–690 V)
E1 E2
21/54 00
Chassis
450–600 HP [315–450
kW] at 400 V
(380–480 V)
600–850 HP [450–630
kW] at 690 V
(525–690 V)
®
MG.20.P3.22 - VLT is a registered Danfoss trademark
D3
00
Chassis
150–175 HP [110–132 kW] at
400 V
(380–480 V)
60–250 HP [45–160 kW] at
690 V
(525–690 V)
F1/F3
21/54
Type 1/ Type 12
675–950 HP [500–710 kW] at 400 1075–1350 HP [800–1000 kW] at
V
(380–480 V)
950–1200 HP [710–900 kW] at 690 1350–1600 HP [1000–1200 kW]
V
(525–690 V)
3 How to Install
D4
00
Chassis
175–350 HP [150–250 kW] at
400 V
(380–480 V)
300–550 HP [200–400 kW] at
690 V
(525–690 V)
F2/F4
21/54
Type 1/ Type 12
400 V
(380–480 V)
at 690 V
(525–690 V)
3-13
