3 How to Install
Terminal locations - frame size F2 and F4
3

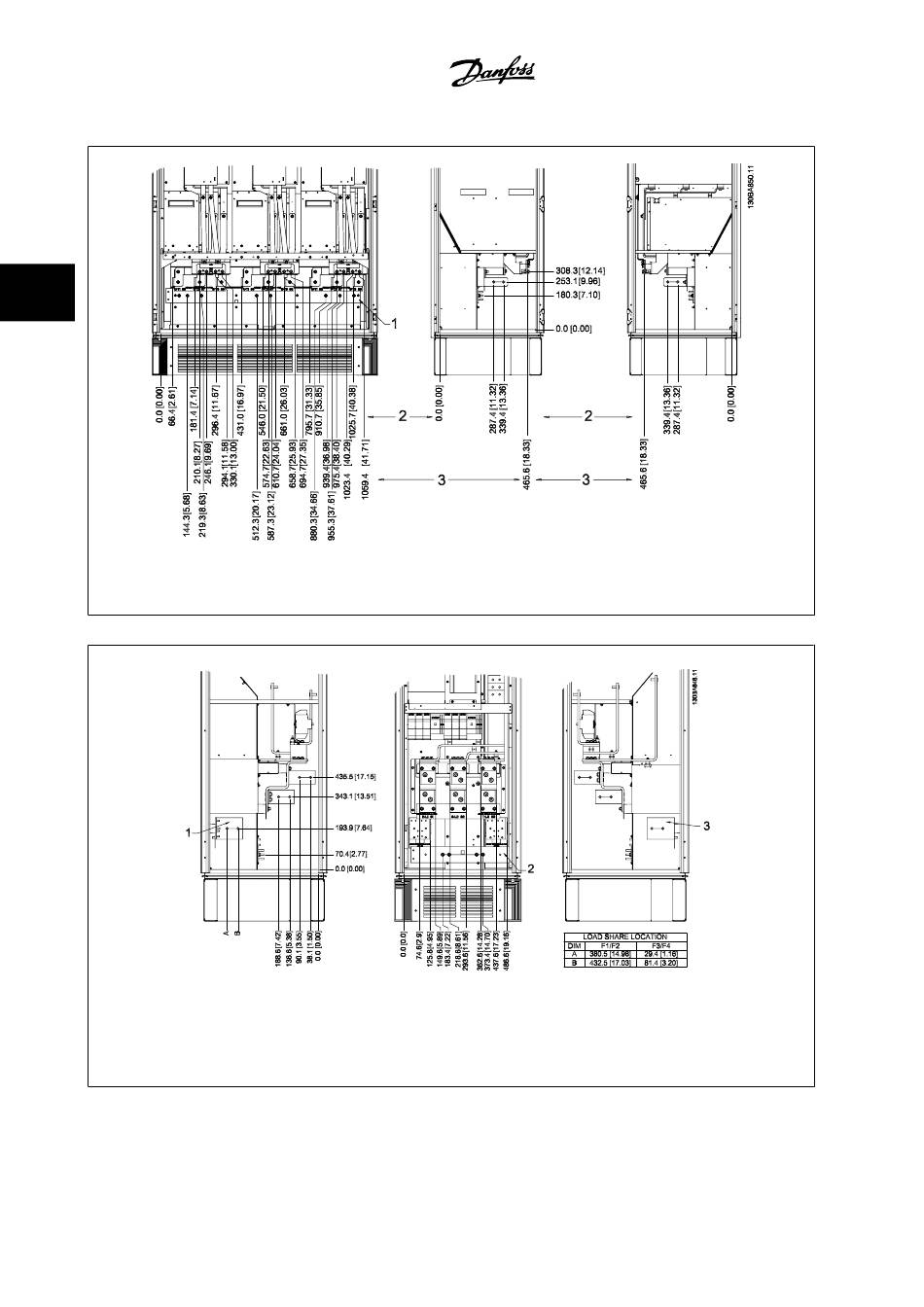

Figure 3.20: Terminal locations - Inverter Cabinet - F2 and F4 (front, left and right side view)
1) Earth ground bar
Terminal locations - Rectifier (F1, F2, F3 and F4)
Figure 3.21: Terminal locations - Rectifier (Left side, front and right side view)
1) Load Share Terminal (-)
2) Earth ground bar
3) Load Share Terminal (+)
3-22
®
MG.20.P3.22 - VLT
is a registered Danfoss trademark
VLT AQUA High Power Instruction Manual
