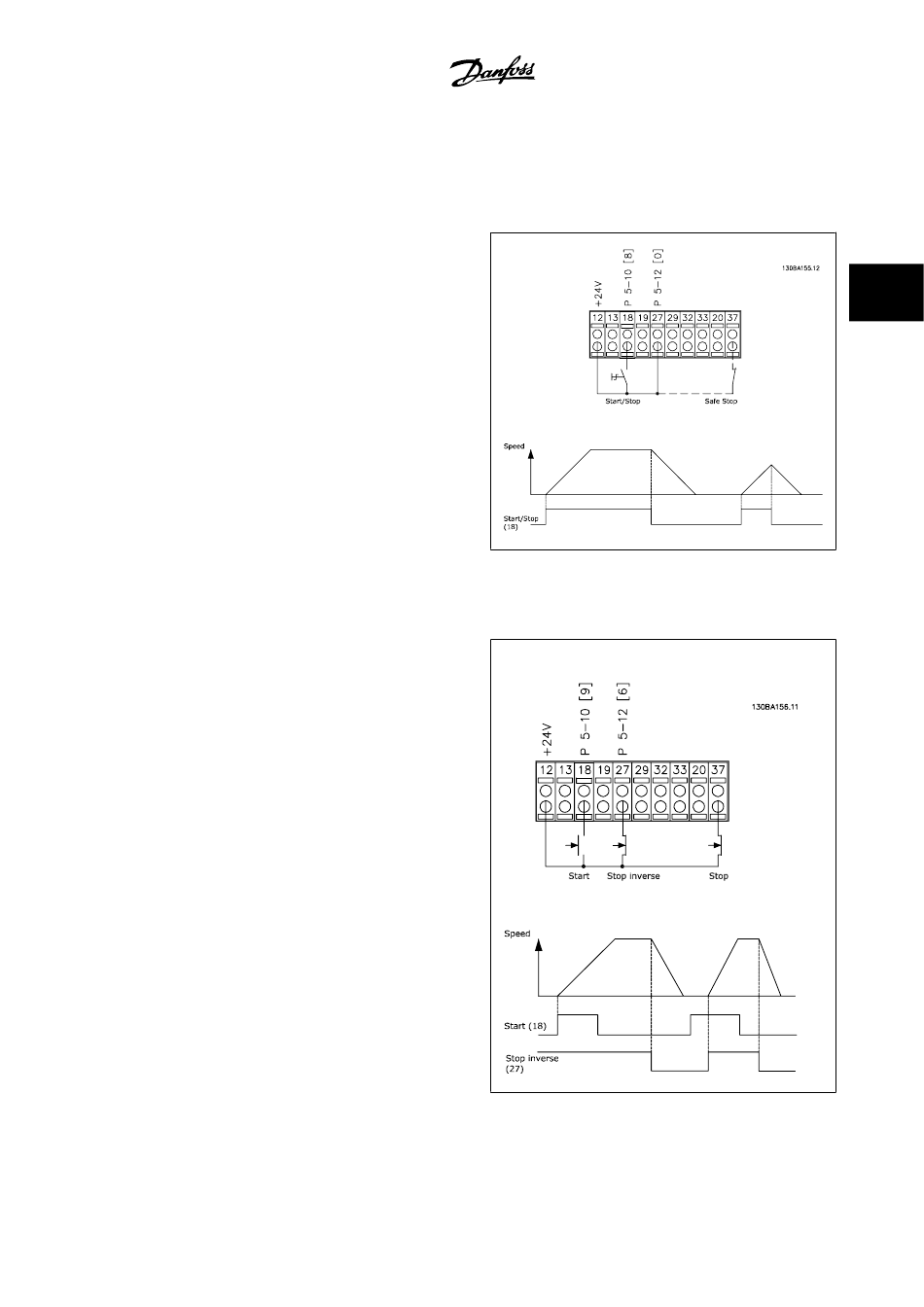

3.7 Connection Examples

3.7.1 Start/Stop

Start
Terminal 18 = Par. 5-10 [8]
No operation
Terminal 27 = Par. 5-12 [0]
Terminal 37 = Safe stop

3.7.2 Pulse Start/Stop

Latched start
Terminal 18 = Par. 5-10 [9]
Stop inverse
Terminal 27= Par. 5-12 [6]
Terminal 37 = Safe stop
coast inverse
(Default )
