I Control cable routing

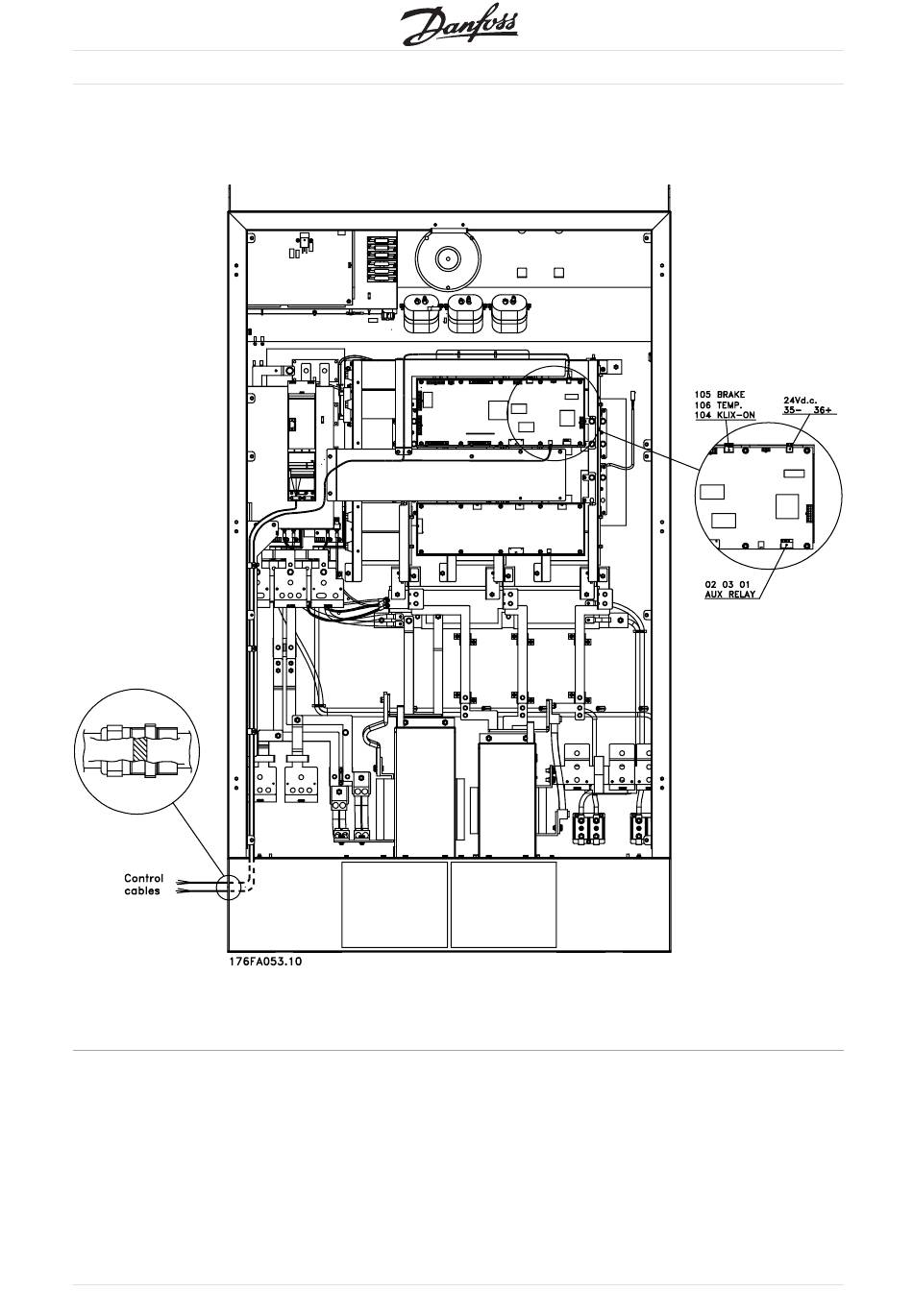

The drawing below shows how to route your control
cable in the VLT frequency converter.
Terminals 104-106 are not available in VLT 6000
and VLT 8000 AQUA series.
MG.56.A2.02 - VLT is a registered Danfoss trademark
