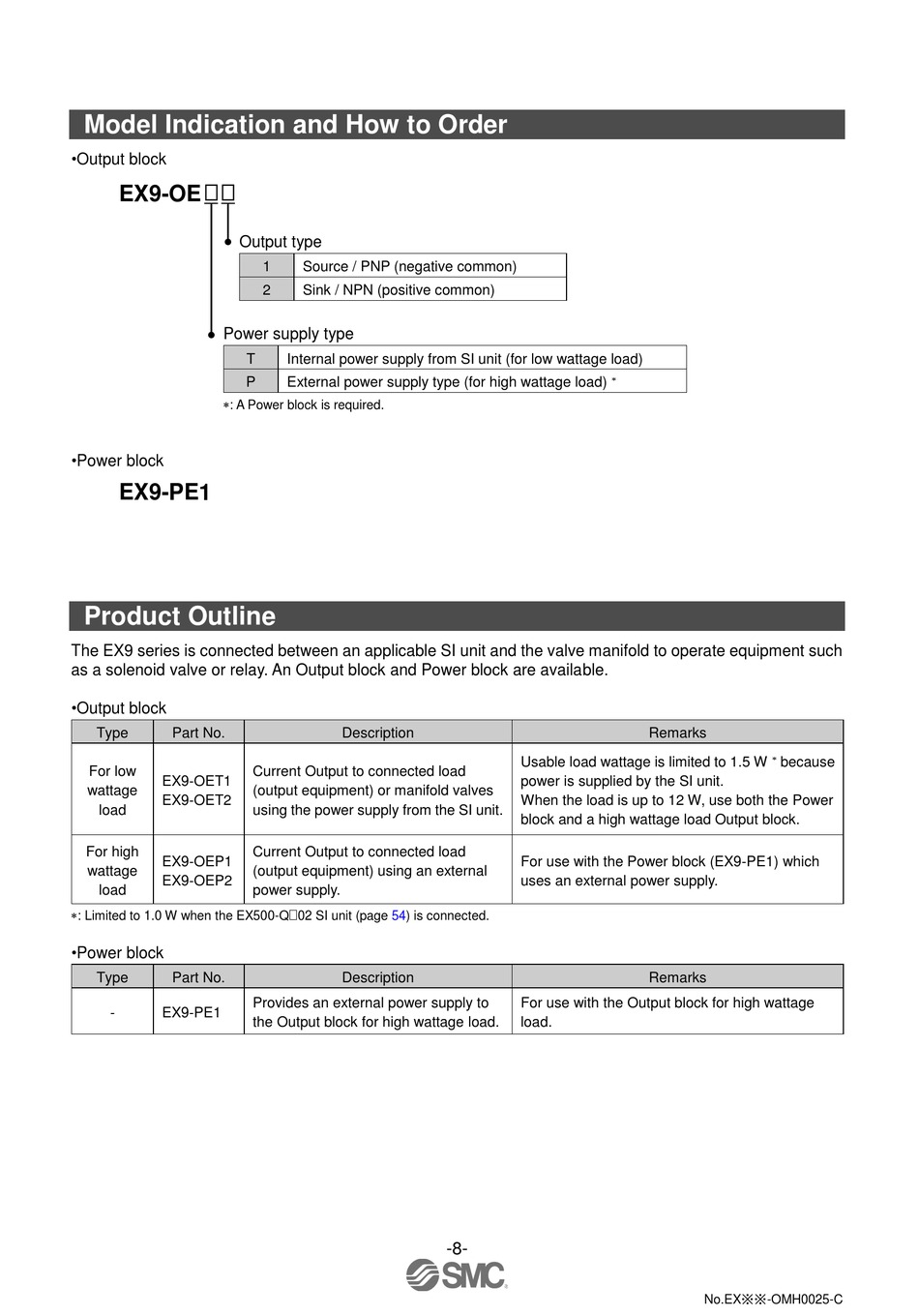

Model Indication and How to Order

•Output block
EX9-OE
Output type
Power supply type
: A Power block is required.
•Power block
EX9-PE1

Product Outline

The EX9 series is connected between an applicable SI unit and the valve manifold to operate equipment such
as a solenoid valve or relay. An Output block and Power block are available.
•Output block
Type Part No.
For low
EX9-OET1
wattage
EX9-OET2
load
For high
EX9-OEP1
wattage
EX9-OEP2
load
: Limited to 1.0 W when the EX500-Q 02 SI unit (page 54) is connected.
•Power block
Type Part No.
- EX9-PE1
1 Source / PNP (negative common)
2 Sink / NPN (positive common)
T Internal power supply from SI unit (for low wattage load)
P External power supply type (for high wattage load)
Description
Current Output to connected load
(output equipment) or manifold valves
using the power supply from the SI unit.
Current Output to connected load
(output equipment) using an external
power supply.
Description
Provides an external power supply to
the Output block for high wattage load.

Usable load wattage is limited to 1.5 W
power is supplied by the SI unit.
When the load is up to 12 W, use both the Power
block and a high wattage load Output block.
For use with the Power block (EX9-PE1) which
uses an external power supply.
For use with the Output block for high wattage
load.
-8-
Remarks

because
Remarks
No.EX※※-OMH0025-C
