User Manual
INTERNAL SIREN WARNING

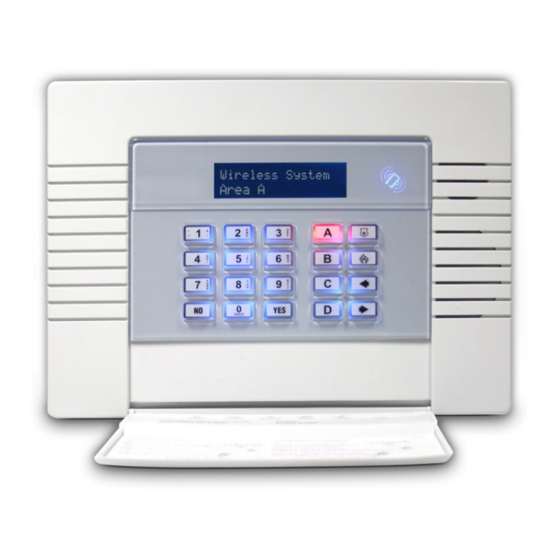

The Enforcer 32-WE control panel
contains a 100dBA siren, please be
aware of this when in use
Software Revision >V10
RINS1705-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enforcer 32-WE and is the answer not in the manual?

Questions and answers

Related Manuals for Pyronix Enforcer 32-WE

Summary of Contents for Pyronix Enforcer 32-WE

  • Page 1 User Manual INTERNAL SIREN WARNING The Enforcer 32-WE control panel contains a 100dBA siren, please be aware of this when in use Software Revision >V10 RINS1705-1...

  • Page 2: Table Of Contents

    Contents Page A. Introduction ......................................................3 B. Operating the Enforcer 32-WE ................................................. 5 C. Using the Keyfob ....................................................6 D. Arming the Enforcer ....................................................7 E. Disarming the Enforcer................................................... 8 F. Arming / Disarming the Tag Reader ................................................. 9 G. Open Doors / Arm and Disarm (Entry Control) ............................................9 H.

  • Page 3: Introduction

    User Automation Outputs The Enforcer 32-WE includes user automation outputs that give you the option to operate up to 20 devices such as gates, lights, sprinklers, etc. via your keypad or remotely via your Keyfob, extending the use of your security system.
  • Page 4 Pyronix Cloud and Home Control+ App DOWNLOAD The Pyronix+ App enables you to use your smartphone as a remote keypad. ANDROID The App allows you to: - Arm / Disarm your system DOWNLOAD - Activate the automation outputs to remotely control lights, gates etc.

  • Page 5: Operating The Enforcer 32-We

    B. Operating the Enforcer 32-WE Default Master Manager Code: 1234 Arming/Disarming Methods: There are four different devices that may be used in the process of arming/disarming the alarm system; these are the keypad, tag reader, keyfob and mobile (Android or iOS) device –using the app.

  • Page 6: Using The Keyfob

    C. Using the Keyfob The wireless keyfob has four buttons that may be programmed for specific functions: no action, show status, arm area, disarm area, latch output, timed output and PA alarm activation Locking the Keyfob All four buttons on the keyfob may be ‘locked’ to prevent a user from accidentally pressing them.

  • Page 7: Arming The Enforcer

    D. Arming the Enforcer E n t e r Y o u r C o d e A r m A r e a s P l e a s e W a i t E n f o r c e r 3 2 W E A r m i n g [ 0 2 9 ] User...

  • Page 8: Disarming The Enforcer

    E. Disarming the Enforcer E n t e r Y o u r C o d e D i s a r m A r e a s E n f o r c e r 3 2 W E E n f o r c e r 3 2 W E User [ * * * * * * ]...

  • Page 9: Arming / Disarming The Tag Reader

    F. Arming / Disarming the Tag Reader If you have a tag reader installed, then it will be possible to arm and disarm the alarm system using a tag. Disarmed Armed NOTE: If the Enforcer has failed to set, a fault will be displayed on the internal tag reader or a fail to set sound will activate on the external tag reader buzzer G.

  • Page 10: Sms Commands

    H. SMS Commands If you have purchased the GPRS version of Enforcer, it will allow you to send SMS commands via a mobile phone, allowing you to arm/disarm the panel remotely along with several other commands (see below the different SMS commands available). NOTE: Any text message command to the Enforcer will need to start with a valid user code.
  • Page 11 Checking the System Status via SMS text command Example SMS command send: Description: Example SMS command response: 123456 Status 123456 = User Code. Status Area A Disarmed No Faults Area B Disarmed No Faults Area C Disarmed No Faults Area D Disarmed No Faults Operating the User Automation Outputs via SMS text commands Example SMS command send: Description:...

  • Page 12: Pyronix Cloud

    3) Make a note of the System ID. Press t. (TO USE IN STEP 1 OF CLOUD SETUP ON P13) 4) Enter a secure password (max characters =16) for the Pyronix Cloud, Press t. (TO USE IN STEP 1 OF CLOUD SETUP ON P13) 5) Press 0 to set Security to 'Standard'.

  • Page 13: Setting Up The Pyronix Cloud

    Log on to www.pyronixcloud.com and create an account. A confirmation email will be sent to the registered email address. Once the link on the email is clicked, you are now set up on the Pyronix Cloud. 1) Enter the System ID and Cloud Password that was set up on the Enforcer and click 'Submit'.

  • Page 14: Setting Up The Pyronix App

    Setting Up The Pyronix App Download the Pyronix App from the Google Play or Apple App stores and install to your mobile phone. 1) Click on 'My Security' 2) Click '+' 3) Enter the System ID and App 4) Enable and disable the relevant...
  • Page 15 NOTE: All new mobile devices, when 5) To communicate with the 6) Select the action to perform e.g. 7) To disconnect, click 'Disconnect first connected, will be disabled by Enforcer panel, click on the arming/disarming an area, triggering Home'. System Name and enter a valid an output or inhibiting an input.

  • Page 16: Chime Feature

    J. Chime Feature K. Personal Attack from Keypad L. Fire Alarm From Keypad The chime feature can be used on door contacts If a PA alarm is needed, press and hold both the If a fire alarm is needed, press and hold f for 3 to enable a ‘chime’...

  • Page 17: Master Manager Menu Options

    *Date & Time Programs the date and time and enables the summer-time automatic adjustment. *Learn User Codes, Programs the user codes, tags and learns keyfobs to the Enforcer 32-WE. Keyfobs and Tags Review Log The ‘Review Logs’ function is used to view all operational information of the alarm system, such as arming/disarming information, access control and alarm activations etc.

  • Page 18: Entering The Master Manager Menu

    N. Entering the Master Manager Menu E n t e r Y o u r C o d e B Y P A S S I N P U T S ? E n f o r c e r 3 2 W E [ * * * * ] Default Master User Code: 1234 T i m e 0 2 : 5 3...

  • Page 19: Master Manager Menu: Date And Time

    3. Master Manager Menu: Date and Time* D A T E & T I M E ? Y e a r 0 0 - 9 9 M o n t h 1 - 1 2 D a y 1 - 3 1 H o u r s 0 - 2 3 M i n u t e s...

  • Page 20: Master Manager Menu: (Configure User Codes, Learn Tags And Keyfobs)

    4. Master Manager Menu: (Configure user codes, learn tags and keyfobs)* 4.1 Change Codes: Configure User Codes P r e s s C K e y t o D E L E T E c o d e L E A R N U S E R C O D E S U s e r C o d e s / T a g s / E m p t y [ 0 1 ]...

  • Page 21: Change Codes (Configure Proximity Tags)

    4.2 Change Codes (Configure proximity tags) P r e s s C K e y t o D E L E T E t a g U s e r T y p e U s e r C o d e s / T a g s / E m p t y [ 0 1 ] E n t e r U s e r C o d e...

  • Page 22: Change Codes (Learn/Configure Keyfobs)

    4.3 Change Codes (Learn/Configure Keyfobs) P r e s s a n d H o l d A N Y b u t t o n P r e s s C K e y t o f o r 5 s e c o n d s u n t i l L E D s f l a s h D E L E T E c o d e U s e r C o d e s / T a g s / E m p t y...

  • Page 23: Master Manager Menu: Review Logs

    5. Master Manager Menu: Review Logs R E V I E W L O G ? P a n e l L o g ? 0 1 / 0 1 0 0 : 1 1 : 4 4 R e p e a t f o r a l l S t a r t o f L o g A l a r m S i l e n c e d E v e n t s...

  • Page 24: Master Manager Menu: Set Up App

    6. Master Manager Menu: Set Up App 6.1 Master Manager Menu: Set Up App (Standard Security) E n a b l e A p p S y s t e m I D C l o u d P a s s w o r d : S e c u r i t y S E T U P A P P ? [ 0 ]...

  • Page 25: Master Manager Menu: Set Up App (High Security)

    6.2 Master Manager Menu: Set Up App (High Security) S e c u r i t y S E T U P A P P ? E n a b l e A p p S y s t e m I D : C l o u d P a s s w o r d : H i g h [ 1 ]...

  • Page 26: Sms Phonebook

    7. SMS Phonebook S M S P H O N E B O O K ? S M S N u m b e r U s e r M o b i l e : [ 0 1 ] SMS Number [00]-[10] W A L K T E S T ?

  • Page 27: Master Manager Menu: Pc Connect Menu

    10. Master Manager Menu: PC Connect Menu P C C O N N E C T M E N U ? S e l e c t P C t o S e l e c t O p e r a t i o n C a l l i n g R e m o t e P C d i a l [ 1 ]...

  • Page 28: Master Manager Menu: Block Remote Arm

    12. Master Manager Menu: Block Remote Arm B L O C K R E M O T E B l o c k R e m o t e A r m This function will block any attempt made to arm and A R M I N G ? [ 0 ] disarm the UDL software if enabled.

  • Page 29: Master Manager Menu: System Sounds Demo

    14. Master Manager Menu: System Sounds Demo S Y S T E M D E M O S o u n d s D e m o S o u n d D e m o O p t i o n s : S O U N D S ? N o S o u n d [ 0 0 ]...

  • Page 30: Engineer Contacts And Table

    O. Engineer Contacts and Table Alarm Company Date of Installation Site Reference Engineer Name Engineer Contact Number Installed to Grade 2 Yes / No Environmental Class Other Comments Page: 30...

  • Page 31: Input Tables

    P. Input Tables Wireless Inputs Input Name Input Areas Description Wired Inputs Input Name Input Areas Description 33 (I/O BOARD Z33) 34 (I/O BOARD Z34) (RIX 0) 36 (RIX 0) 37 (RIX 0) 38 (RIX 0) 39 (RIX 0) 40 (RIX 0) 41 (RIX 0) 42 (RIX 0) 43 (RIX 1)

  • Page 32: User Tables

    Q. User Tables Name Name Name User Code/Tag/ User Code/Tag/ User Code/Tag/ Keyfob Keyfob Keyfob Page: 32...

  • Page 33: Outputs

    R. Outputs Wired Outputs Latched / Timed Type Action (Onboard) STRB (Onboard) BELL (Onboard) PGM 1 (ROX Address 0) PGM 2 (ROX Address 0) PGM 3 (ROX Address 0) PGM 4 (ROX Address 0) PGM 5 (ROX Address 0) PGM 6 (ROX Address 0) PGM 7 (ROX Address 0) PGM 8 (ROX Address 0) PGM 9 (ROX Address 0)

  • Page 34: Product Information

    S. Product Information For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.

  • Page 35: Notes

    T. Notes Page: 35...
  • Page 36 EN50131-1:2006+A1:2009 EN50131-3:2009 EN50131-6:2008 EN50131-5-3:2005+A1:2008 Security Grade 2 Environmental Class II Secure Holdings Pyronix House Braithwell Way Hellaby Rotherham S66 8QY Website: www.pyronix.com...
