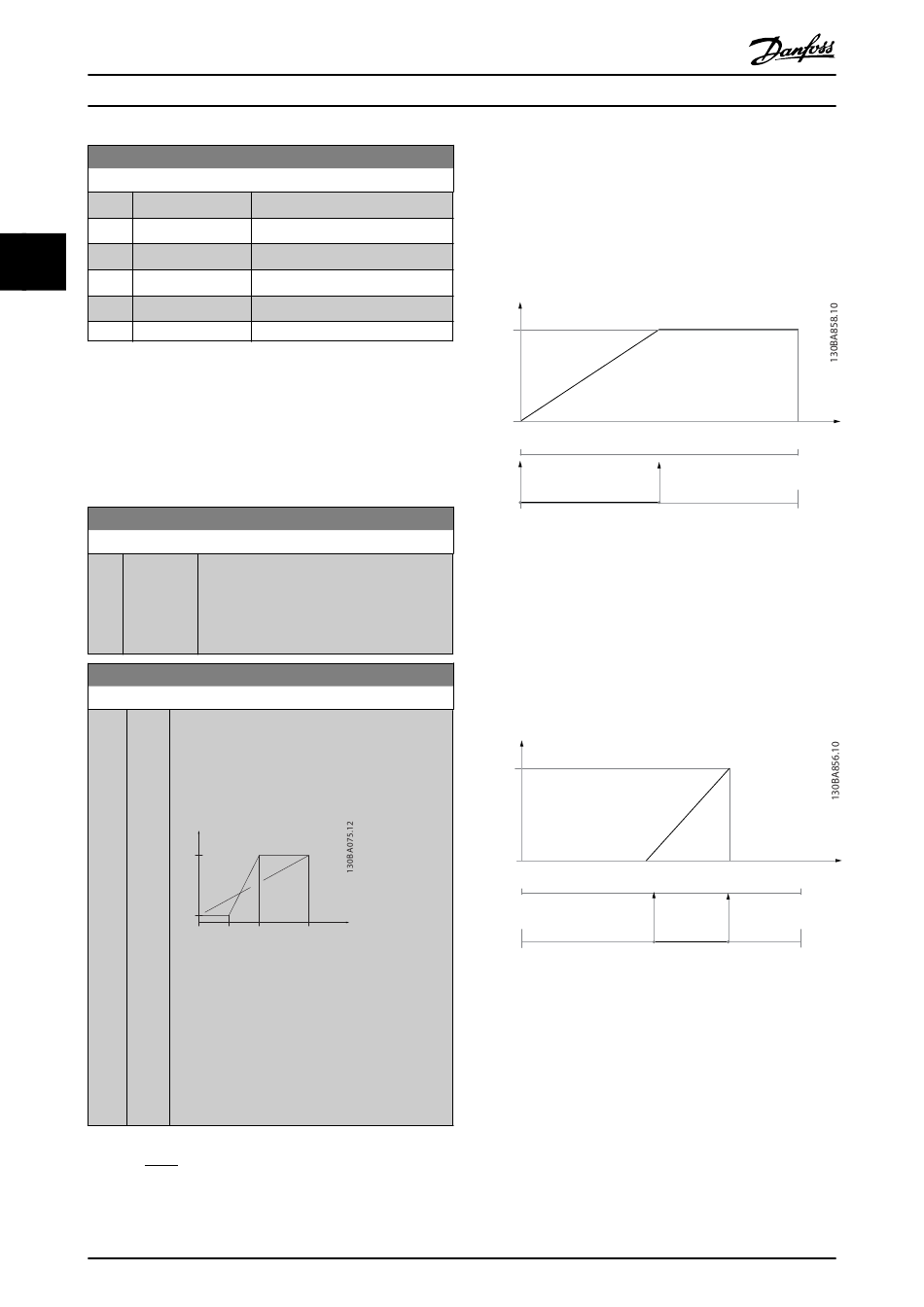

Parameter Description
6-50 Terminal 42 Output
Option:
[141] Bus ctrl t.o.
[142] Bus ctrl t.o. 4-20mA
3 3
[143] Ext. CL 1 4-20mA
[144] Ext. CL 2 4-20mA
[145] Ext. CL 3 4-20mA
[150] Max Out Fr 4-20 mA
NOTE
Values for setting the Minimum Reference is found in open
loop 3-02 Minimum Reference and for closed loop
20-13 Minimum Reference/Feedb. - values for maximum
reference for open loop is found in 3-03 Maximum
Reference and for closed loop 20-14 Maximum Reference/
Feedb..
6-51 Terminal 42 Output Min Scale
Range:
0 % [0 - 200
*
%]
6-52 Terminal 42 Output Max Scale
Range:
100 [0 -
% 200
*
%]
mA / desired maximum current × 100 %
20
mA
20
i . e . 10 mA :
10 mA
76
Function:
0-100%, (0-20 mA)
0-100%
0-100%
0-100%
0-100%
Function:
Scale for the minimum output (0 or 4 mA) of
the analog signal at terminal 42.
Set the value to be the percentage of the full
range of the variable selected in
6-50 Terminal 42 Output.
Function:
Scale for the maximum output (20mA) of the
analog signal at terminal 42.
Set the value to be the percentage of the full
range of the variable selected in 6-50 Terminal 42
Output.
Current
(mA)
20
0/4
0% Analogue Analogue Variable
100%
output Output for
Min Scale Max Scale output
par. 6-93 par. 6-94 example:
Speed
(RPM)
Illustration 3.27
It is possible to get a value lower than 20mA at
full scale by programming values >100% by using
a formula as follows:
× 100 % = 200 %
MG16H102 - VLT
®
VLT Refrigeration Drive Programming Guide
EXAMPLE 1:
Variable value= OUTPUT FREQUENCY, range = 0-100 Hz
Range needed for output = 0-50 Hz
Output signal 0 or 4mA is needed at 0 Hz (0% of range) -
set 6-51 Terminal 42 Output Min Scale to 0%
Output signal 20 mA is needed at 50 Hz (50% of range) -
set 6-52 Terminal 42 Output Max Scale to 50%
20 mA
0/4 mA
0%
0Hz
Illustration 3.28
EXAMPLE 2:
Variable= FEEDBACK, range= -200% to +200%
Range needed for output= 0-100%
Output signal 0 or 4 mA is needed at 0% (50% of range) -
set 6-51 Terminal 42 Output Min Scale to 50%
Output signal 20 mA is needed at 100% (75% of range) -
set 6-52 Terminal 42 Output Max Scale to 75%
20 mA
0/4 mA
0%
-200%
Illustration 3.29
EXAMPLE 3:
Variable value= REFERENCE, range= Min ref - Max ref
Range needed for output= Min ref (0%) - Max ref (100%),
0-10 mA
Output signal 0 or 4 mA is needed at Min ref - set
6-51 Terminal 42 Output Min Scale to 0%
Output signal 10 mA is needed at Max ref (100% of range)
- set 6-52 Terminal 42 Output Max Scale to 200%
(20 mA/10 mA x 100%=200%).
®
