How to Programme

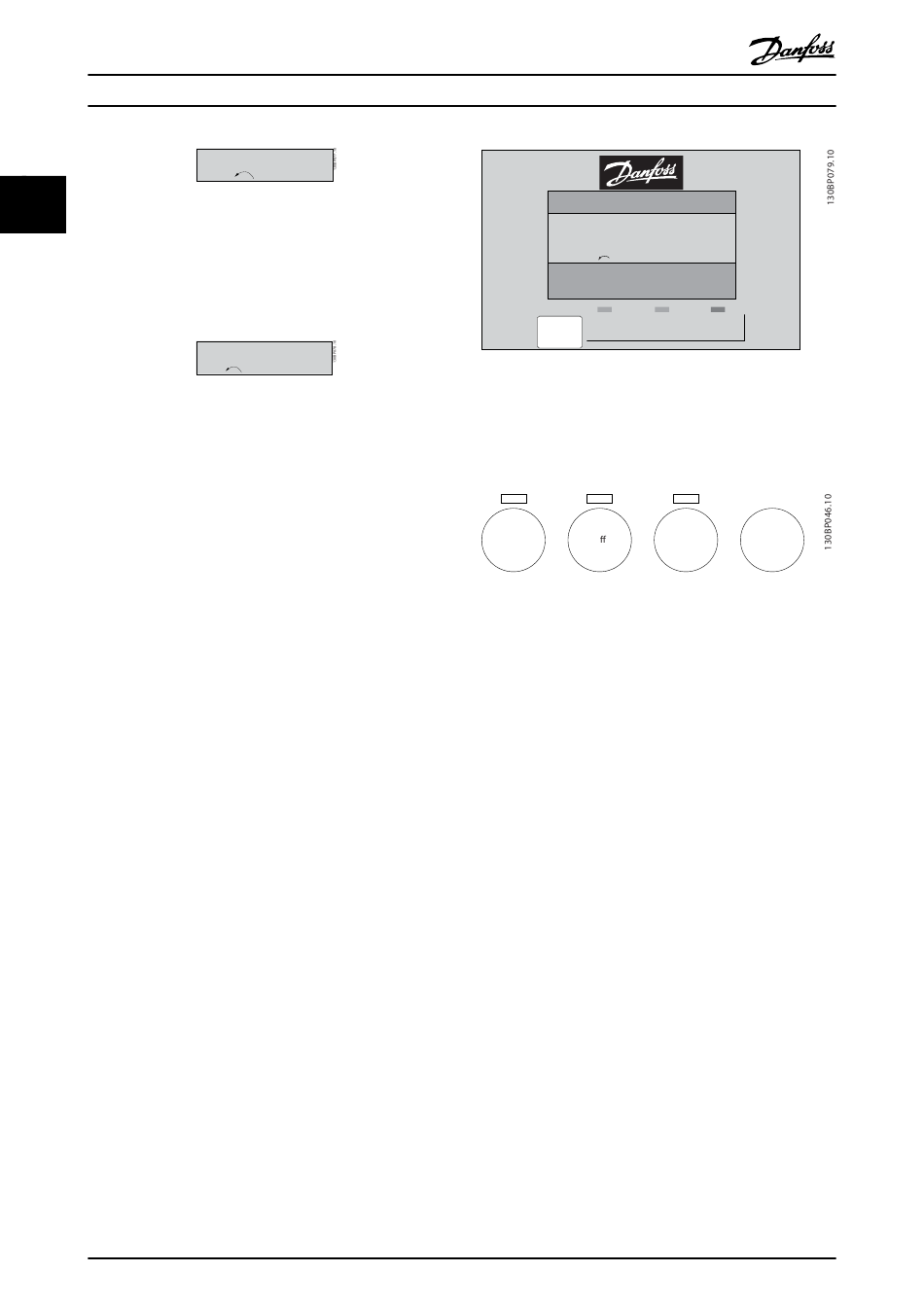

2 2 Illustration 2.14 Status Display Example
Indicator lights (LEDs):
•
Green LED/On: Indicates if control section is on.
•
Yellow LED/Wrn.: Indicates a warning.
•
Flashing red LED/Alarm: Indicates an alarm.
Illustration 2.15 Alarm Display Example
Menu key
[Menu] Select one of the following modes:
•
Status
•
Quick Setup
•
Main Menu
Main Menu is used for programming all parameters.
The parameters can be accessed immediately unless a
password has been created via 0-60 Main Menu Password,
0-61 Access to Main Menu w/o Password, 0-65 Personal Menu
Password or 0-66 Access to Personal Menu w/o Password.
Quick Setup is used to set up the frequency converter
using only the most essential parameters.
The parameter values can be changed using the up/down
arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of
times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array
number and press [OK]
Select the wanted data value and press [OK]
Navigation Keys [Back] for stepping backwards
▼ ▲
Arrow [ ] [ ] keys are used for manoeuvring between
parameter groups, parameters and within parameters.
[OK] is used for choosing a parameter marked by the
cursor and for enabling the change of a parameter.
16
®
VLT Refrigeration Drive Programming Guide
22.8
rpm
Setup 1
A 17
Setup 1
MG16H102 - VLT
P 2-03
Status
Menu
Illustration 2.16
Operation Keys
Keys for local control are found at the bottom of the
control panel.
Hand
O
on
Illustration 2.17 Operation keys of the numerical CP (NLCP)
[Hand On] enables control of the frequency converter via
the LCP. [Hand On] also starts the motor and it is now
possible to enter the motor speed data by means of the
arrow keys. The key can be selected as [1] Enable or[0]
Disable via 0-40 [Hand on] Key on LCP.
External stop signals activated by means of control signals
or a serial bus will override a 'start' command via the LCP.
The following control signals will still be active when
[Hand on] is activated:
•
[Hand On] - [Off] - [Auto On]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select lsb - Set-up select msb
•
Stop command from serial communication
•
Quick stop
•
DC brake
[Off] stops the connected motor. The key can be selected
as [1] Enable or [0] Disable via 0-41 [Off] Key on LCP.
If no external stop function is selected and the [Off] key is
inactive the motor can be stopped by disconnecting the
mains supply.
[Auto On] enables the frequency converter to be
controlled via the control terminals and/or serial communi-
®
is a registered Danfoss trademark
Setup 1
Quick Main
Setup Menu
Auto
Reset
on
