Parameter Description

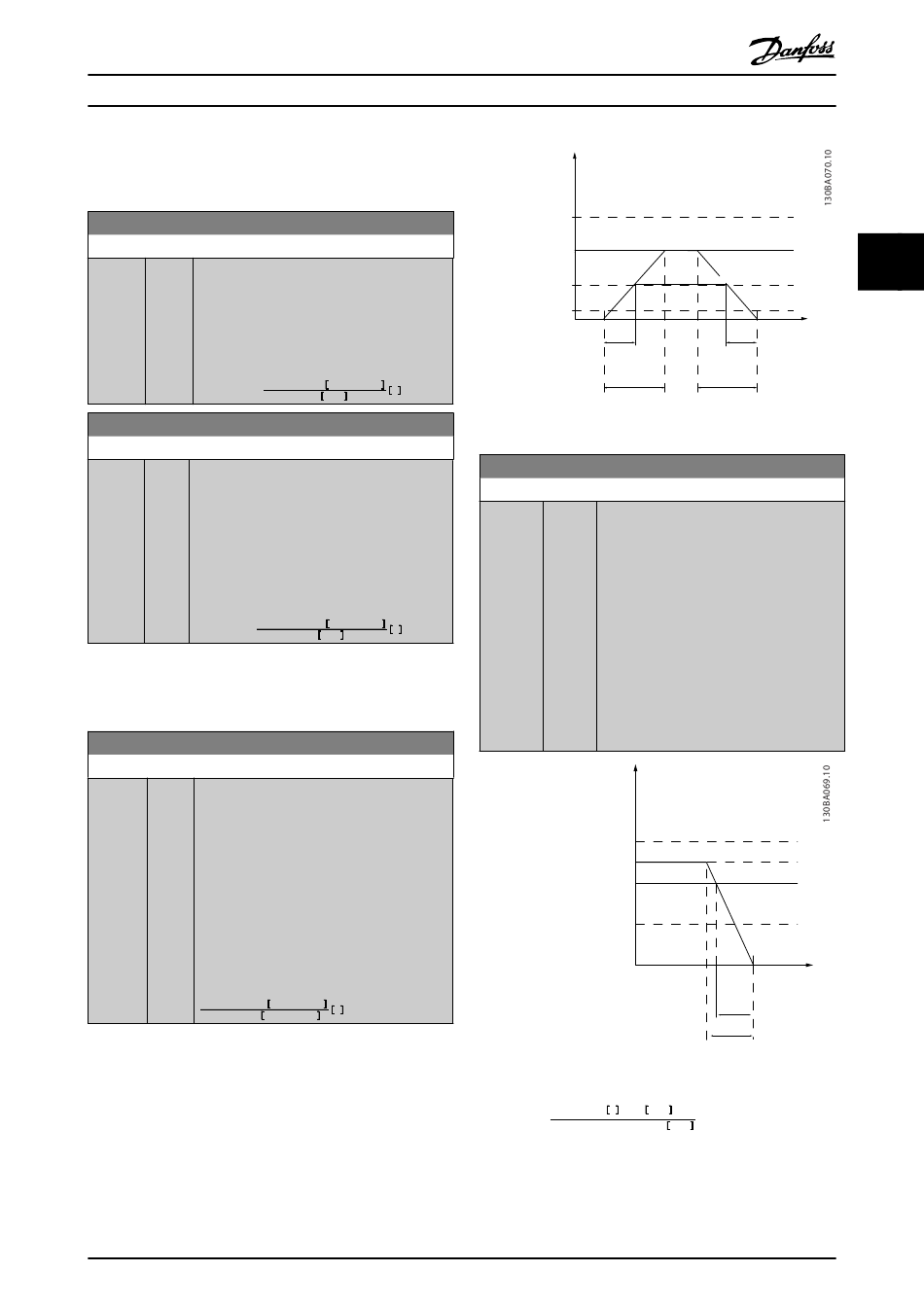

3.5.4 3-5* Ramp 2
Choosing ramp parameters, see parameter group 3-4*.
3-51 Ramp 2 Ramp Up Time
Range: Function:
Size [ 1.00 Enter the ramp-up time, i.e. the acceleration
related - 3600 time from 0 RPM to 1-25 Motor Nominal Speed.
*
s] Choose a ramp-up time such that the output
current does not exceed the current limit in
4-18 Current Limit during ramping. See ramp-
down time in 3-52 Ramp 2 Ramp Down Time.
par . 3 − 51 =
3-52 Ramp 2 Ramp Down Time
Range: Function:
Size Enter the ramp-down time, i.e. the deceleration
related [ 1.00 time from 1-25 Motor Nominal Speed to 0 RPM.
*
- 3600 Choose a ramp-down time such that no over-
s] voltage arises in the inverter due to
regenerative operation of the motor, and such
that the generated current does not exceed
the current limit set in 4-18 Current Limit. See
ramp-up time in 3-51 Ramp 2 Ramp Up Time.
tdec × nnom par . 1 − 25
par .3 − 52 =
3.5.5 3-8* Other Ramps
Configure parameters for special ramps e.g. Jog.
3-80 Jog Ramp Time
Range: Function:
Size [1 - Enter the jog ramp time, i.e. the acceleration/
related 3600 deceleration time between 0 RPM and the
*
s] rated motor speed (n
Nominal Speed). Ensure that the resultant
output current required for the given jog
ramp time does not exceed the current limit
in 4-18 Current Limit. The jog ramp time starts
upon activation of a jog signal via the control
panel, a selected digital input, or the serial
communication port.
par . 3 − 80 =
tjog × nnom par . 1 − 25
jog speed par . 3 − 19
®
