How to Programme
cation. When a start signal is applied on the control
terminals and/or the bus, the frequency converter will
start. The key can be selected as [1] Enable or [0] Disable
via 0-42 [Auto on] Key on LCP.
NOTE
An active HAND-OFF-AUTO signal via the digital inputs has
higher priority than the control keys [Hand On] [Auto On].
[Reset] is used for resetting the frequency converter after
an alarm (trip). It can be selected as [1] Enable or [0]
Disable via 0-43 [Reset] Key on LCP.
2.1.3 Quick Transfer of Parameter Settings
between Multiple Frequency
Converters
Once the set-up of a frequency converter is complete, we
recommend that you store the data in the LCP or on a PC
via MCT 10 Set-up Software Tool.
Quick
Status
Menu
OK
On
Warn.
Alarm
Hand
O
on

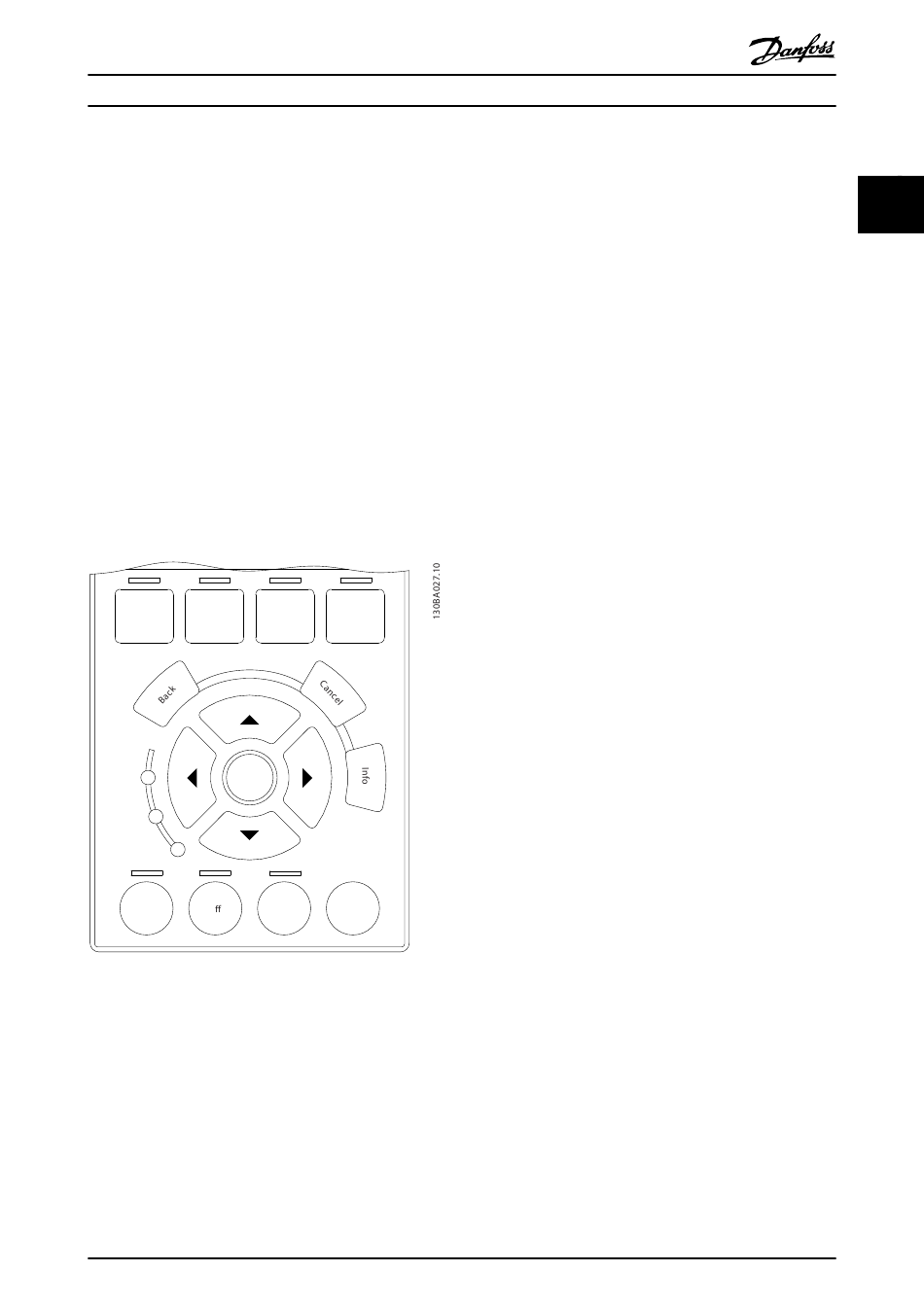

Illustration 2.18
Data storage in LCP
1. Go to 0-50 LCP Copy
2. Press the [OK] key
3. Select "All to LCP"
4. Press the [OK] key
All parameter settings are now stored in the LCP indicated
by the progress bar. When 100% is reached, press [OK].
®
VLT Refrigeration Drive Programming Guide
Alarm
Main
Log
Menu
Auto
Reset
on
®
MG16H102 - VLT is a registered Danfoss trademark
NOTE
Stop the motor before performing this operation.
Connect the LCP to another frequency converter and copy
the parameter settings to this frequency converter as well.
Data transfer from LCP to frequency converter
1. Go to 0-50 LCP Copy
2. Press the [OK] key
3. Select "All from LCP"
4. Press the [OK] key
The parameter settings stored in the LCP are now
transferred to the frequency converter indicated by the
progress bar. When 100% is reached, press [OK].
NOTE
Stop the motor before performing this operation.
2.1.4 Parameter Set-Up
The frequency converter can be used for practically all
assignments, thus offering a significant number of
parameters. The series offers a choice between two
programming modes - the Quick Menu mode and the
Main Menu mode.
The latter provides access to all parameters. The former
takes the user through a few parameters making it
possible to program the majority of ADAP-KOOL Drive FCR
103 applications.
Regardless of the mode of programming, parameters can
be changed in both Quick Menu mode and in Main Menu
mode.
2.1.5 Quick Menu Mode
Parameter Data
The graphical display (GLCP) provides access to all
parameters listed under the Quick Menus. To set
parameters using the [Quick Menu] key - enter or change
parameter data or settings in accordance with the
following procedure:
1. Press Quick Menu button
▲ ▼
2.
Press [ ] and [ ] to find the parameter you want
to change
3. Press [OK]
▲ ▼
4.
Press [ ] and [ ] to select the correct parameter
setting
5. Press [OK]
6. To move to a different digit within a parameter
◀
setting, press [ ] and [
▶
]
