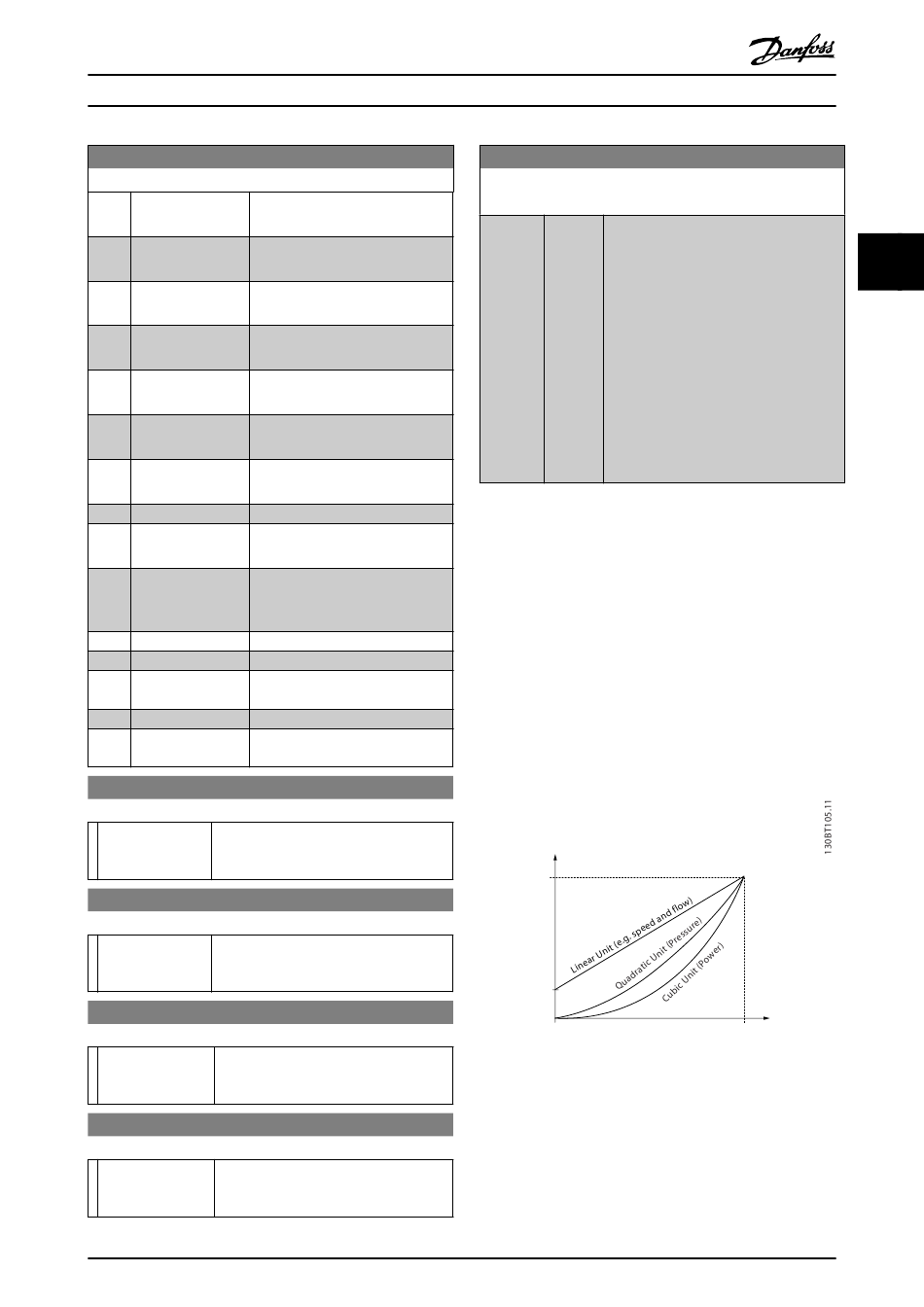

Danfoss VLT FC 103 Programming Manual page 32

Parameter Description
0-20 Display Line 1.1 Small
Option: Function:
[2137] Ext. 2 Reference The value of the reference for
[Unit] extended Closed Loop Controller 2
[2138] Ext. 2 Feedback The value of the feedback signal for
[Unit] extended Closed Loop Controller 2
[2139] Ext. 2 Output [%] The value of the output from
extended Closed Loop Controller 2
[2157] Ext. 3 Reference The value of the reference for
[Unit] extended Closed Loop Controller 3
[2158] Ext. 3 Feedback The value of the feedback signal for
[Unit] extended Closed Loop Controller 3
[2159] Ext. 3 Output [%] The value of the output from
extended Closed Loop Controller 3
[2230] No-Flow Power The calculated No Flow Power for
the actual operating speed
[2316] Maintenance Text
[2580] Pack Status Status for the operation of the
Cascade Controller
[2581] Compressor Status Status for the operation of each
individual pump controlled by the
Cascade Controller
[2587] Inverse Interlock
[2588] Pack capacity [%]
[2827] Discharge
Temperature
[3110] Bypass Status Word
[3111] Bypass Running
Hours
0-21 Display Line 1.2 Small
Option: Function:
Application Select a variable for display in line 1,
Dependent middle position. The options are the same
as listed for 0-20 Display Line 1.1 Small.
0-22 Display Line 1.3 Small
Option: Function:
Application Select a variable for display in line 1, right
Dependent position. The options are the same as
listed for 0-20 Display Line 1.1 Small.
0-23 Display Line 2 Large
Option: Function:
Application Select a variable for display in line 2. The
Dependent options are the same as listed for
0-20 Display Line 1.1 Small.
0-24 Display Line 3 Large
Option: Function:
Application Select a variable for display in line 3. The
Dependent options are the same as listed for
0-20 Display Line 1.1 Small.
®
VLT Refrigeration Drive Programming Guide
0-25 My Personal Menu
Array [20]
Range:
Size
related
3.2.3 0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes: *Custom Readout. Value proportional to speed
(Linear, squared or cubed depending on unit selected in
0-30 Custom Readout Unit) *Display Text. Text string stored
in a parameter.
Custom Readout
The calculated value to be displayed is based on settings
in 0-30 Custom Readout Unit, 0-31 Custom Readout Min
Value (linear only), 0-32 Custom Readout Max Value,
4-13 Motor Speed High Limit [RPM], 4-14 Motor Speed High
Limit [Hz] and actual speed.
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Liniar
units only
P 0-31
Illustration 3.3
®
MG16H102 - VLT is a registered Danfoss trademark
Function:
[0 - Define up to 20 parameters to appear in
9999 ] the Q1 Personal Menu, accessible via the
*
[Quick Menu] key on the LCP. The
parameters will be displayed in the Q1
Personal Menu in the order they are
programmed into this array parameter.
Delete parameters by setting the value to
'0000'.
For example, this can be used to provide
quick, simple access to just one or up to
20 parameters which require changing on
a regular basis (e.g. for plant maintenance
reasons) or by an OEM to enable simple
commissioning of their equipment.
0
3
Motor Speed
Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
31
3
